• Model NO.：QD
• Main Girder Form：Double Girder
• Type：Bridge Crane
• Weight Overload Protection Device：Include
• Voltage Lower Protection Function：Include
• GB/T 24001-2004 Idt ISO14001: 2004：Pass
• Sandblast：Could Supply
• GB/T 19001-2000 Idt ISO 9001: 2000：Pass
• Limited Switch：Include
• Painting Color：According to Your Demand
• Current Overload Protection System：Include
• GB/T 28001-2001, OHSAS18001: 1999：Pass
• Electric Hoist Double Limit：Include
• Application：Container Usage, Mineral Area Usage
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Installation：Overall Rapid Disassembly
• Transport Package：Packing by Woven Plastic Cloth and Plywood Crate.
• Specification：China National standard
• Trademark：KUANGYUAN
• Origin：Xinxiang, Henan Province
• HS Code：84261120
• Production Capacity：19, 000 Sets,Year

Overview

Product Description

Double beams overhead crane mainly consists of strong bridge beams, trolley-traveling mechanism, crab and electrical appliances, and could be classed into several working duties, for instance: A5, A6 and A7 according to the working frequency and time.

Design and construction rules:
All the standards which is required for the crane is the Chinese standard
Others:
This kind of crane normally controlled in cabin. Standard capacity: 5T, 10T, 16/3.2T, 20/5T, 32/5T, 50/10T, 75/20T, 100/20T, 100/30T, 125/30T, 150/30T, 160/32T, 200/50T, 400/80T, 560/250T.

Our advantages, your RIGHT choice
Our group locates in Xinxiang, China, the home town of cranes in China. Our cranes hold nearly half the Chinese crane market.

Our research and development center cooperate with many famous University and Chinese R&D institution, for example Xi`an Jiaotong University and Tsinghua University, we have advanced technology and the ability to manufacture the best cranes suitable for you.
More than 200 engineers and 3000 employees and over 4000 sets of double beam crane and ladle crane manufacturing enable our quality and in time delivery, choose us choose a better future.

Customization
We can design cranes meets your need, it would be very kind of you to give us the data needed listed below:
1. Lifting capacity.
2. Span length. (cantilever length)
3. Lifting height. (hook center to ground)
4. Power supply: Voltage.
5. Do you need rails? How long is the crane traveling distance?
6. Working condition: Which material to lift? Temprature?

And other kinds of double beams overhead crane as follows:
* LH Model Double Beams Overhead Crane (Light duty type)
* QE Model Double Beams Overhead Crane
* Slab Handing Double Beams Overhead Crane
* Insulating Double Beams Overhead Crane
* Magnet Double Beams Overhead Crane
* Magnet Suspending Double Beams Overhead Crane and so on.

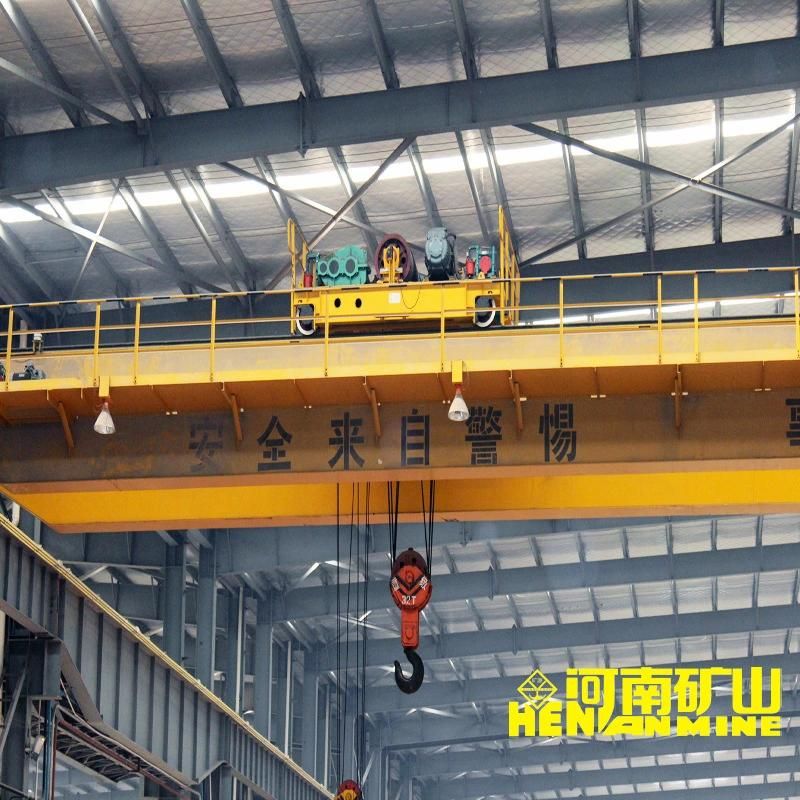

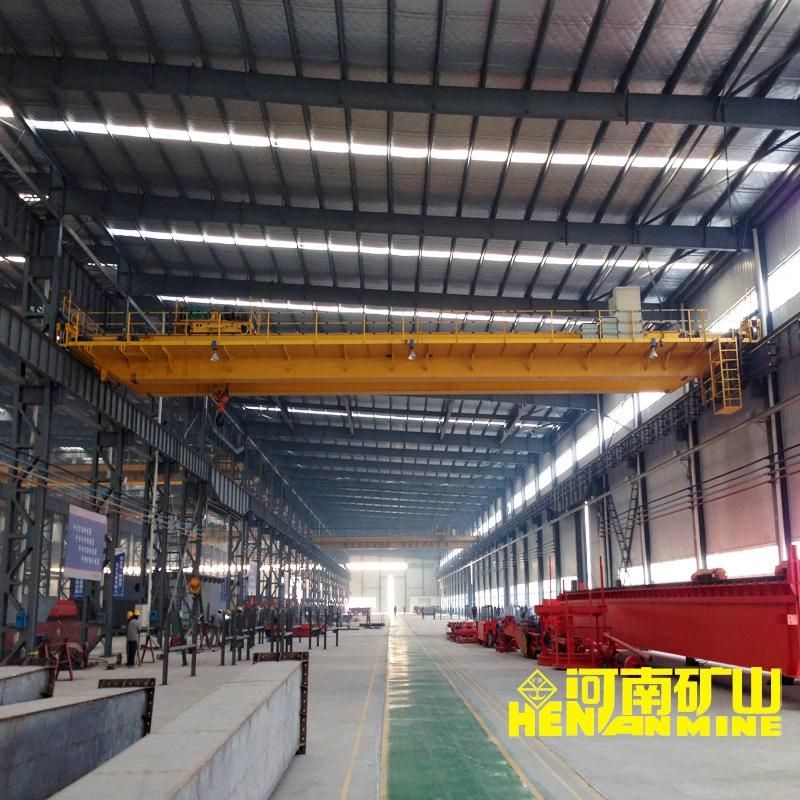

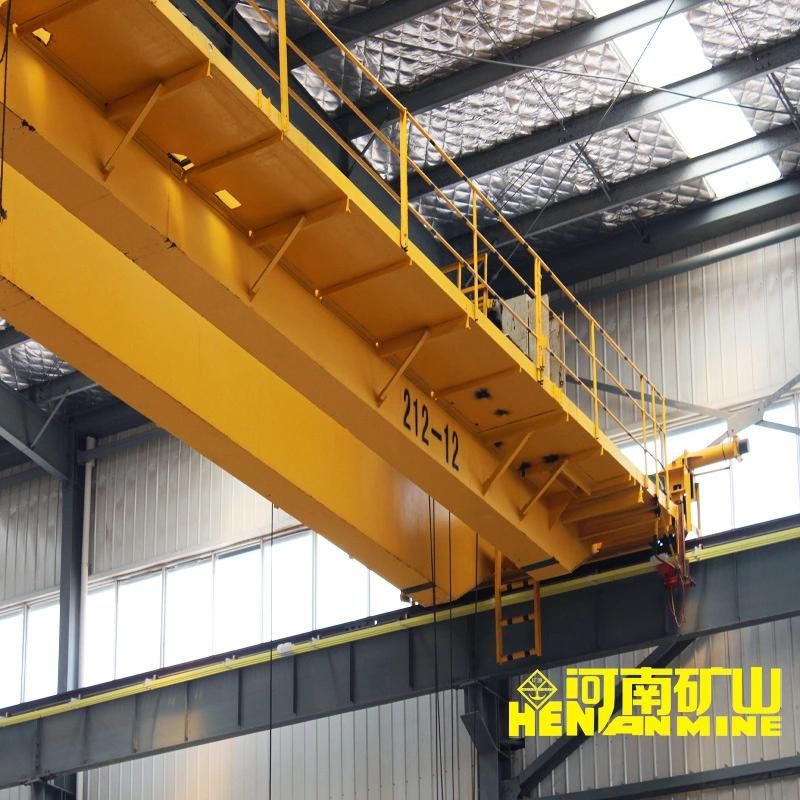

Detailed Photos

Product Parameters

CapacityT1016/320/532/550/10Operational method Cabin controlSpanm10.5-31.5SpeedMainhook LiftingA5
m/min8.57.97.27.55.9A613.31312.39.57.8Aux. hook Lifting 16.719.519.513.2Cross travelling43.844.644.642.438.5Long travellingA5 90.7/91.9/84.784.7/87.684.7/87.687/74.274.6/85.9A6115.6/116.8/112.5112.5/101.4112.5/101.4101.4/101.886.8/87.3MotorLiftingMainA5Type /kwYZR180L-6/17YZR225M-8/26YZR225M-8/26YZR280S-10/42YZR280M-10/55A6 YZR250M1-6/37YZR225M2-6/45YZR280M-8/55YZR315S-8/75AuxiliaryYZR200L-6/22YZR180L-8/13YZR180L-6/17YZR180L-6/17YZR200L-6/26Cross travellingYZR132, 1-6/2× 6.3YZR132M2-6/4YZR132M2-6/4YZR160M-6/6.3YZR160M2-6/8.5Long travellingA5YZR132M2-6/2× 4YZR160M1-6/2× 6.3YZR160M1-6/2× 6.3YZR160M2-6/2× 8.5YZR160L-6/13A6YZR160M1-6/2× 5.5YZR160M2-6/2× 7.5YZR160M2-6/2× 7.5YZR160L-6/2× 11YZR180L-8/13Max. Lifting heightMain hookm1616121612Aux. hook 18141816Working duty A5, A6Power supply 380V 50HZ 3phase AC (As your demand)

Company Profile

Our Advantages

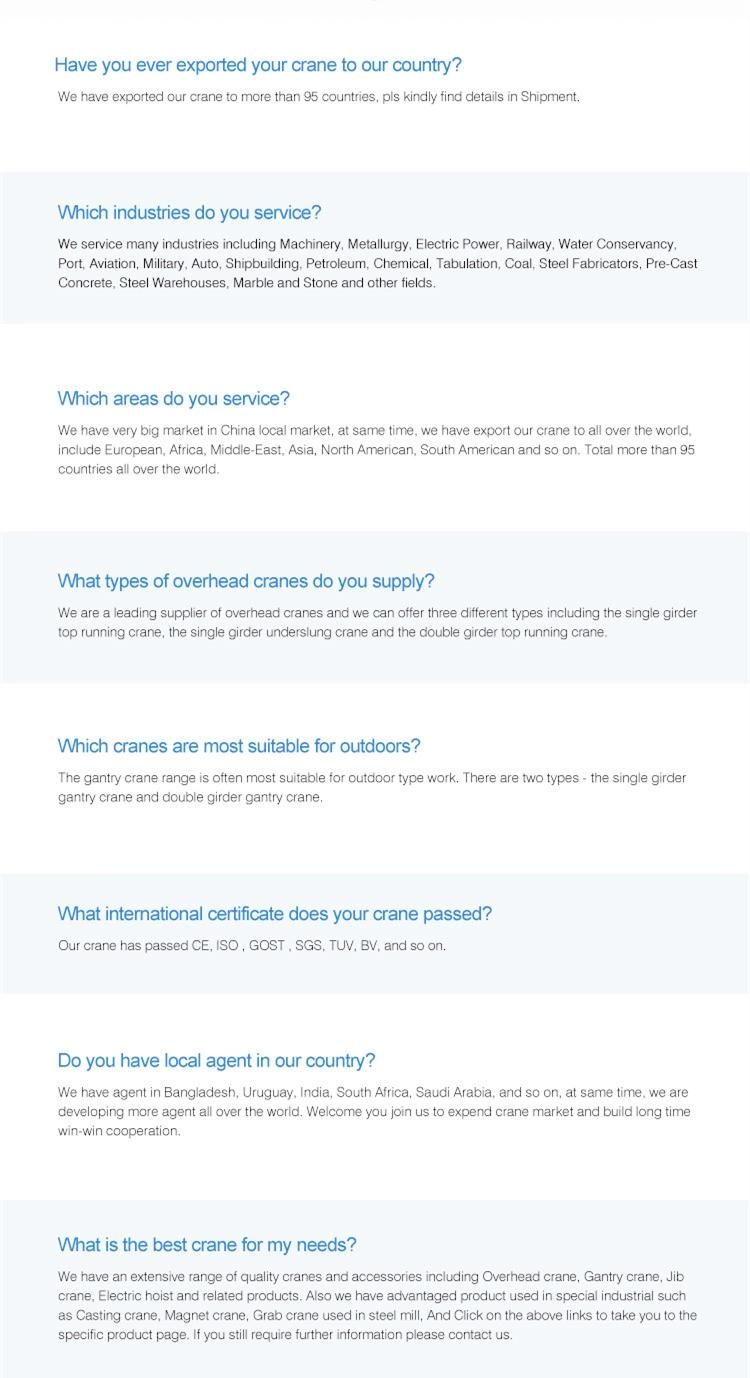

FAQ
