Crane Boom Arm Truck with Cheapest Price Zoomlion Zcc750h-1
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Max. Lifting Height：30-80 M
- Rated Loading Capacity：75ton
- Certification：ISO9001, CE, RoHS, BV
- Condition：New
- Warranty：1 Year
- Max. Lifting Capacity * Radius：55*3.7(T * M)
Base Info
- Model NO.：ZCC750H-1
- Max. Lifting Capacity on Fixed Jib：75(T)
- Max. Lifting Capacity of Luffing Jib：6.5(T)
- Main Boom Length：13-58(M)
- Fixed Jib Length：9-18(M)
- Max. Swing Speed：2.4r,Min
- Max. Travel Speed：1.2km,H
- Max. Grade-Ability：30%
- Mean Ground Pressure：0.087MPa
- Engine Output Power：200kw
- Transport Package：Nude Package
- Specification：12.6* 3.32*3.23m
- Trademark：ZOOMLION
- Origin：China
- HS Code：84295212
- Production Capacity：10000 Units,Month
Description
Item
Unit
Parameter
Max.rated lifting capacity
Basic boom
t
75
Fixed jib
t
6.5
Max. load moment
kN-m
2744
Main boom length
m
13-58
Main boom Luffing angle
°
30-80
Fixed jib length
m
9-18
Winch max. single line speed( no load,at 5th layer)
m/min
120
Boom luffing gear max. single line speed( at 1th layer)
m/min
57
Max. swing speed
r/min
2.4
Max. travel speed
km/h
1.2
Max. grade-ability
%
30
Mean ground pressure
MPa
0.087
Engine output power
kW
200
Gross vehicle mass (including main hook block and 13m boom)
t
61
Max. weight of single unit in travel configuration
t
39
Max. dimension of single unit in travel configuration (L×W×H)
m
12.6×3.32×3.23

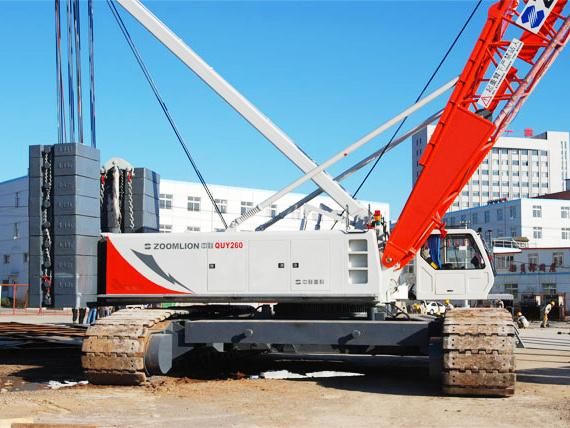

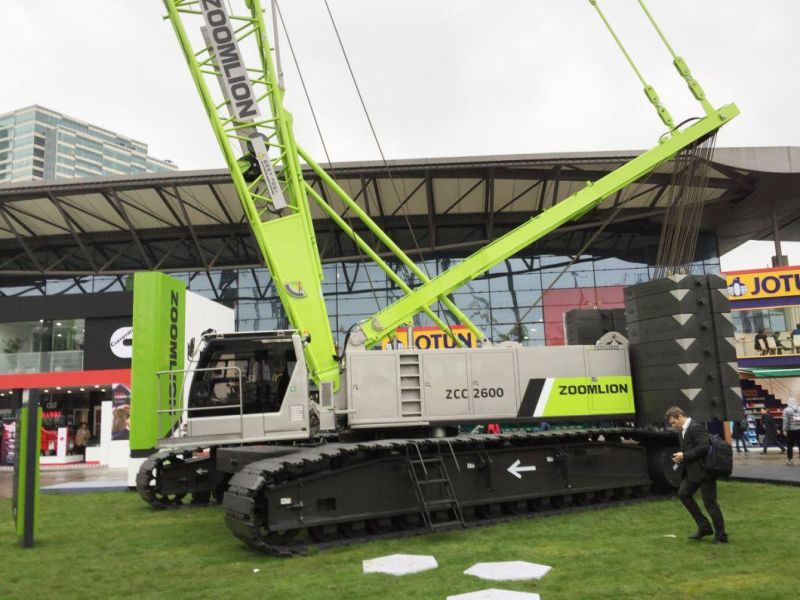

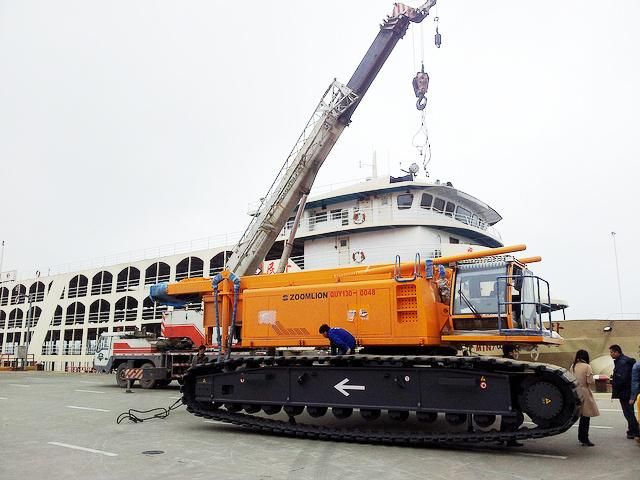

Product Show
