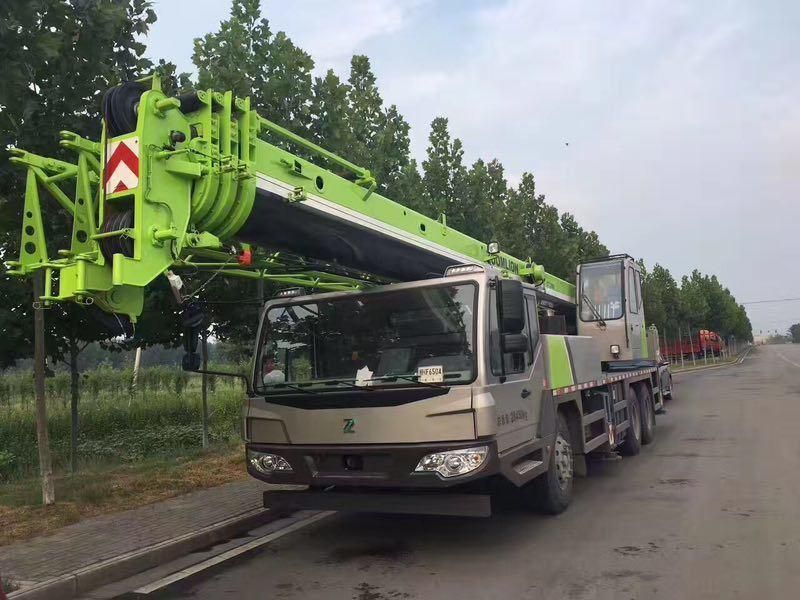

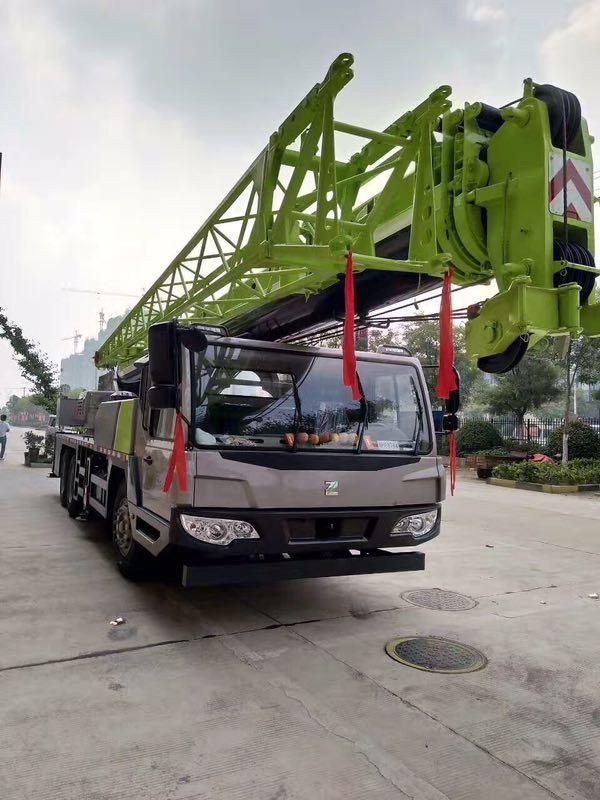

China Top Brand Zoomlion Lifting Machinery Truck Crane Ztc251V451
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Certification：CE
- Condition：New
- Maximum Lifting Height：25-30m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Three-Arm
Base Info
- Model NO.：ZTC251V451
- Type：Straight Arm
- Max. Rated Lifting Capacity：30000kg
- Max. Load Moment of Basic Boom：990kn.M
- Max. Lifting Height of Jib：50m
- Max. Gradeability：42%
- Jib Length：8m
- Transport Package：Nude Packing
- Specification：13300*2750*3650mm
- Trademark：non
- Origin：China
- HS Code：87051092
- Production Capacity：1000 Unit Per Year
Description
Item
Unit
Value
Remarks
Working performance
Max. rated lifting capacity
kg
25000
Max. load moment of basic boom
kN.m
1029
Max. load moment of main boom(fully extended)
kN.m
564
Max. load moment of basic boom
m
11.1
Max. lifting height of main boom
m
40.5
These parameters do not include deflection of main boom and jib
Max. lifting height of jib
m
48.5
Working speeds
Max. hoist rope speed(Main winch)
m/min
120
At the 4th layer
Max. hoist rope speed(Auxiliary winch)
m/min
100
At the 2nd layer
Boom
demrricking up time
s
40
Boom
demrricking up time
s
80
Slewing speed
r/min
0 -2.2
Driving parameters
Max. driving speed
km/h
78
Max. gradeability
%
37
Turning diameter
m
≤22
Min. ground clearance
mm
235
Oil consumption per hundred kilometers
L
35
Mass
Deadweight in driving condition
kg
32400
Complete
vehicle kerb mass
kg
32270
Front axle load
kg
6500
Rear axle load
kg
25900
Dimensions
Overall dimensions(L×W×H)
mm
13000×2550×3500
Outrigger spread(L)
m
5.36
Outrigger spread(W)
m
Fully extended:6.1,
Intermediately extended:4.2
Tail slewing radius
mm
3385
Main boom length
m
10.6 - 40.0
Boom angle
°
-2 - 80
jib length
m
8.0
Offset
°
5,17,30
