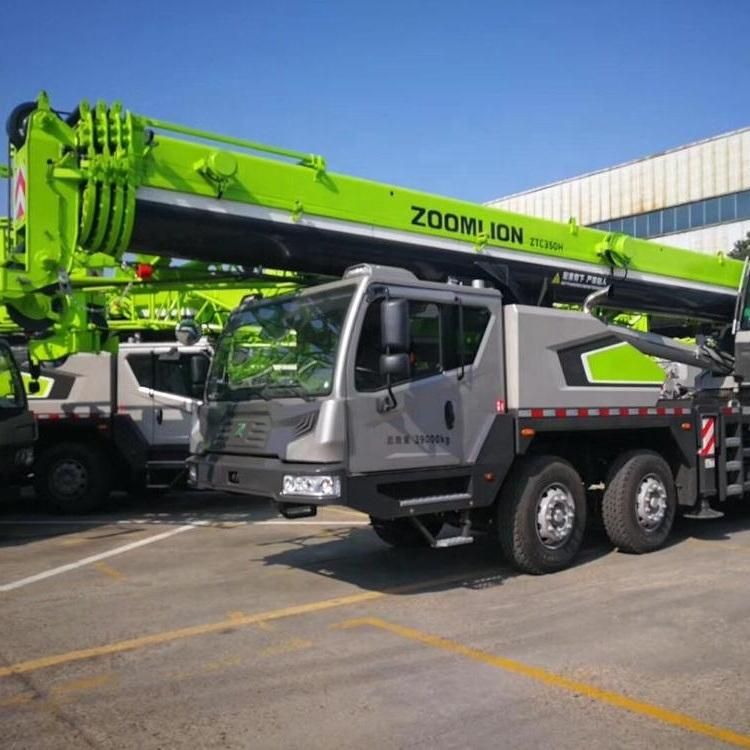

Zoomlion High Quality 35t Truck-Mounted Crane with Foldable Arm Ztc350e552
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Certification:CE
- Condition:New
- Maximum Lifting Height:25-30m
- Maximum Lifting Weight:>16t
- Shaft Number:3
- Crane Jib:Three-Arm
Base Info
- Model NO.:ZTC350E552
- Type:Straight Arm
- Max. Rated Lifting Capacity:30000kg
- Max. Load Moment of Basic Boom:990kn.M
- Max. Lifting Height of Jib:50m
- Max. Gradeability:42%
- Jib Length:8m
- Transport Package:Nude Packing
- Specification:15400*3000*3950
- Trademark:non
- Origin:China
- HS Code:87051092
- Production Capacity:1000 Unit Per Year
Description
Working performanceMax. rated lifting capacity kg 35000 Max. load moment of basic boom kN.m 1132 Max. load moment of main boom(fully extended) kN.m 617.5 Max. load moment of basic boom m 11.1 Max. lifting height of main boom m 44 The parameters do not include deflection of main boom and jib Max. lifting height of jib m 60 Working speeds Max. hoist rope speed(Main winch) m/min 120 At the 4th layer Max. hoist rope speed(Auxiliary winch) m/min 100 At the 2nd layer Boom demrricking up time s 40 Boom demrricking up time s 80 Slewing speed r/min Driving
parameters Max. driving speed km/h 78 Max. gradeability % 37 Min turning diameter m ≤22 Min. ground clearance mm 220 Oil consumption per hundred kilometers L 35 Mass Deadweight in driving condition kg 32000 Complete vehicle kerb mass kg 31870 Front axle load kg 7000 Rear axle load kg 25000 Dimensions Overall dimensions(L×W×H) mm 12900×2500×3465 Longitudinal distance between outriggers m 5.36 Transversal distance between outriggers m Fully extended:6.10 m
Intermediately extended:4.20 m Tail slewing radius mm 3385 Main boom length m 10.6 - 40.0 Boom angle ° -2 - 80 jib length m 8.0 Offset ° 0,30
0 - 2.2
parameters
Intermediately extended:4.20 m
