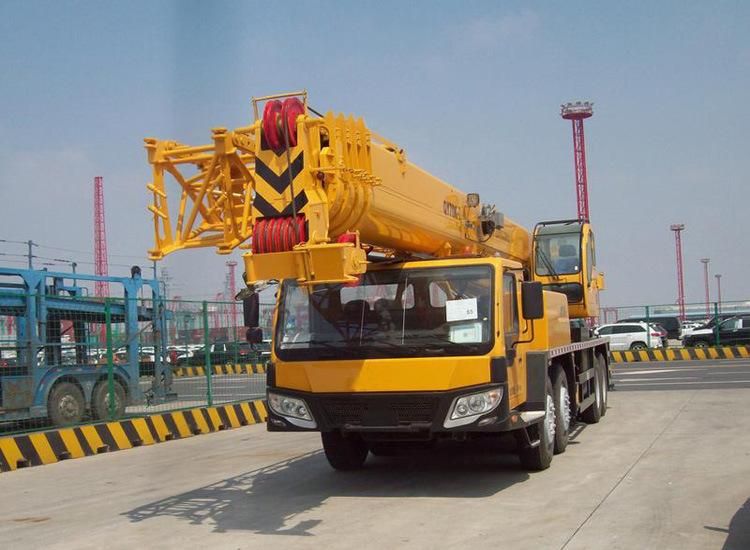

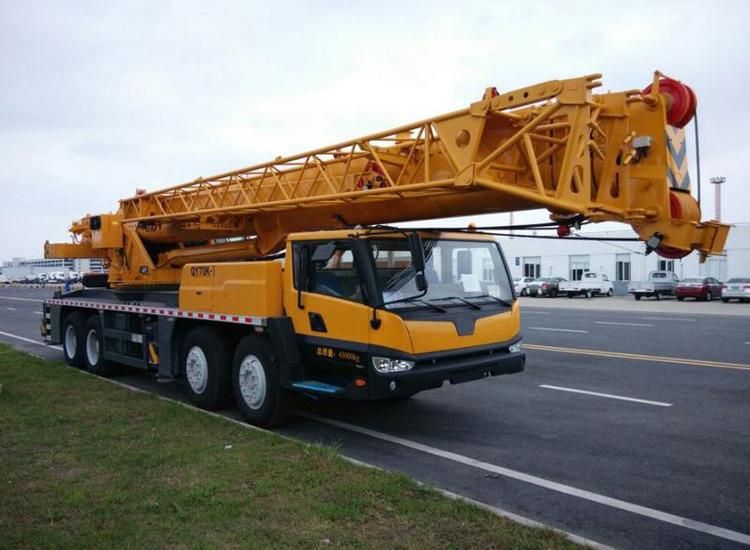

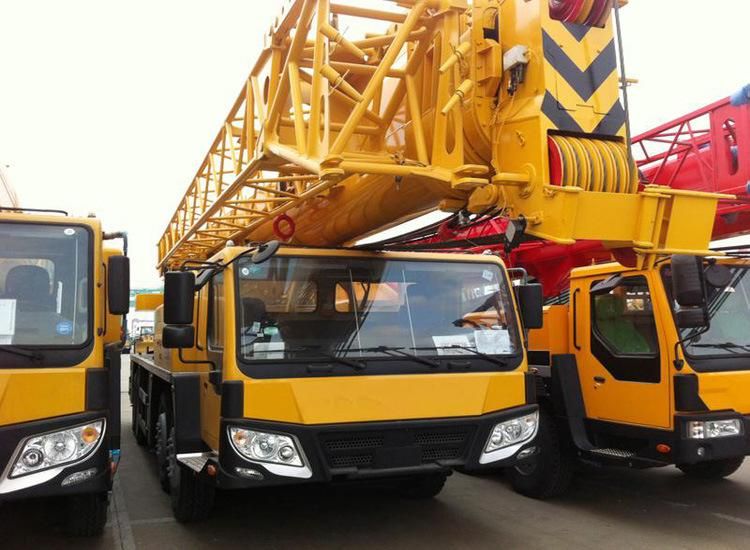

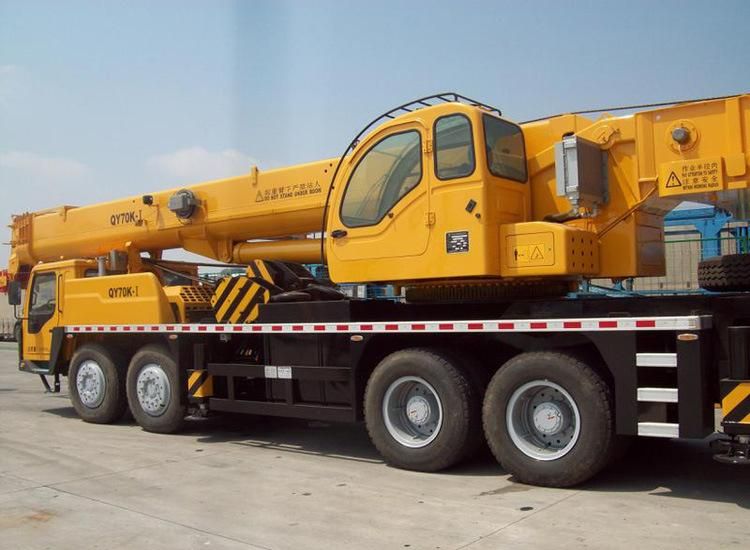

Factory Qy70K-I Pickup Truck Crane with Cable Winch
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：4
- Crane Jib：Five-Arm
Base Info
- Model NO.：QY70K-I
- Type：Straight Arm
- Total Mass in Travel State：43000kg
- Engine Model：D10.38A-40
- Fuel Consumption for 100km：40L
- Engine Rated Output：276,2200kw,(R,Min)
- Engine Rated Torque：1500,1400 N.M, (R,Min)
- Max. Travel Speed：80km,H
- Max. Total Rated Lifting Capacity：70t
- Base Boom Length：>11.6m
- Transport Package：Nude Packing
- Specification：13930*2800*3575mm
- Trademark：XC. MG
- Origin：China
- HS Code：8429119000
- Production Capacity：1000,Year
Description
Main performance parameterMaximum rated total suspended loadt50Minimum working rangem3Turning radius of rotary tablemm3800Maximum load momentBase boomkN.m2009Full-extend boomkN.m1129Outrigger spanLength wise directionm6.1landscape orientationm7.1Lifting heightBase boomm11.9Full-extend boomm44Full-extend boom+ jibm58.1Boom lengthBase boomm11.4Full-extend boomm43.5Full-extend boom+ jibm59.5Offset angle of jib°0,15,30Working speed parameterTime of boom derrickingRise booms40Failing booms180Boom telescopic timeFully extendeds90Fully retracteds180Maximum turning speedr/min2Contraction time of landing legHorizontal landing legStretching at the same times35Shortening at the same times30Vertical landing legStretching at the same times40Shortening at the same times35Main lifting structureFull loadm/min85Empty loadm/min130Auxiliary lifting structureFull loadm/min85Empty loadm/min130NoiseRadiation outside the machinedB(A)≤122Driver seatsdB(A)≤90
• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• The working condition expands twice. Newly add 5t counterweight.
• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.
• The working condition expands twice. Newly add 5t counterweight.
