• Model NO.：ZCC550H
• Type：Folding
• Max. Lifting Capacity on Fixed Jib：5.5t
• Max. Lifting Capacity of Luffing Jib：12t
• Main Boom Length：13-52m
• Slewing Speed：0-2.1
• Max. Gradeability：30
• Deadweight：50.5t
• Crane Counterweight：17.5t
• Transport Package：13000*4600(3120)*3180mm
• Specification：13000*4600(3120)*3180mm
• Trademark：Zoomlion
• Origin：China
• HS Code：8426990000
• Production Capacity：1000units,Year

ItemUnitValueRemarksMax. lifting capacity × radiust × m55×3.7 Max. lifting capacity on fixed jibt5.5 Max. lifting capacity of luffing jibt12 Main boom lengthm13 - 52 Fixed jib lengthm6 - 15 Max. length of main boom with fixed jibt43+15 Luffing jib lengthm16m-28m Max. main boom +max. luffing jibm40mm+28mm Derricking angle.30 - 80 Fixed jib angle.10,30 Max. rope  speed
of winchesHoisting winch 1m/min125/100With optional free-fall functionHoisting winch 2125 Derricking winch80 Slewing speedrpm

0-2.1

 Traveling speedkm/h0-1.6 Max. gradeability%30With basic boom and counterweight over frontGround pressureMpa0.068 Deadweightt50.5With basic boomCrane counterweightt17.5 Overall dimensions(L × W × H)m12800×4600(3300)×3120With A-frame and main boom pivot sectionEngineModel WP6G190E26Manufacturer:Weichai Power CO, Ltd.Rated power / rotational speedkW/r/min140/1900Max. output torque /rotational speedNm/r/min830/1300Exhaust emission National Stage2The distance between track center × crawler contact length × crawler widthmm2540 ×5000×760Crawler carrier retracted3840 ×5000×760Crawler carrier extended Noiselevel outside operator's cab during operation(dB)≤107 Noise level in operator's cab during operation≤85

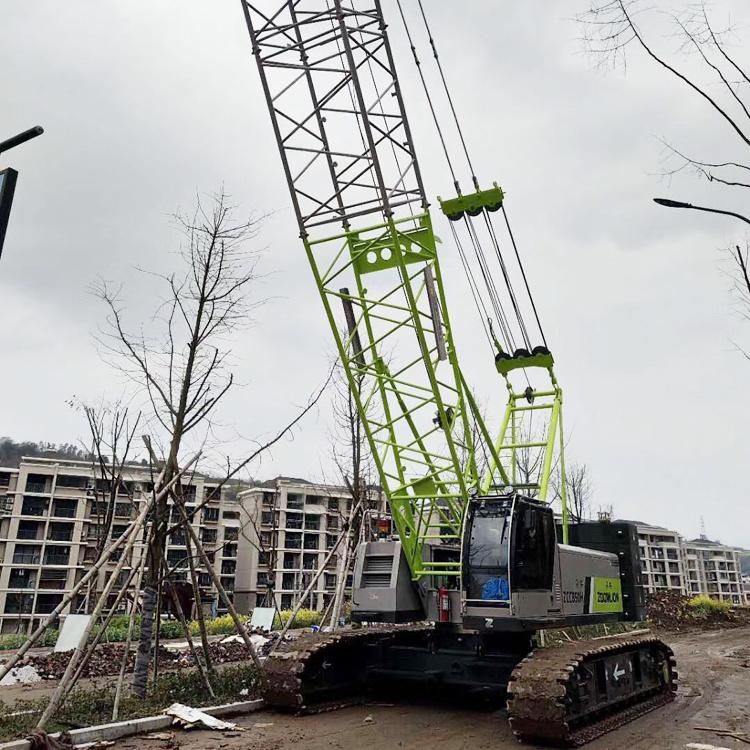

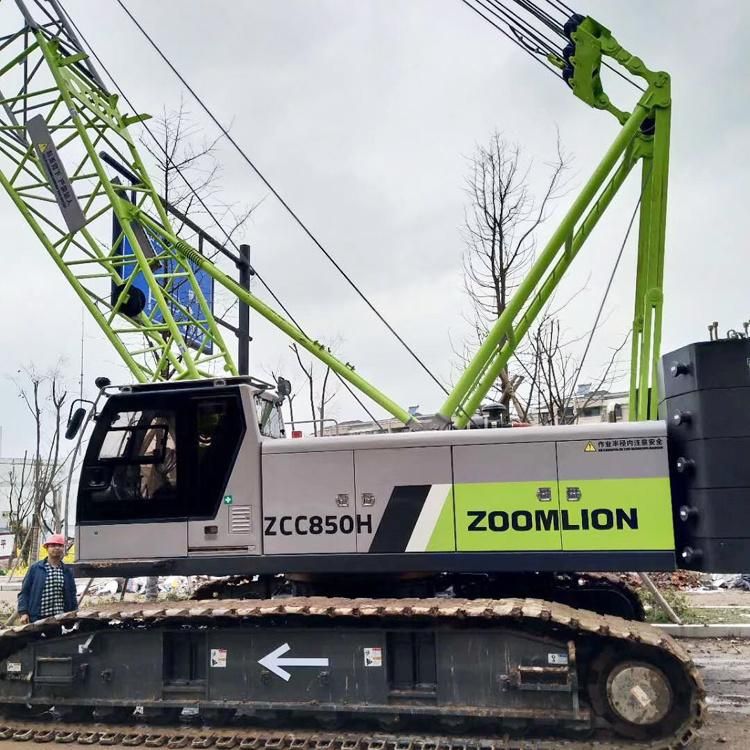

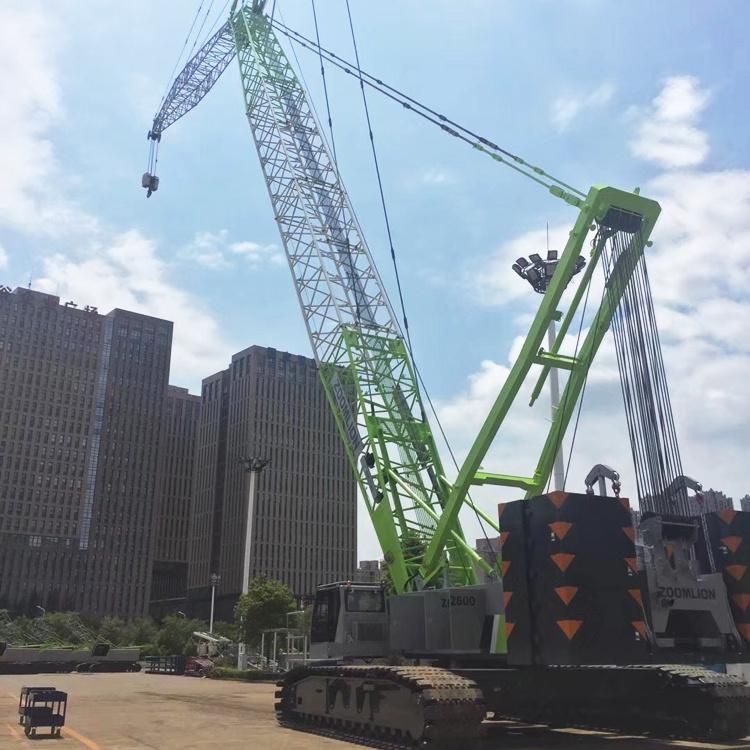

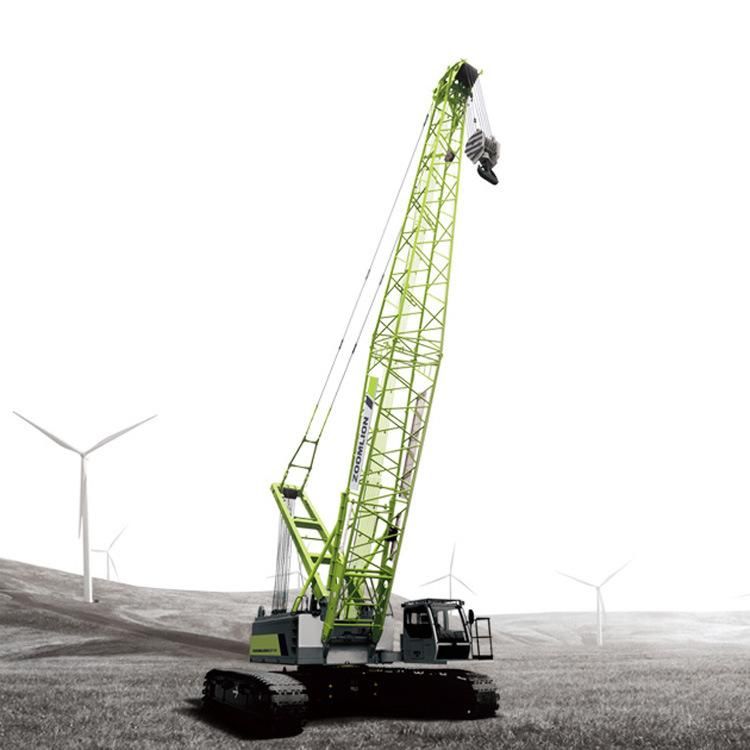

Detailed Images
