• Model NO.：ZCC800H
• Type：Folding
• Max. Lifting Capacity on Fixed Jib：7
• Max. Lifting Capacity of Luffing Jib：15
• Main Boom Length：13-58m
• Fixed Jib Length：6-18m
• Luffing Jib Length：16-34m
• Derricking Angle：30-80
• Transport Package：13500*5000 (3400)*3200mm
• Specification：13500*5000 (3400)*3200mm
• Trademark：Zoomlion
• Origin：China
• HS Code：8426990000
• Production Capacity：1000units,Year

ItemUnitValueRemarksMax. lifting capacity ×    radiust × m80×4 Max. lifting capacity on    fixed jibt7 Max. lifting capacity of    luffing jibt15 Main boom lengthm13 - 58 Fixed jib lengthm6 - 18 Max. length of main boom    with fixed jibt49+18 Luffing jib lengthm16m-34m Max. main boom +max.    luffing jibm43.5m+34m Derricking angle.30 - 80 Fixed jib angle.10, 30 Max. rope  speed
     of winchesHoisting winch 1m/min125/110With optional free-fall functionHoisting winch 2125 Derricking winch93 Slewing speedrpm

0-2

 Traveling speedkm/h0-1.57 Max. gradeability%30With basic boom and    counterweight over frontGround pressureMpa0.083 Deadweightt72.8With basic boomCrane counterweightt27 Overall dimensions(L × W    × H)m13500×5000 (3400) ×3200With A-frame and main    boom pivot sectionEngineModel WP10.270N

Weichai  Power

Rated power / rotational    speedkW/r/min199/1900 Max. output torque    /rotational speedNm/r/min1270/1200-1500 Exhaust emission National Stage2 Distance between track    center × crawler contact length × crawler widthmm2600 ×5440×800Crawler carrier    retracted4200 ×5440×800Crawler carrier    extended NoiseNoise level outside operator's    cab during operation(dB)≤107 Noise level in    operator's cab during operation≤79

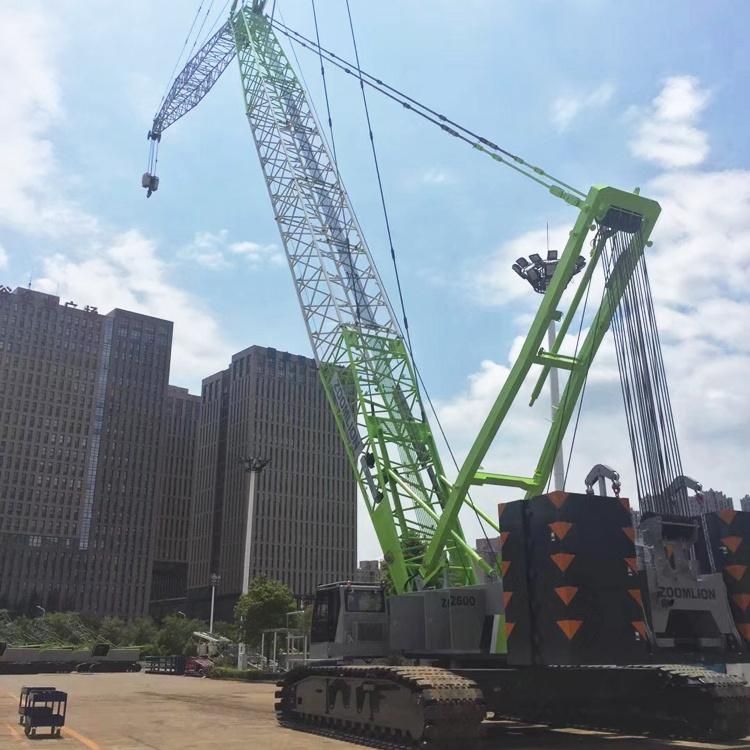

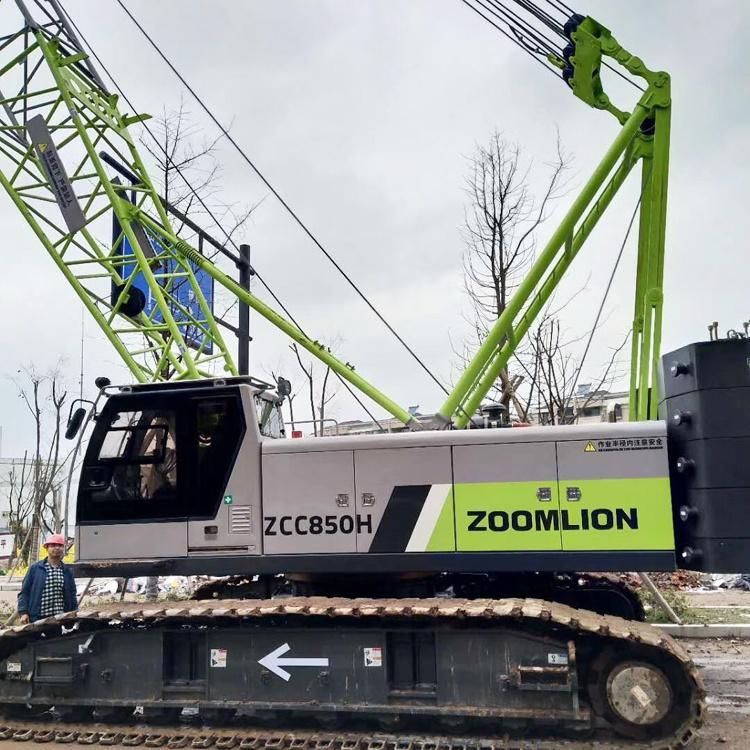

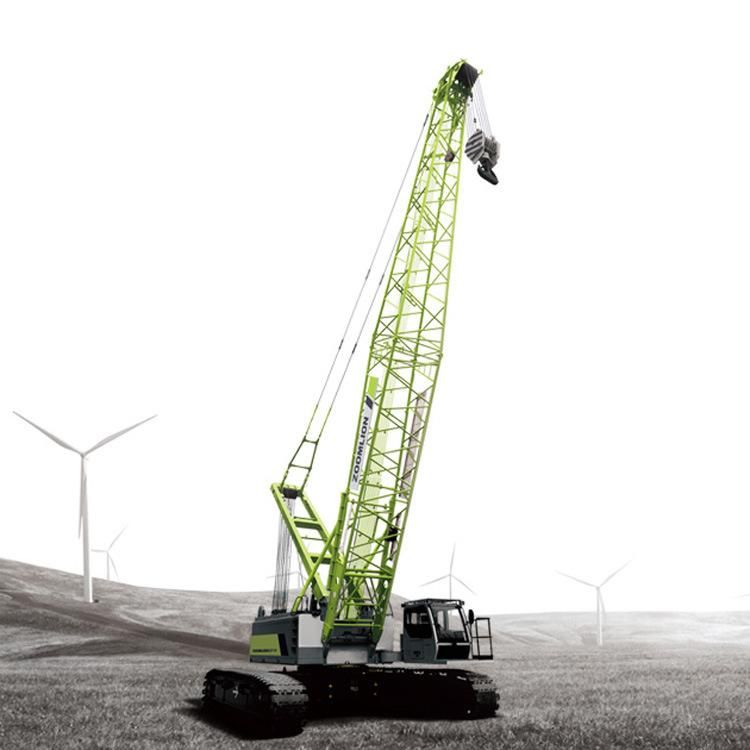

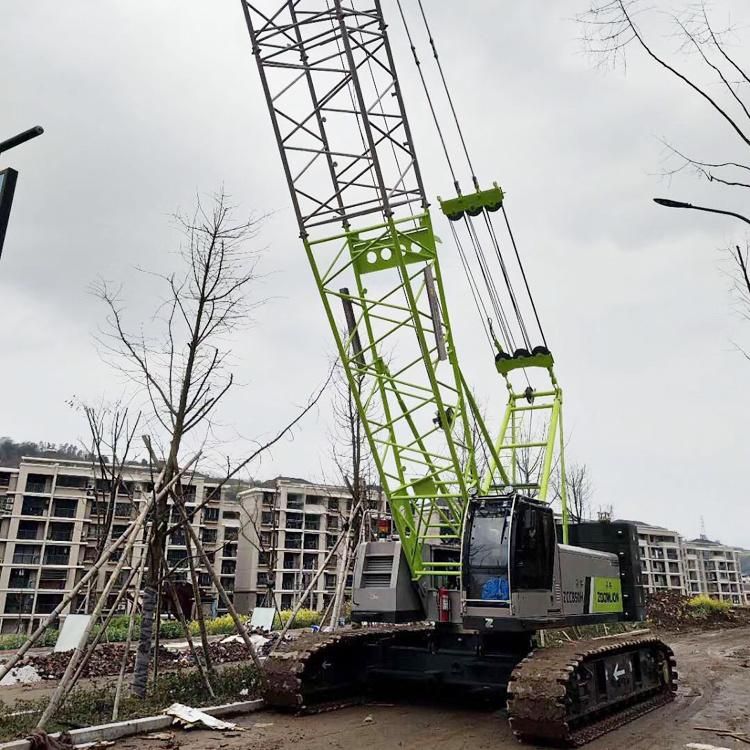

Detailed Images
