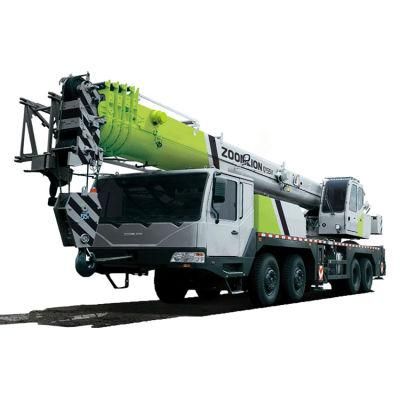

• Model NO.：QY40K
• Type：Straight Arm
• Total Mass in Travel State：40400kg
• Engine Model：Wd615.334
• Fuel Consumption for 100km：46L
• Engine Rated Output：247 , 2200 Kw,(R,Min)
• Engine Rated Torque：1350 , 1400 N.M, (R,Min)
• Max. Travel Speed：75km,H
• Max. Total Rated Lifting Capacity：40t
• Base Boom Length：>10.7m
• Transport Package：Nude Packing
• Specification：13050*2800*3430mm
• Trademark：Zoomlion
• Origin：China
• HS Code：8429119000
• Production Capacity：1000,Year

DimensionUnitQY40KOverall lengthmm13050Overall widthmm≤2800Overall heightmm3430Weight  Total weight in travelkg40400Front axle loadkg14500Rear axle loadkg25900Power  Engine model WD615.334Engine rated powerkW/(r/min)247 / 2200Engine rated torqueN.m/(r/min)1350 / 1400Travel  Max. travel speedkm/h75Min. turning diameterm≤24Min. ground clearancemm285Approach angle°16Departure angle°11Max. grade ability%46Fuel consumption for 100kmL46Main performance  Max. rated total lifting capacityt40Min. rated working radiusmm3000Turning radius at turntable tailm3.482Max. lifting torquekN.m1400Base boomm10.7Fully extended boomm40.1Fully extended boom+ jibm55.1Longitudinal outrigger spanm5.65Lateral outrigger spanm6.6Working speed  Boom luffing times≤88Boom full extension times≤180Max. swing speedr/min≥2.0Max. speed of main winch (single rope)m/min≥110Max. speed of aux. winch (single rope)m/min≥110
