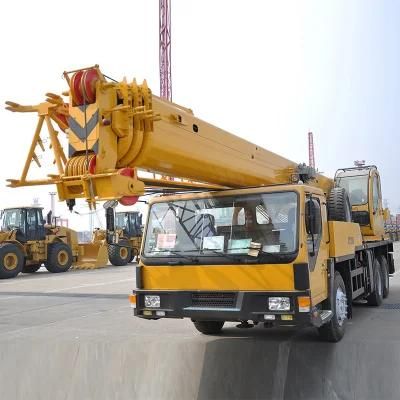

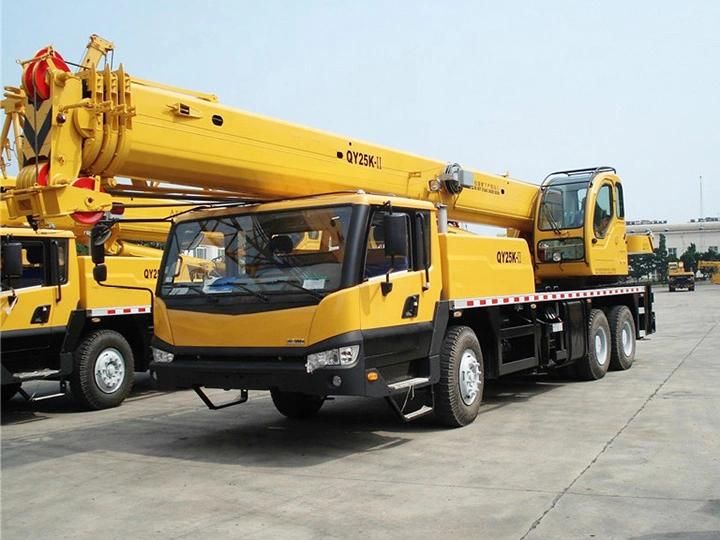

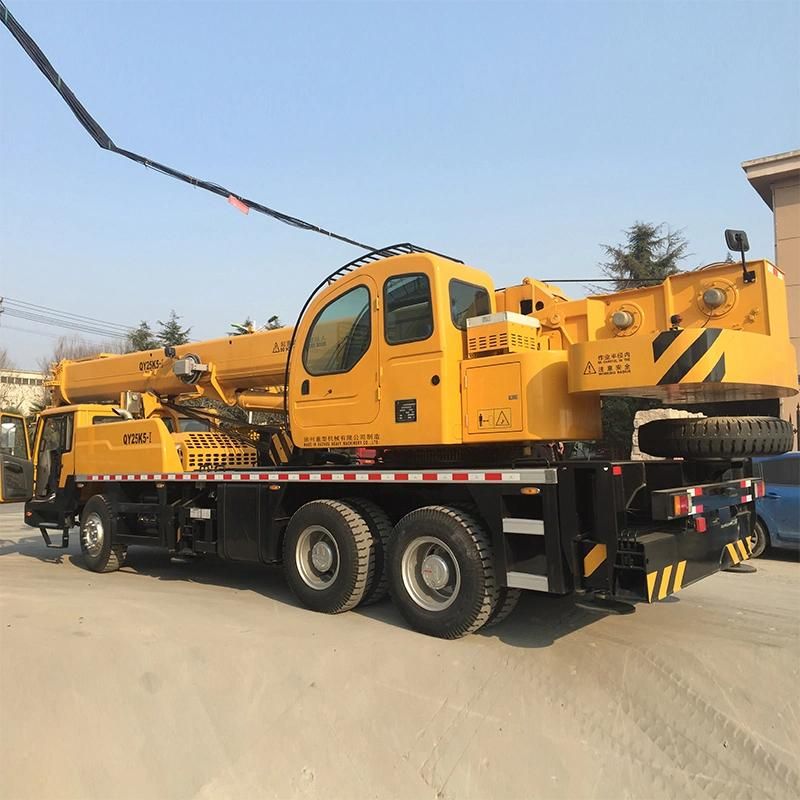

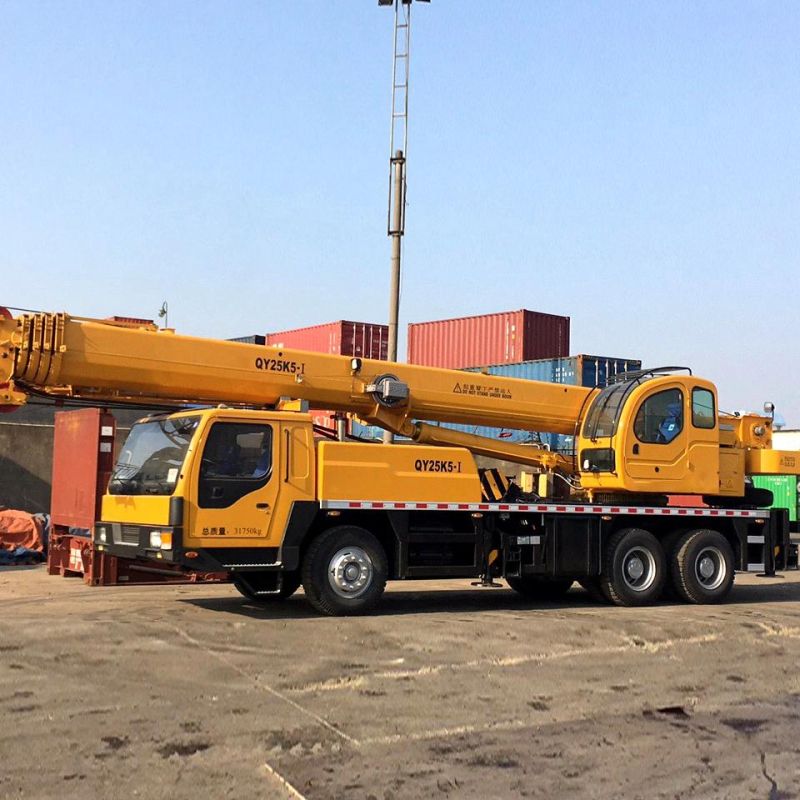

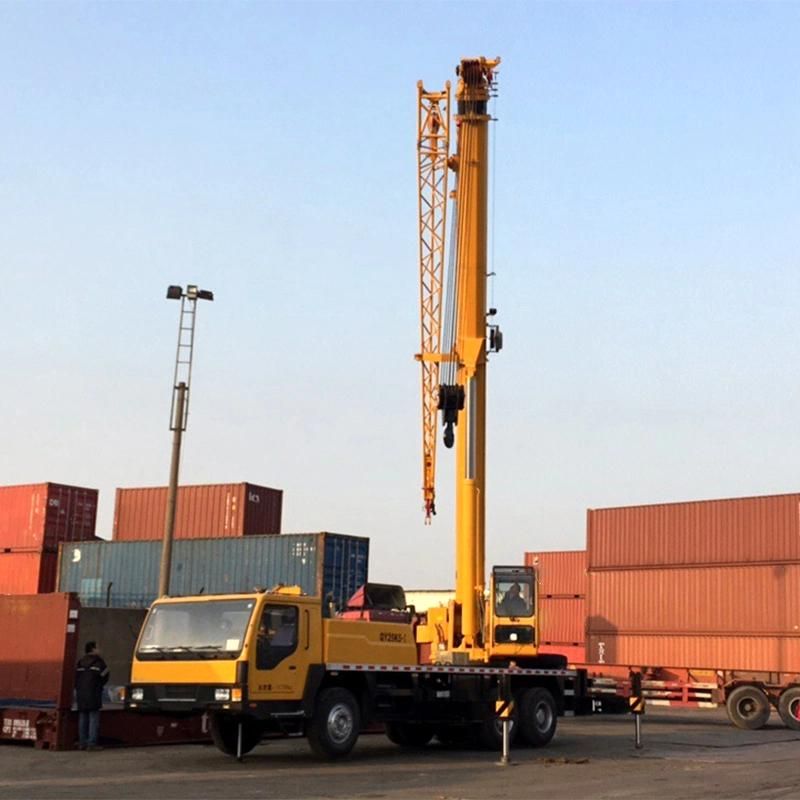

Construction Machine 20t Mobile Crane Qy25kc for Sale
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Free Spare Parts Online Support
- Warranty：1 Year
- Condition：New
- Maximum Lifting Height：25-30m
- Maximum Lifting Weight：>16t
- Shaft Number：3
Base Info
- Model NO.：QY20G. 5
- Crane Jib：Five-Arm
- Type：Straight Arm
- Total Weight in Travel：26020kg
- Front Axle Load：6900kg
- Rear Axle Load：19120kg
- Max. Travel Speed：75km,H
- Min. Ground Clearance：275mm
- Transport Package：Nude Package
- Specification：9450*24003180mm
- Trademark：Top brand
- Origin：Jiangsu, China
- HS Code：84295900
- Production Capacity：10000 Units,Month
Description
Dimension
Unit
Overall length
mm
12400
Overall width
mm
2500
Overall height
mm
3320
Weight
Total weight in travel
kg
26020
Front axle load
kg
6900
Rear axle load
kg
19120
Power
Engine model
SC8DK260Q3 WD615.327
Engine rated power
kW/(r/min)
192/2200 198/2200
Engine rated torque
N.m/(r/min)
1100/1400 1150/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
m
20
Min. ground clearance
mm
275
Approach angle
°
16
Departure angle
°
13
Max. grade ability
%
24
Fuel consumption for 100km
L
