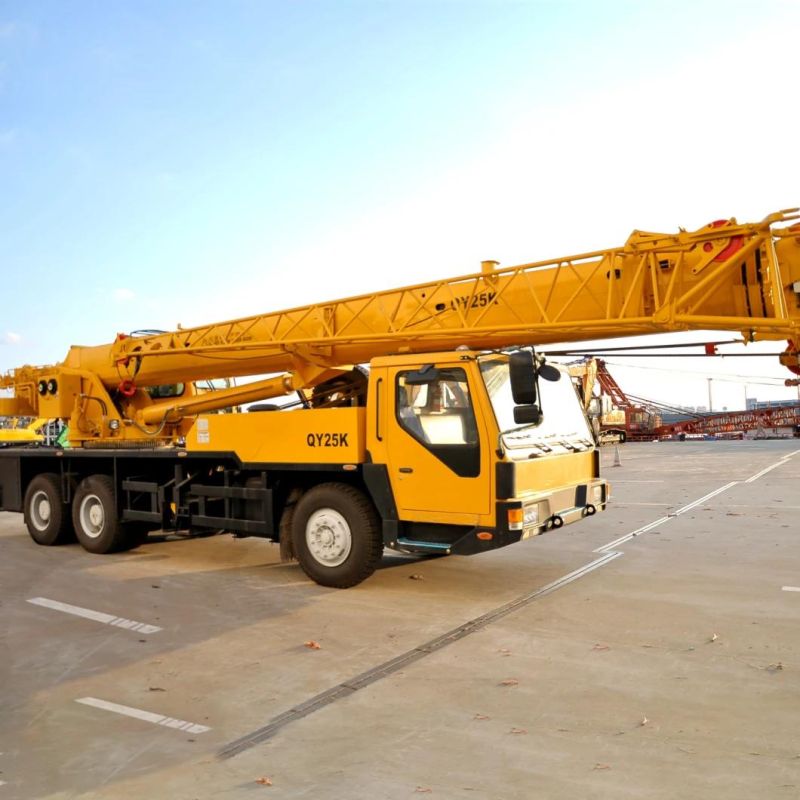

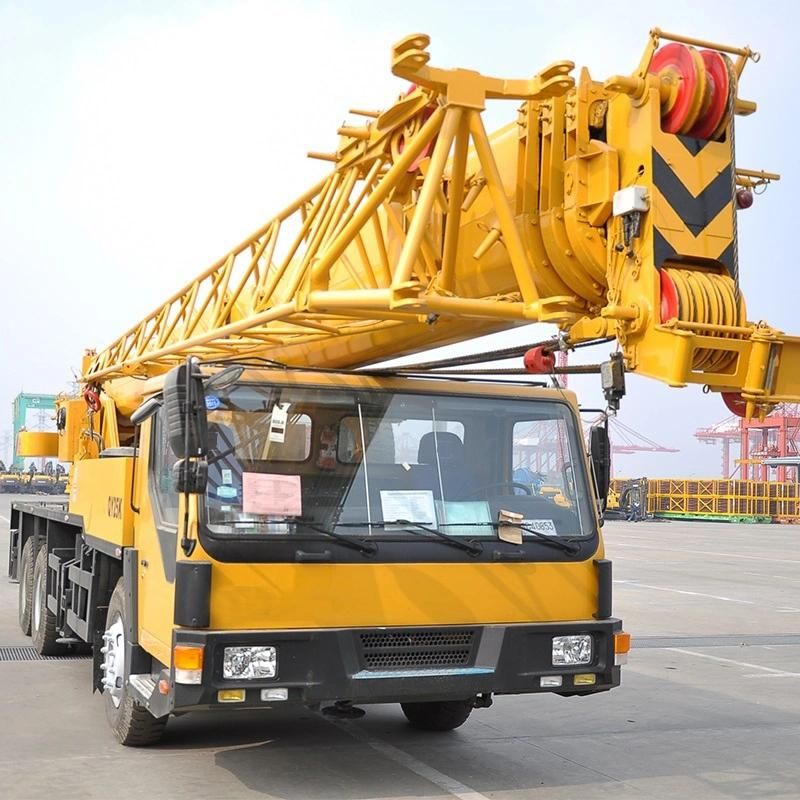

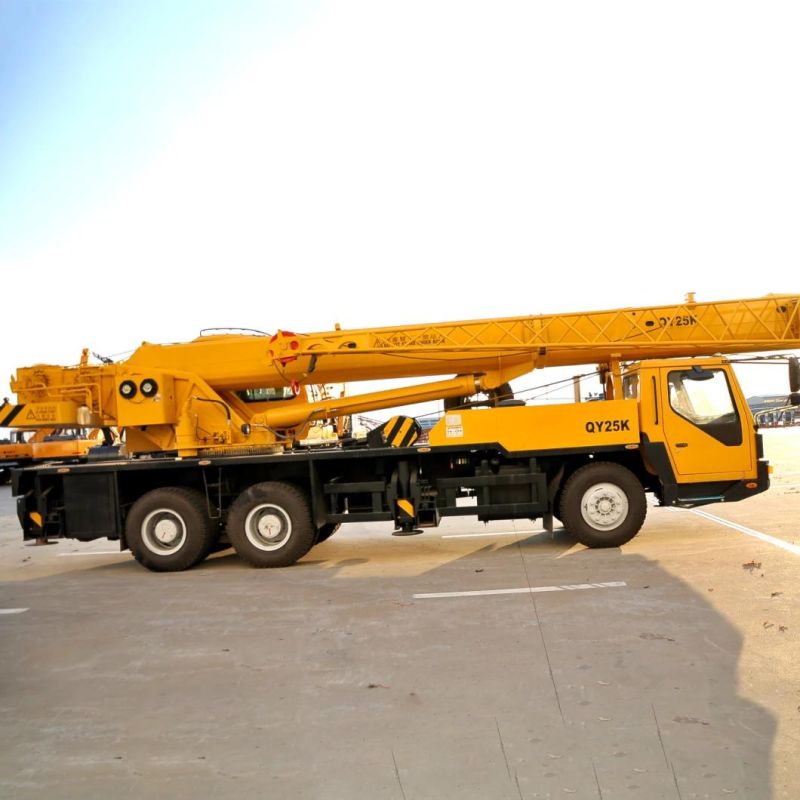

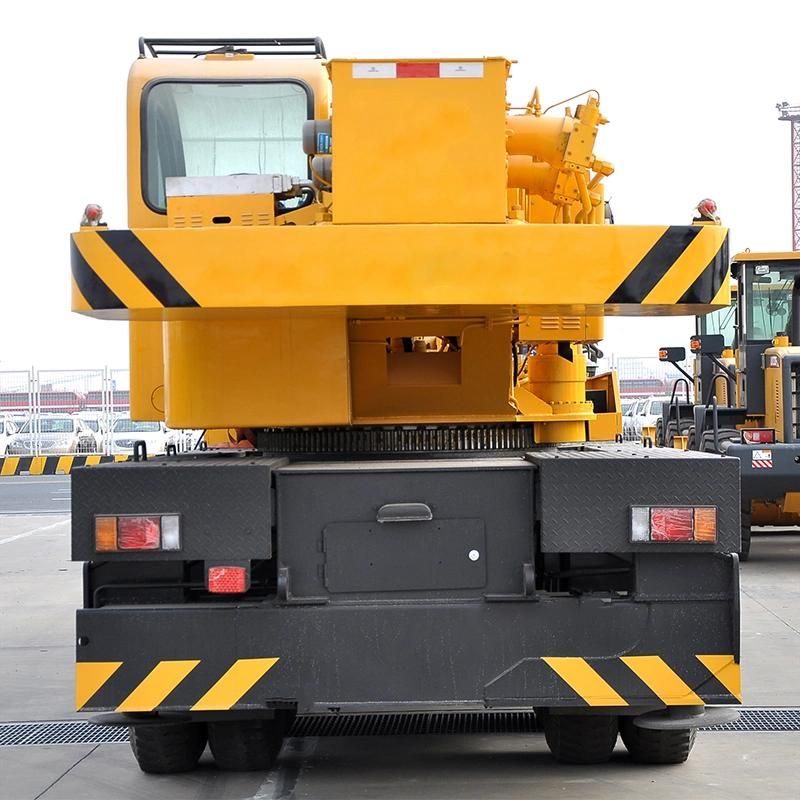

25 Ton Crane Truck Diesel Crawler Crane for Truck Qy25K-II
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Support
- Warranty：Support
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY25K-II
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Straight Arm
- Product Name：25 Ton Crane Truck Diesel Crawler Crane
- Model：Qy25K-II
- Rated Lifting Capacity：25 Ton
- Transport Package：Nude, Spare Parts and Tools Into Standard Cases
- Specification：12650*2500*3380mm
- Trademark：Top brand
- Origin：Jiangsu, China
- HS Code：87059091
- Production Capacity：10000 Units,Month
Description
Dimension
Unit
Overall length
mm
12650
Overall width
mm
2500
Overall height
mm
3380
Weight
Total weight in travel
kg
29400
Front axle load
kg
6200
Rear axle load
kg
23200
Power
Engine model
SC8DK280Q3 / WD615.329(domestic III)
Engine rated power
kW/(r/min)
206/2200 213/2200
Engine rated torque
N.m/(r/min)
1112/1400 1160/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
m
21.5
Min. ground clearance
mm
275
Main performance
Max. rated total lifting capacity
t
25
Min. rated working radius
mm
3000
Turning radius at turntable tail
m
3.065
Max. lifting torque
kN.m
1010
Base boom
m
10.7
Lateral outrigger span
m
6
