HOWO 6ton Truck Mounted Crane with 20ton Loading
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Oversea
- Warranty：1 Year
- Certification：GS, RoHS, ISO9001
- Condition：New
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：5-7t
Base Info
- Model NO.：ZZ3257N
- Shaft Number：3
- Crane Jib：Three-Arm
- Type：Folding
- Product Name：Dump Truck Mounted Crane
- Truck Payloading：20ton
- Crane Lifting Weight：6.3ton
- Transport Package：Nude Packing
- Specification：9300x2500x3650mm
- Trademark：HOWO
- Origin：China
- HS Code：84291190
- Production Capacity：100 Sets,Month
Description
Cabin
Chassis Model
ZZ3257N
Manufacturing year
2020, brand new
Driving type
6x4
HOWO 76 cab, with air-condition and one bed,
70°hydraulically tillable to front, Right-hand drive or Left hand
Vehicle
Main Dimensions
Overall dimensions (L x W x H)
9300x2500x3650mm
Dump body Size (L x W x H)
5200x2300x1600mm
Dump body thickness
Side 4mm, Bottom 6mm
Dump body material
Q345
Lifting system
Middle lifting
Wheel base
4325+1350mm
Wheel track (front/rear)
2022/1830/1830mm
Approach/Departure angle(°)
19/21
Weight in KGS
Tare Weight
14800
Payload
20Ton
Front axles loading capacity
9000kg
Rear axles loading capacity
2x16000kg
Max. driving speed(km/h)
90
Engine
Brand
SINOTRUK
Model
WD615.47
Horse Power(HP)
371
Displacement(ml)
9726
Emission standard
Euro 2
Gearbox
HW19710,10 Forwards gear & 2 reverse gear
Tire
12.00R20,10 tires with one spare, radial tire
Clutch
Reinforced diaphragm clutch, diameter 430 mm
Crane specifications
Brand : SQZ132
Type: Four arms, Knuckle Boom Type
Max lift capacity: 6300 kg
Max working radius 9.92 m, Max lifting height: 13m
Max Lifting Moment 13.23T.M
Recommend Power:18kw
Oil Tank Capacity:90L
Crane weight:2226kg
Slewing angel:360°All rotation

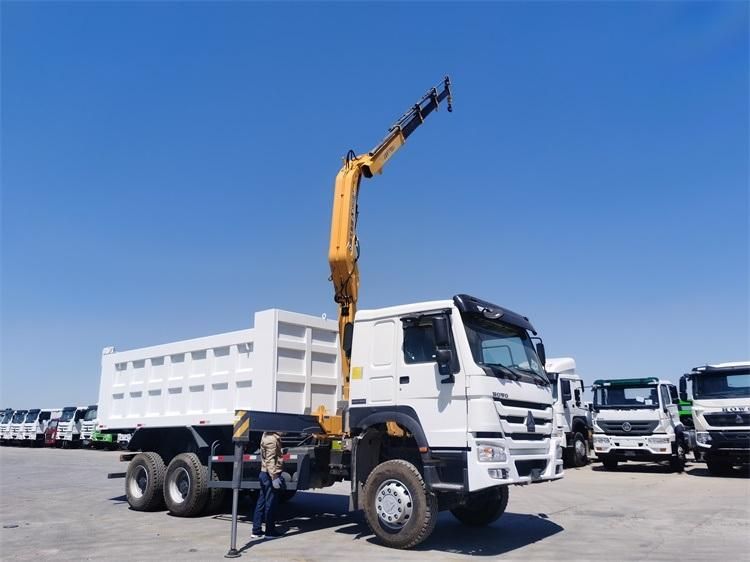

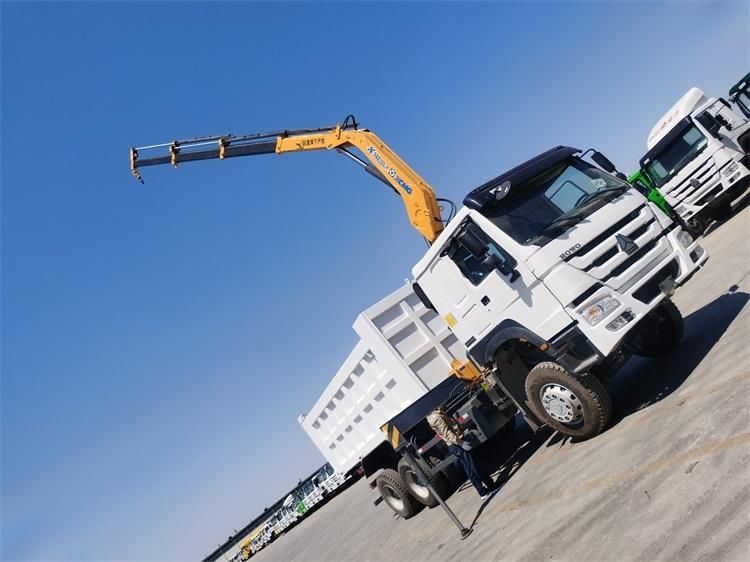

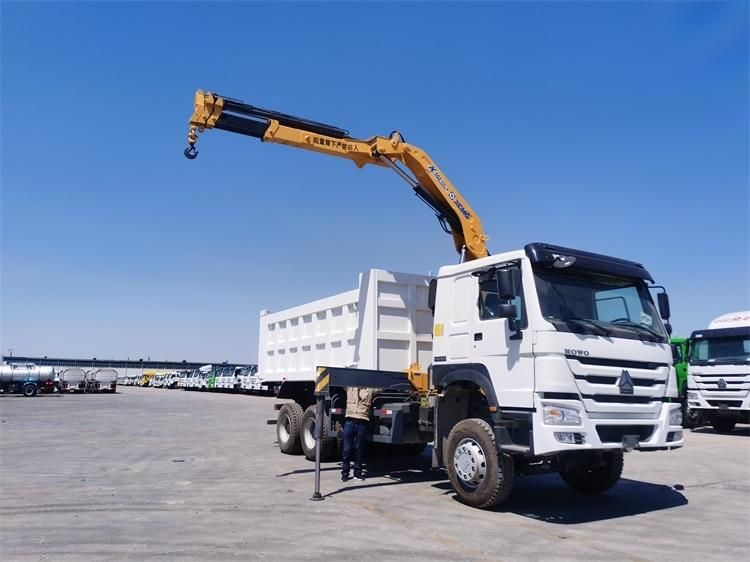

Photos:
Company information:
