• Model NO.：ZTC250A552
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Base on Outriggers：5.36m
• Main Boom Length：10.5-33.3m
• Distance Between Outriggers：6.1m
• Fly Jib Length：8m
• Transport Package：Nude
• Specification：9450*24003180mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：87051091
• Production Capacity：500

Specification of ZTC250A552Max. rated total lifting capacity25000 kg Max. load moment of basic boom 980 kN.m Max. load moment with max. main boom573 kN.m Max. lifting height of basic boom11.5 m Max. lifting height of main boom33.8 m Max. lifting height of fly jib41.6 m Max. speed of single rope on main winch120 m/min Max. speed of single rope onauxiliary winch105 m/min Derricking time of boom40 s Telescopic time of boom60 s Slewing speed0~2.2 r/min Max. traveling speed72 km/h Max. gradeability40 % Min. turning circle diameter20 m Min. ground clearance220 mm Oil consumption per hundred kilometers 46 L Deadweight of crane in traveling condition28930 kg Complete vehicle kerb mass28800 kg Front axle load6300 kg Rear axle load22630 kg Overall dimensions(L×W×H)13000×2500×3450 mm Base on outriggers5.36 m Distance between outriggers6.1 m Main boom length10.5~33.3 m Main boom angle°-2~80 Fly jib length8 m Offset angle of fly jib°0 , 30 ChassisModelZLJ5314ClassII Feature No.ZLJ5314D3.1 EngineModelWP10.270Rated power199/2200 kW/r/min Max. output torque1100/1200~1600 N.m/r/min

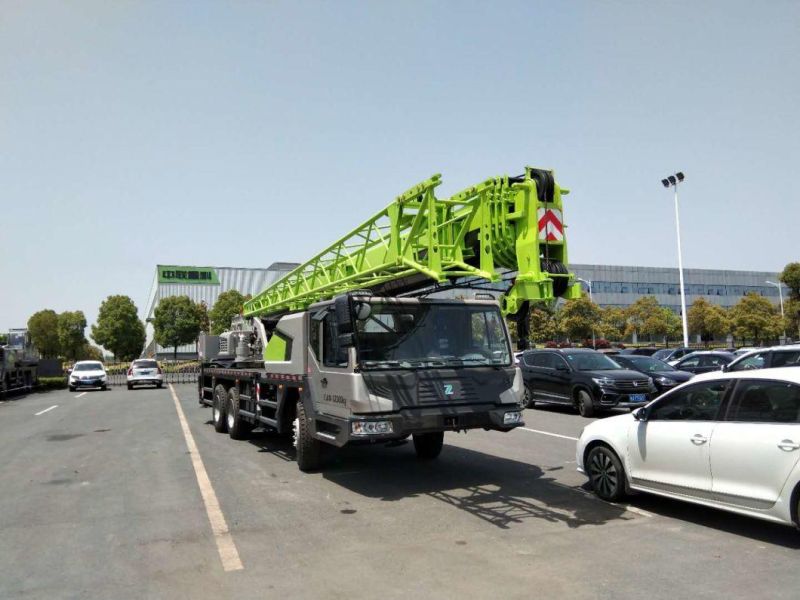

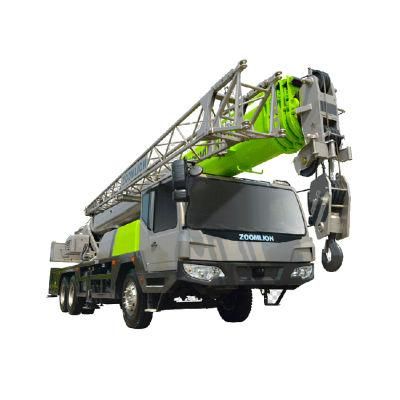

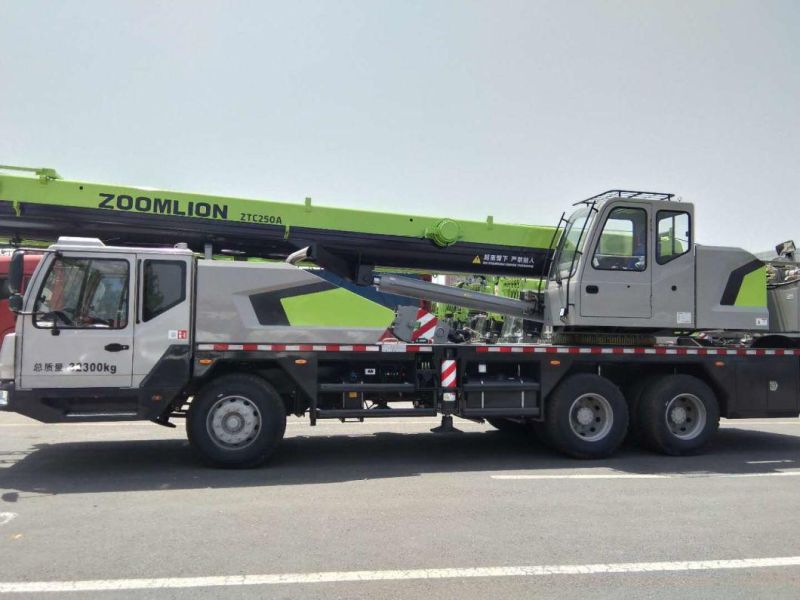

Product image
