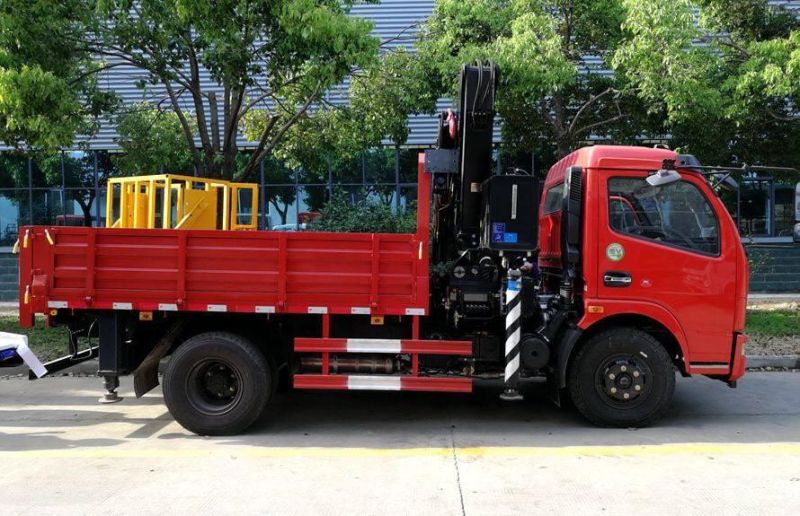

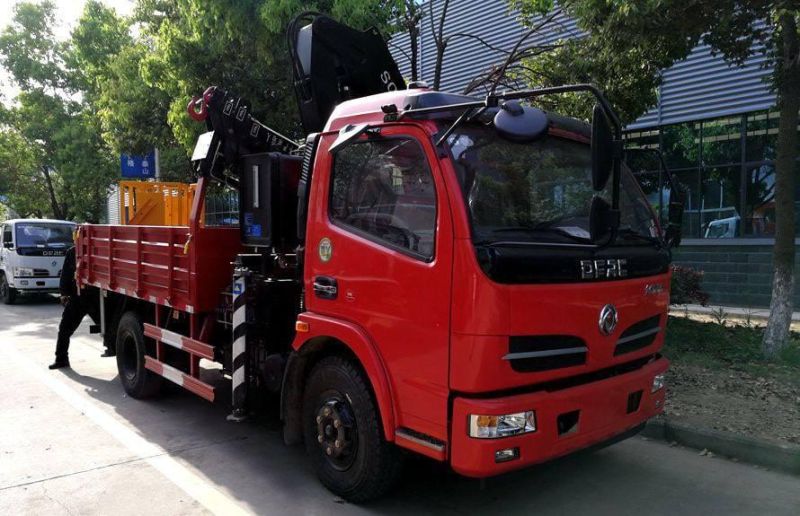

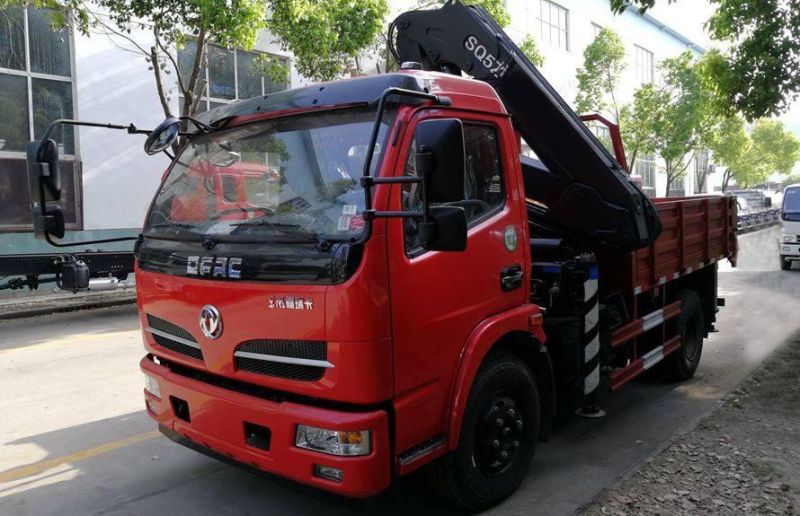

• Model NO.：CLW5089SCD
• Type：Folding
• Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
• Gearbox：5forwards & 1reverse
• Engine Brand：Yuchai, 115HP
• Crane Brand：Sany, Clw, etc.
• Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
• Cargo Material：Q235 Carbon Steel
• Warranty：1 Year
• Crane Capacity：2ton, 3ton, 3.2ton, 4ton, etc.
• Boom Type：Straight 3-Arm Telescopic Boom
• Cargo Thickness：Side 1.5mm, Bottom 2.5mm
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：2ton, 3ton, 3.2ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

General Technical ParametersOverall Dimension5995×2200×2945 (mm)Gross Vehicle Weight4495(Kg)Curb Weight3610(Kg)Chassis SpecificationChassis BrandDongfengDrive model4*2CabinDouble, Left Hand Driving, with air conditionalNumber of Passengers2EngineModel4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGRPower85KW/115HPEmission standardEURO 3Displacement2771(ml)Fuel typeDieselGearbox5Forwards & 1ReverseBrake SystemAir breakWheel Base3308mmFront/Rear Axle Loading1500/3000(Kg)Approach/Departure Angle23/12(°)Overhang1250/3545(mm)Tire7.00R16Max Driving Speed90(km/h)Upperstructure SpecificationCargo BodyDimension2770×1850×380(mm)MaterialQ235 carbon steelCargo ThicknessSide 1.5mm, Bottom 2.5mmWorking SystemBoom TypeFolding 3-Arm knuckle boomCraneCrane BrandSANY or CLWRange of Sprayer30mMax Lifting Moment25(T.M)Max Lifting Capacity2000(kg)Max lifting height12(m)Rotation angle360(°)Installation space1150(mm)Recommented power30(kw)Maximum working pressure26(Mpa)Max Flow63(l/min)Crane weight3800(kg)Oil tank capacity160(L)LegLeg typeH typeLeg Span2.28-5.9(m)Hydraulic systemPressure18(M pa)Capacity70(l)Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.

Products Catalog:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker

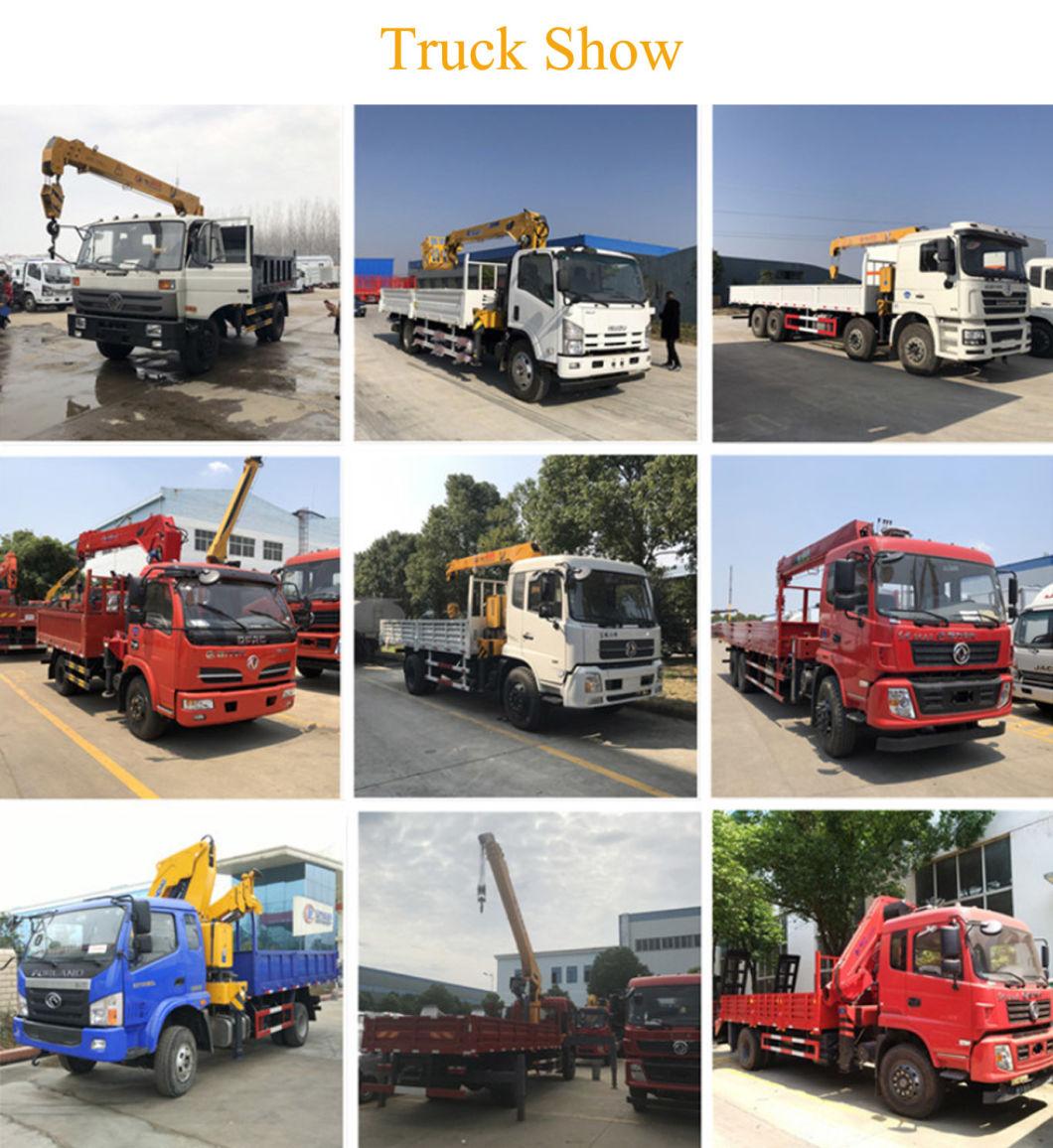

3. Truck with crane / Truck mounted crane
