China Truck Crane Manufacturer Sale 12 Ton Small Mobile Hydraulic Truck Mounted Crane
HUBEI RUILI AUTOMOBILE CO., LTD.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：15-20m
- Maximum Lifting Weight：14-16t
- Shaft Number：2
- Crane Jib：Three-Arm
Base Info
- Model NO.：CLW5089SCD
- Type：Straight Arm
- Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
- Crane Brand：Clw, etc.
- Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
- Cargo Material：Q235 Carbon Steel
- Crane Capacity：12ton, 14ton, 16ton, 18ton, etc.
- Boom Type：Straight 4-Arm Telescopic Boom
- Cargo Thickness：Side 1.5mm, Bottom 2.5mm
- Crane Weight：4316kg
- Max. Lifting Capacity：12tons
- Max Lifting Height：15m
- Working Radius：13m
- Crane Rotation Angle：360 Degree
- Flatbed Dimensions：8450*2300*550mm
- Driving Model：LHD, Rhd
- Transport Package：Naked, Waxed, Bulk Ship, RO-RO
- Specification：12ton, 14ton, 16ton, 18ton
- Trademark：CLW
- Origin：Suizhou, China
- HS Code：8705909090
- Production Capacity：500 Unit,Month
Description
Driving type 6x4 HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref. HW19710, 10 forwards gear & 2 reverse gear ZF8098 power steering 12R22.5 tubeless tires with one spare 400L Reinforced diaphragm clutch, diameter 430 mm Brand : according to customer's requests. Type: Telescopic Max lift capacity: 14000 kg Max working radius 15.8 m, Max lifting height : 17.8 m
14 T Telescopic crane
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
14 T Telescopic crane
| TYPE | Max Lifting Capacity | Max Lifting Moment | Recommend Power Needed At Recommend Oil Flow | Max Oil Flow of Hydraulic System | Rated Pressure Of Hydraulic System | Oil Tank Capacity | Rotation Angle | Crane Weight | Installation Space |
| SQ14SK4Q | 14000KG | 35 T.M | 30 KW | 63 L/MIN | 26 MPA | 160 L | All Rotation | 4800 KG | 1300 MM |

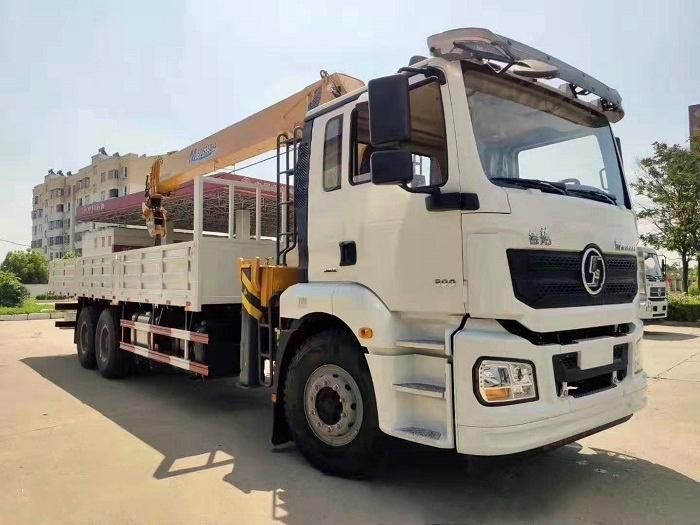

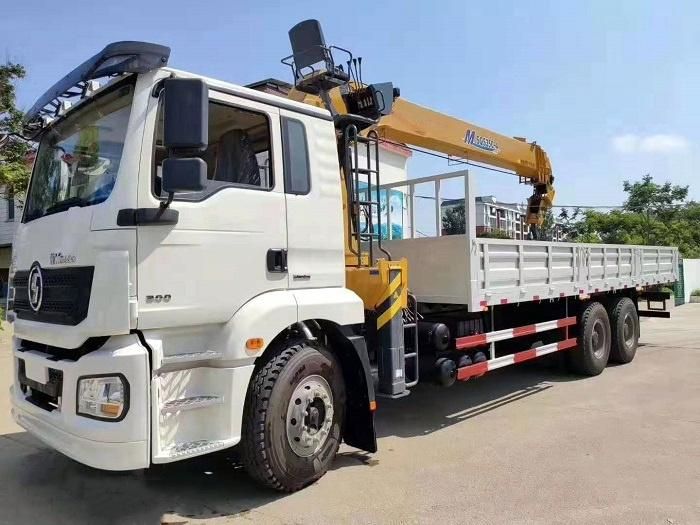

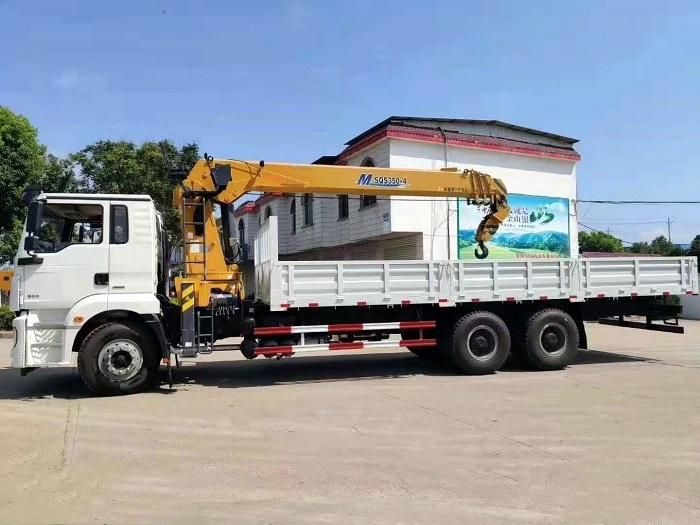

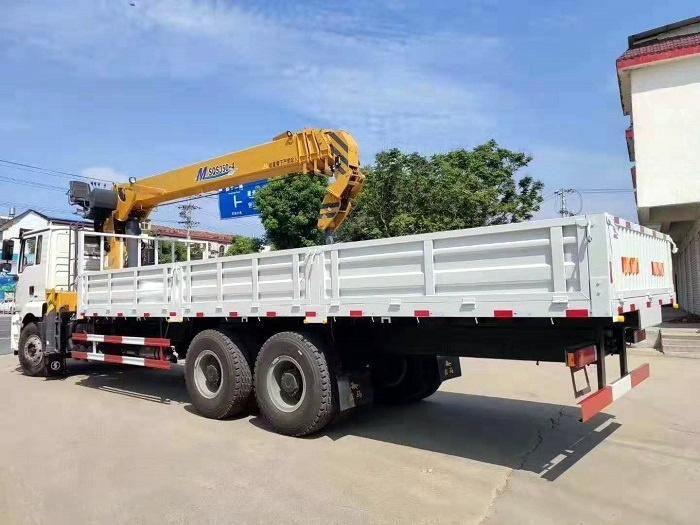

Reference Photos
