• Model NO.：CLW5089SCD
• Type：Straight Arm
• Chassis Brand：Dongfeng, Sinotruk HOWO, Foton, FAW, JAC, Jmc, Isu
• Gearbox：9forwards & 1reverse
• Engine Brand：Cummins, 315HP
• Crane Brand：Sany, Clw, etc.
• Crane Boom Type：Straight Telescopic Crane, Knuckle Crane
• Cargo Material：Q235 Carbon Steel
• Warranty：1 Year
• Crane Capacity：12ton, 14ton, 16ton, 18ton, etc.
• Boom Type：Straight 4-Arm Telescopic Boom
• Cargo Thickness：Side 1.5mm, Bottom 2.5mm
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：12ton, 14ton, 16ton, 18ton
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

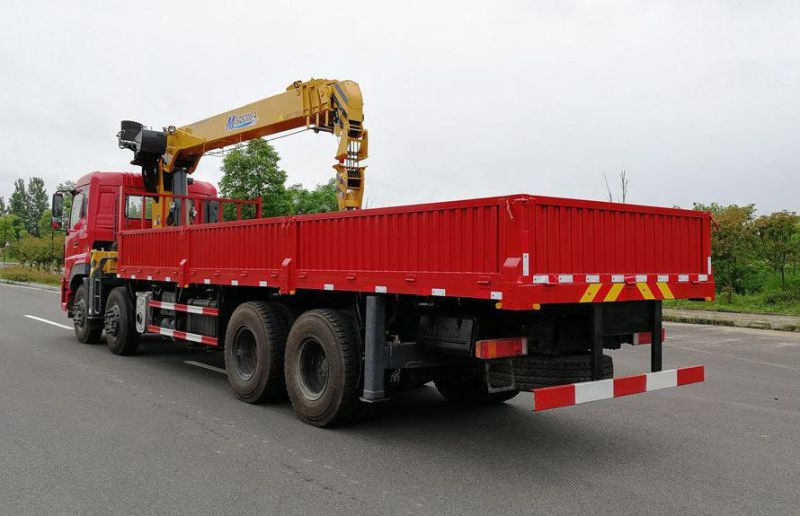

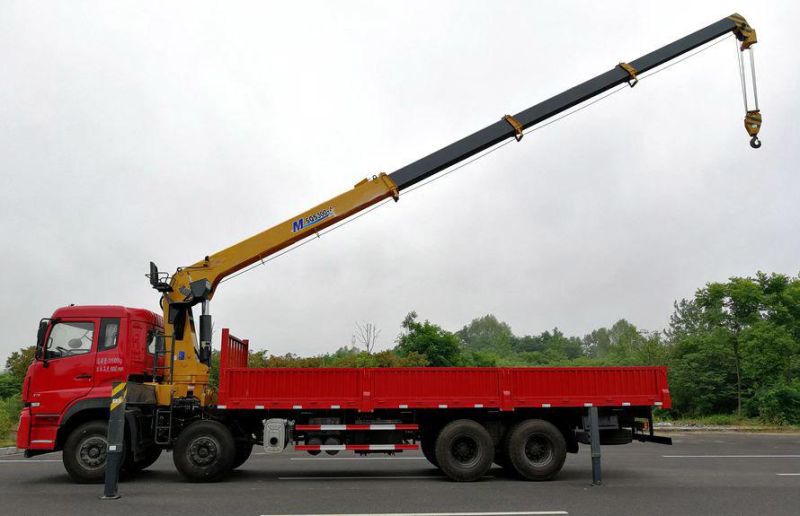

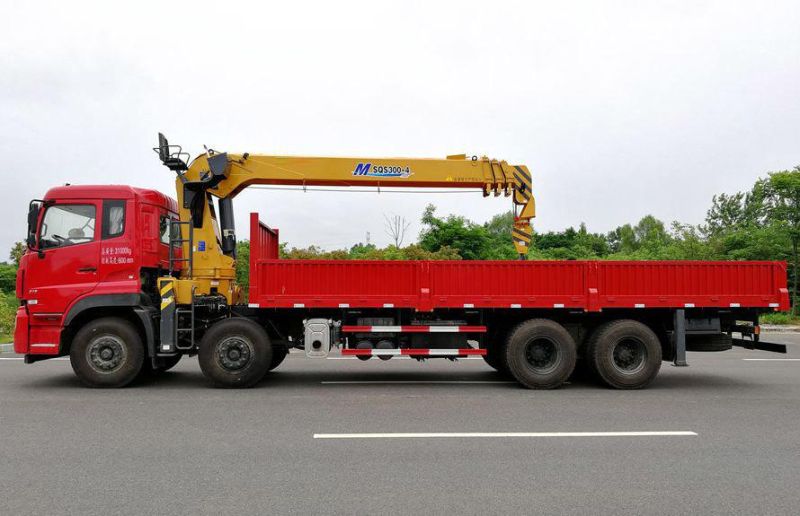

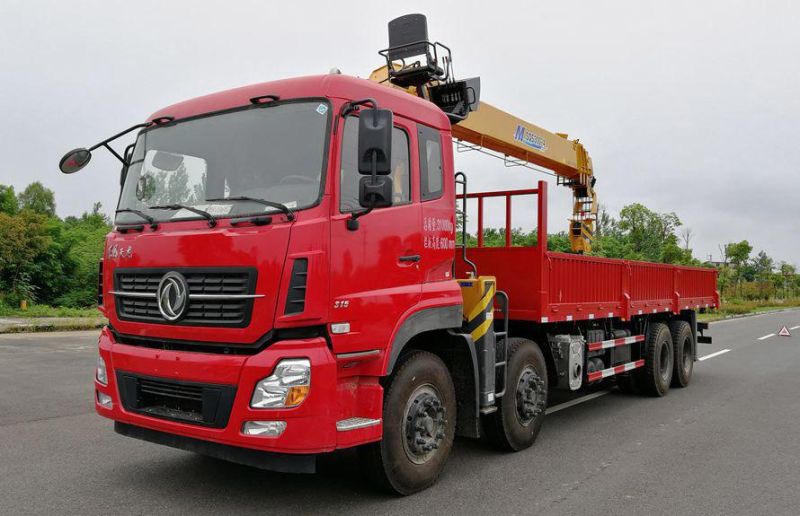

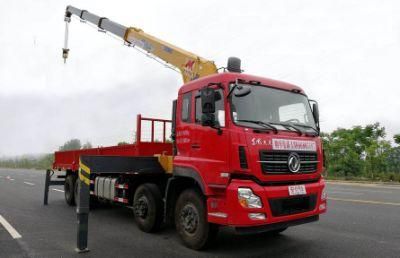

General Technical ParametersOverall Dimension11980×2500×3980 (mm)Gross Vehicle Weight24900(Kg)Curb Weight15800(Kg)Chassis SpecificationChassis BrandDongfengDrive model8*4CabinDouble, Left Hand Driving, with air conditionalNumber of Passengers3EngineModel4-stroke direct injection , 6-cylinder in-line with water cooling, inter-cooling, EGRPower
231KW/315HPEmission standardEURO 3Displacement8300(ml)Fuel typeDieselGearbox9Forwards & 1ReverseBrake SystemAir breakWheel Base1850+4600+1400 mmFront/Rear Axle Loading8000/11500(Kg)Approach/Departure Angle23/12(°)Overhang1250/3545(mm)Tire11.00R20Max Driving Speed90(km/h)Upperstructure SpecificationCargo BodyDimension8600×2300×550(mm)MaterialQ235 carbon steelCargo ThicknessSide 1.5mm, Bottom 2.5mmWorking SystemBoom TypeStraight 4-Arm telescopic boomCraneCrane BrandSANY or CLWRange of Sprayer30mMax Lifting Moment25(T.M)Max Lifting Capacity16000(kg)Max lifting height12(m)Rotation angle360(°)Installation space1150(mm)Recommented power30(kw)Maximum working pressure26(Mpa)Max Flow63(l/min)Crane weight3800(kg)Oil tank capacity160(L)LegLeg typeH typeLeg Span2.28-5.9(m)Hydraulic systemPressure18(M pa)Capacity70(l)Other ConfigurationControl system in 2 side; diamond palt, yellow warning fire; 2.5T arm, etc.OptionsCaution light, air condition, inlet valve, medicine tray, pneumatic valve, cylinder, etc.
