• Model NO.：SWCMH420
• Max. Lifting Height：12 M
• Max.Working Radius：10.5 M
• Max. Travel Speed：5.2 Km,H
• Warranty：12 Months
• Transport Package：Nude
• Specification：operating weight 42 ton
• Trademark：Sinoway
• Origin：China
• HS Code：84314900
• Production Capacity：100 PCS , Year

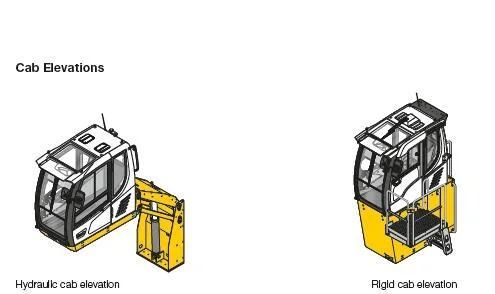

Dimensions  Machine length13706mMachine height3443mmMachine width  3340mmTrack length4947mmMaximum lift height of the cab5143mmTail turning radius 4412mmTurntable height off the ground1293mmTurntable width3265mmWidth of walking platform627mmTransportation dimensions exclude width of the walking platform.The cap is optional:Fixed cab / heightened cab / lift-able cab
Working Scope
Lifting Performance Parameters3.54.56.07.59.010.512.013.5HeightMax. height        12.0        10.5    6.0   9    5.85.0  7.5   7.05.84.8  6.0  9.06.85.64.74.0 4.515.011.08.56.85.64.73.8 3.0 10.08.06.65.44.53.8 1.5 9.07.06.65.44.53.63.50     6.45.24.23.6 -1.5   6.25.24.23.5 -3.0   6.05.04.0  Max. depth
Length of the boom is optional, and the optimum proportion can be obtained according to the actual demand of the work.
 Technical Parameters   PowerEngine206kwElectric motor132kwFuel tank  330LWalking SystemWalking speed  2.5/4.2km/hMax. traction force228KNGrade ability  30%Hydraulic SystemMax. flow2 x 320L/minMax. working pressure31MPaHydraulic oil tank396LPilot pressure3.8MPaMain Performance ParametersTotal weight50tMax. lifting moment60t.mMax. swing speed8r/minMax. swing torque110KN.m
