• Model NO.：QTZ63-5010
• Series：Qtz63
• Application：Building, Construction
• Rated Max.Load：5ton
• Rated Tip Load：1.0ton
• Free Standing Height：30m
• Max.Lifting Height：120m
• Span：50m
• Mast Section：1.6mx1.6mx2.5m(Angle Steel)
• Electric：Schneider
• Warranty：14 Months From The B,L Date
• Transport Package：40hc Container
• Specification：SGS ISO BV
• Trademark：Tavol
• Origin：Shandong, China
• HS Code：84262000
• Production Capacity：2000sets,Year

Series
QTZ63
Standard Model
5010
Max. Lift Load
5t
Tip Load
1.0t
Free Standing Height
29m
Max.Anchorage Height
120m
Jib Length
50m
Mast size
1.6×1.6×2.5m
Lift Mechanism
Lifting Speed
(a=2) 68/34 m/min
(a=4) 34/17 m/min
Lift motor
18/18/5 kw
Wire rope diameter
12.5 mm
Trolley Mechanism
Trolley speed
39/26 m/min
Trolley Motor
1.5/2.2 kw
Slewing Mechanism
Slewing Speed
0.72 r/min
Slew Motor
3.7 kwx2 units
Jacking Mechanism
Jack Climbing Speed
0.4 m/min
Jack Climbing motor
4 kw
Power
380V/50Hz/3P
Luxury Operate Cabin,Schneider Electric Parts2-Feature&advantage
1.suitable for all kinds of construction project and can work under all kinds of work condition.
2.It has high working speed, good speed-adjusting performance, steady operation and high efficiency.
3.The crane has complete set of safety devices, which can guarantee the safe and high efficienct operation of the equipment.
4.Three-speed motor and mono-speed ratio decelerator are applied in the lifting struction, which enables heavy load low speed and light load high speed.
5.Planet gear decelerator is applied in the circumgyrating structure, together with moment-limiting hydraulic coupler, which can relize high load capacity, steady starting and reliable operation.
3-Safety features:
1. Overload protection: If the material is over the capacity, the crane will give a sharp warning for protection itself.
2. Emergency brake: If the operation staff  encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operation staff
4. Main lifting motor: with thermal protection and currency protection.

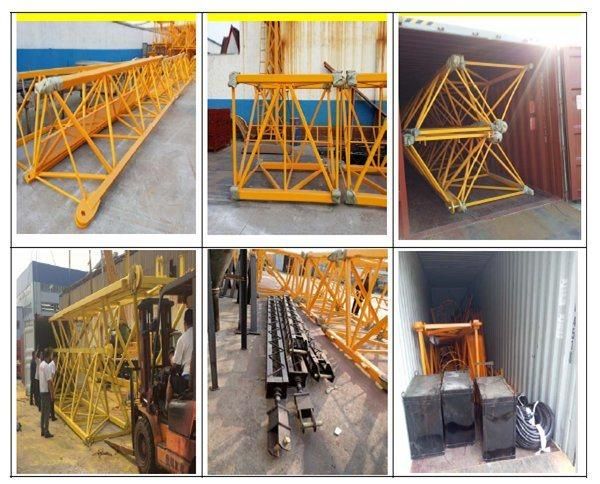

4-Packaging & Delivery
Packaging Details: 40 HC containers; high quality Wodden cage for electrical parts Delivery
Detail: 20-25 days after received the deposit in advance


After-sales service:
1- One year warranty for whole machines.
2- Providing free quick-wear part.
3- Low charge for continue maintenance when warranty is expired.
4- Exclusive engineer support at any time.
5- We can provide free training to end-users.



FAQ
Please supply more detail to us:
1. Building height or tower crane working height.
2. Wokring range or jib length
3. Max load capacity and tip load capacity.
4. Other Special requirements
