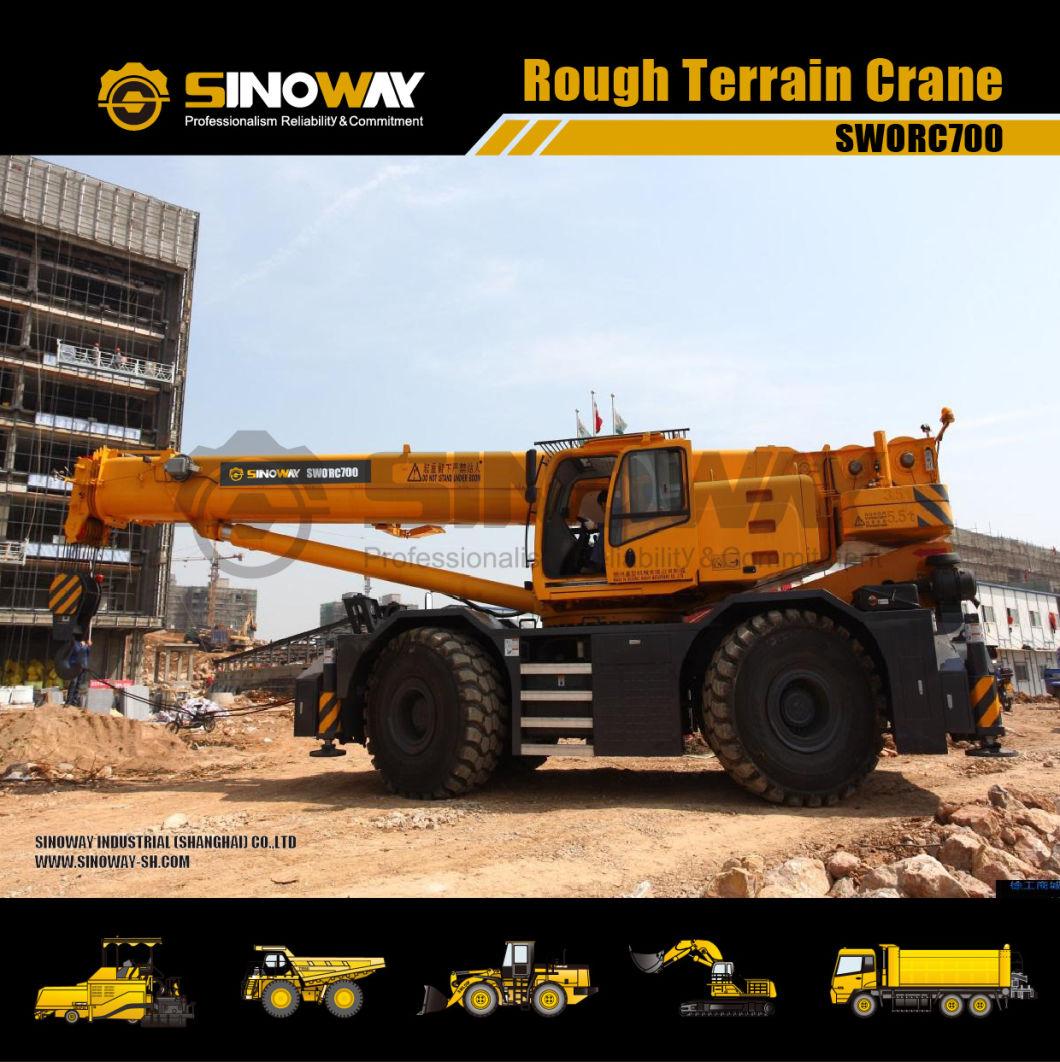

70 Ton Rough Terrain Crane, 4X4 off- Road Crane

Sinoway Industrial (Shanghai) Co., Ltd.
  • Certification:ISO9001
  • Condition:New
  • Maximum Lifting Height:>40m
  • Maximum Lifting Weight:60 Ton
  • Shaft Number:2
  • Crane Jib:Five-Arm

Base Info

  • Model NO.:SWORC700
  • Type:Straight Arm
  • Travel Speed:35 Km,H
  • Base Boom:11.3 M
  • Boom Raising Time:75 S
  • Boom Extending Time:80 S
  • Transport Package:Nude
  • Specification:operating weight 41 ton
  • Trademark:SINOWAY
  • Origin:China
  • HS Code:84294990
  • Production Capacity:100 PCS , Year

Description

Basic Info.

Model NO. SWORC700 Type Straight Arm Travel Speed 35 Km/H Base Boom 11.3 M Boom Raising Time 75 S Boom Extending Time 80 S Transport Package Nude Specification operating weight 41 ton Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 100 PCS / Year

Product Description

Three operating modes: superior performance of operation on outriggers, which is not less than that for truck crane in a stationary site; unique performance of operation on tires makes it easy to complete the job what truck crane could not finish when it is difficult to deploy outriggers in a confined site; powerful pick and carry capacity makes fast operation of lifting and transferring load. It is suitable for lifting and transferring operation in oil patch, storage, goods yard, dock and logistic base, etc.

Two driving modes: forward and reverse driving function contributes to fast transferring within a site or from a site to another; four electro-proportional steering modes combined with min. turning radius of 8.5 m offers unmatched maneuver ability in a confined space. Specialized off-road tires and super power system ensure favorable off-road capacity, suitable for applications in various adverse sites.

Swing, rigidly lockable hydraulic suspension technology: the shock absorption function of rear suspension may be performed through the swing mechanism and suspension cylinder when driving on  roads, consequently road shock is buffered and travel smoothness is improved; the rear suspension cylinder may be locked to rigid state so as to meet the requirement for travel with a load suspended; during operation of crane on tires, when the turntable is turned over ±3°, suspension system may automatically switch over to rigid state, operation safety is ensured.
70 Ton Rough Terrain Crane, 4X4 off- Road Crane
Engine
Engine makeCUMMINS
TypeSix-cylinder,water-cooled,turbocharged,electronic injection
Rated power194KW
Rated speed2200rpm
Lifting Specification
Max. rated lifting capacity70000kg
Min. raged working radius2.5m
Slewing radius at turntable tail (at counterweight)4100mm
Max. load moment
Base boom max. load moment2033KN•m
Fully extended boom load moment1223KN•m
Boom Length
Base boom11320mm
Fully extended boom43200mm
Fully extended boom+jib60700mm
Lifting height
Base boom11300mm
Fully extended boom43900mm
Fully extended boom+jib58100mm
Working Speed
Boom raising time80s
Boom extending time120s
Max. slewing speed2.0 rpm
Outrigger beam extending/retracting time40/30s
Outrigger jack extending/retracing time55/40s
Hoist speed
Main winch max. speed130m/min
Aux. winch max. speed130m/min
Outrigger span
Longitudinal7300mm
Lateral(fully/half extended)7200/5600mm
Traveling Specification
Max. traveling speed25km/h
Drive type4×2/4×4
Grade ability65%
Min. turning radius6.1m(4×4)/10.5(4×2)
Noise at seated position80dB(A)
Braking distance (at 24 km/h)9m
Tyre29.5R25
Mass Specification
Operating weight49000kg
Axle load 1st25500kg
Axle load 2nd23500kg
Dimensions
Overall size13135×3180×3750mm
Wheel base4000mm
Tread2400mm
Overhang(F/R)1925/2190mm
Extension(F/R)5020/0mm
Min. ground clearance467mm
Approaching/departure angle20°/17.5°
Jib offset angle0°, 20°, 40°
Braking system
Service brakeDouble-circuit full-hydraulic disc brake
Parking brakeSpring-loaded brake,hydraulic-released independent disc brake
70 Ton Rough Terrain Crane, 4X4 off- Road Crane
Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.
ConditionBrand New
WarrantyOne year or 2000 working hours, whichever comes earlier.
