• Model NO.：SWTC25K5
• Type：Straight Arm
• Engine Make：Cummins
• Rated Power：213kw
• Payload Capacity：25 Ton
• Application：Construction Usage
• Sling Type：Wire Rope
• Travel Speed：75km,H
• Warranty：One Year
• Transport Package：Nude
• Specification：ISO
• Trademark：Sinoway
• Origin：China
• HS Code：84292090
• Production Capacity：500 Unit Per Year

Basic Info.

Model NO. SWTC25K5 Type Straight Arm Engine Make Cummins Rated Power 213kw Payload Capacity 25 Ton Application Construction Usage Sling Type Wire Rope Travel Speed 75km/H Warranty One Year Transport Package Nude Specification ISO Trademark Sinoway Origin China HS Code 84292090 Production Capacity 500 Unit Per Year

Product Description

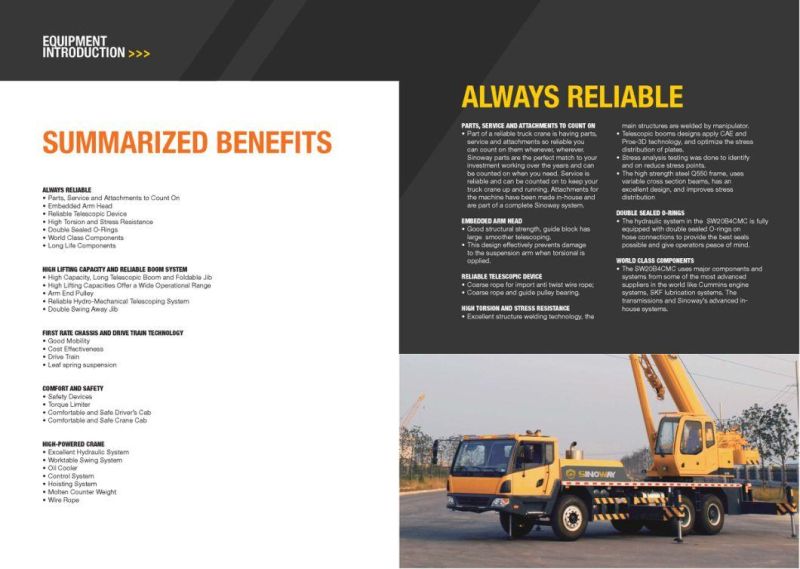

Advatanges & Features

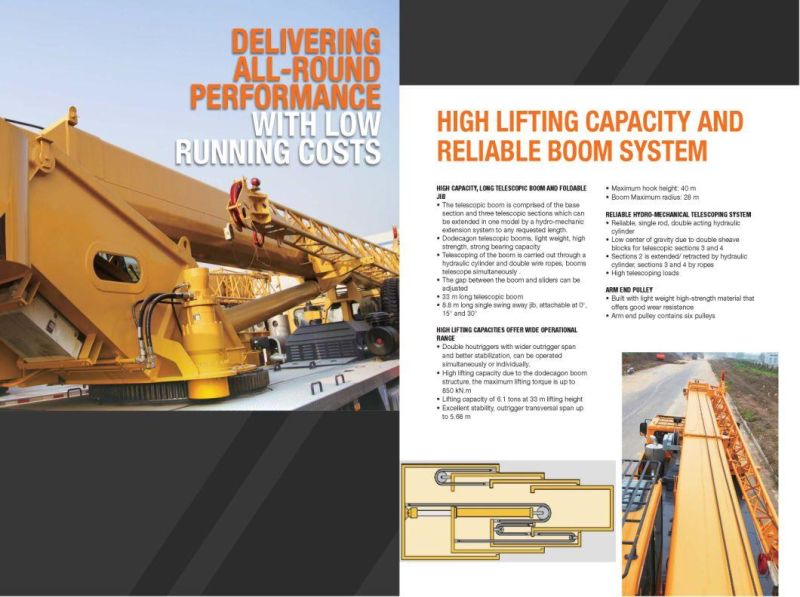

Five-section U-shaped cross-section lifting boom,  has strong lifting performance, and is 5% -10% ahead of the same tonnage products in the industry.
High-power engine has superior power performance, strong climbing ability, excellent passing ability, maximum climbing ability of 42%, and maximum driving speed of 85km/h.
Improving the reliability of key systems such as heat dissipation and electricity, and making operation and driving safer.
Waterproof connector, with rubber sheath inside the connector, has excellent waterproof performance, and the protection level reaches IP65.
Fuel tank made of Aluminum alloy, good appearance quality, corrosion resisting, and strong impact resistance.
Hoisting with double folded line, hoisting wire rope is arranged neatly and not disorderly rope, canceling the rope presser, hoisting operation reliability is higher.
Optimize the heat dissipation system, air conditioning condenser is arranged separately, the heat dissipation capacity is greatly improved, and the allowable ambient temperature is above 45ºc.

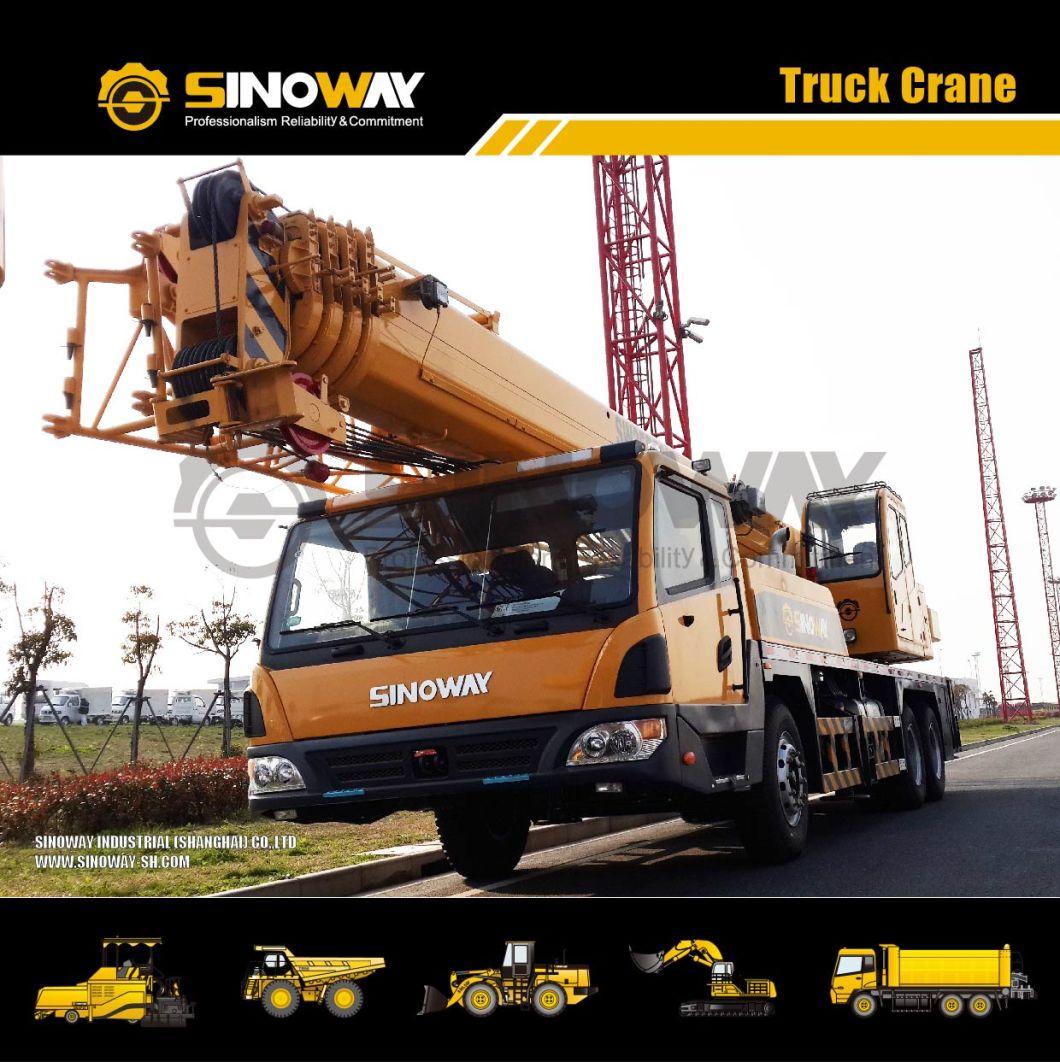

Product Show





Specifications

Engine
Engine make	CUMMINS
Type	Six-cylinder,water-cooled,turbocharged,electronic injection
Rated power	213KW
Rated speed	2200rpm
Mass Specification
Operating weight	32205Kg
Front axle load	7200Kg
Rear axle load	25200Kg
Lifting Specification
Max. rated lifting capacity	25000Kg
Min. rated working radius	3m
Max. load moment
Base boom	995.5KN·m
Fully extended boom	447KN·m
Fully extended boom+jib	331KN·m
Outrigger span
Longitudinal	5250mm
Lateral	6000mm
Lifting height
Base boom	10.4m
Fully extended boom	39.6m
Fully extended boom+jib	48.2m
Working Speed
Boom raising time	65/135s
Boom full extension time	110/150s
Max. slewing speed	2.5rpm
Hoist speed
Main winch (full load)	≥130m/min
Aux. winch (full load)	≥130m/min
Travelling Specification
Max. travelling speed	75km/h
Min. turning diameter	11.0m
Ground clearance	320mm
Approach angle	18°
Departure angle	13°
Grade ability	40%
Fuel consumption	35L/100km
Dimensions
Overall length	12250mm
Overall width	2500mm
Overall height	3365mm
Wheel base
Axle1, Axle2	4535mm
Axle2, Axle3	1350mm

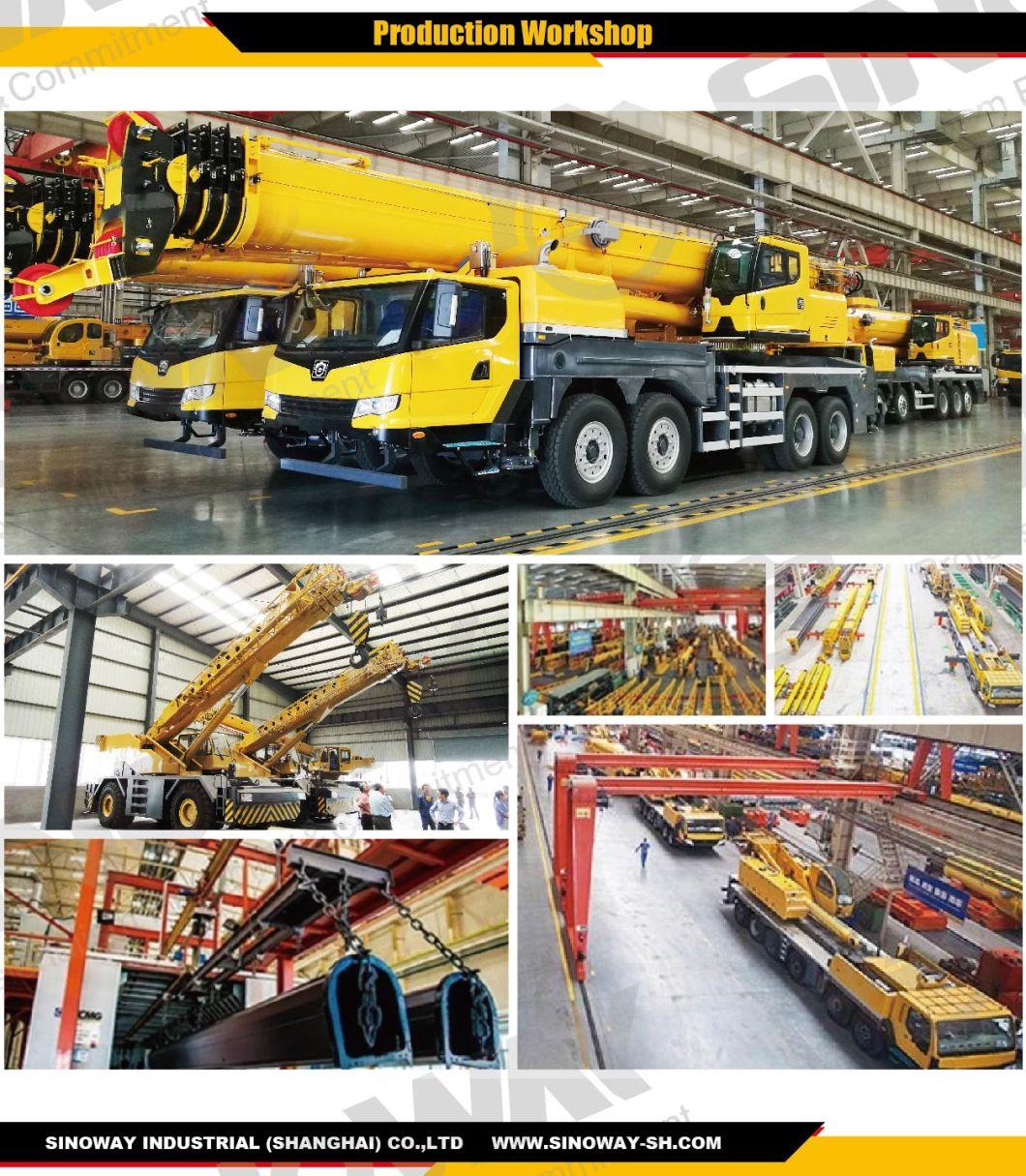

Production Line
