Overhead Crane Sigle Girder Ce Approved Capacity of 1 Ton
Shaoxing Leitai Machinery Co., Ltd.- After-sales Service：Installation Guidence,Quick Problem Response
- Warranty：One Year
- Certification：CE, ISO9001
- Condition：New
- Operation Form：Cabin , Pendant Control , Remote Control
- Maximum Lifting Height：15-20m
Base Info
- Model NO.：SG
- Maximum Lifting Weight：<20t
- Main Girder Form：Single Girder
- Type：Ordinary
- Capacity：1 Ton
- Span：14 M
- Lifting Speed：5,0.8 M,Min
- Trolley Speed：5.0,20 M,Min
- Bridge Speed：8,32
- Crane Rail：30*50
- Power Supply：380VAC, 50Hz, 3p
- Control Power：48V
- Transport Package：Container
- Trademark：LEITAI
- Origin：China
- HS Code：8426112000
- Production Capacity：1000 Sets Per Year
Description
kg360 360 360 360 360 360 360 360 360 360 363 363 363 363 363 435 435 435 435 435 End Carriage 230 270 310 350 390 230 270 310 350 390 230 270 310 350 390 300 348 394 442 488 Long travel Motor 26 26 26 26 26 28 28 28 28 28 28 28 28 32 32 44 44 44 44 46 Girder 810 1190 1700 2300 3270 920 1380 2140 3020 4210 970 1720 2520 3450 5110 1150 2300 2950 4070 5920 Long travel Control Panel 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 24 Power supply system 53.5 69.3 85.2 101.1 117.0 53.5 69.3 85.2 101.1 117.0 53.5 69.3 85.2 101.1 117.0 53.4 69.5 85.6 101.7 117.8 Total Crane 1503.5 1939.3 2505.2 3161.1 4187.0 1615.5 2131.3 2947.2 3883.1 5129.0 1668.5 2474.3 3330.2 4320.1 6036.0 2006.4 3220.5 3932.6 5116.7 7030.8 Max.Wheel Load KN 8.8 10.1 11.6 13.2 15.8 14.7 16 18 20.4 24.3 20.8 22.8 24.8 27.3 31.4 30.6 33.5 35.2 38.1 42.8 Wheel Dia. 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 160 160 160 160 160 Model of End Carriage HSE125-15 HSE125-20 HSE125-25 HSE125-30 HSE125-35 HSE125-15 HSE125-20 HSE125-25 HSE125-30 HSE125-35 HSE125-15 HSE125-20 HSE125-25 HSE125-30 HSE125-35 HSE160-15 HSE160-20 HSE160-25 HSE160-30 HSE160-35 Gear Model SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.37 SK0282-0.55 SK0282-0.55 SK1282-0.55 SK1282-0.55 SK1282-0.55 SK1282-0.55 SK1282-0.75 Crane Wheel Qty. Pcs 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 Crane Rail 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50 30×50

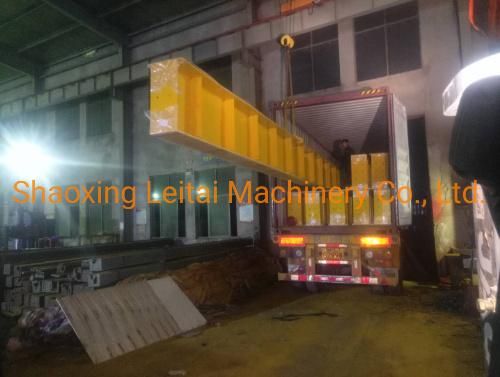

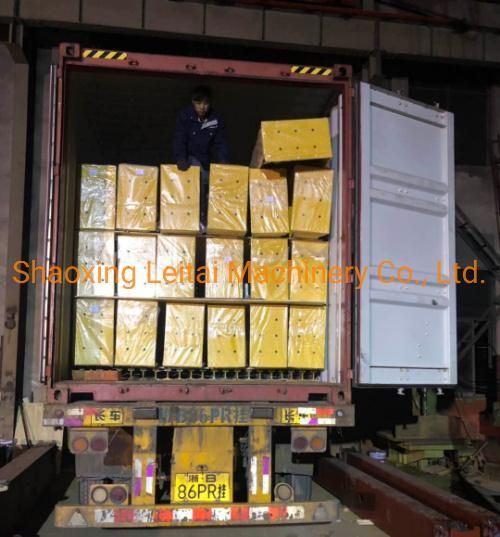

Packing:
Packing:
