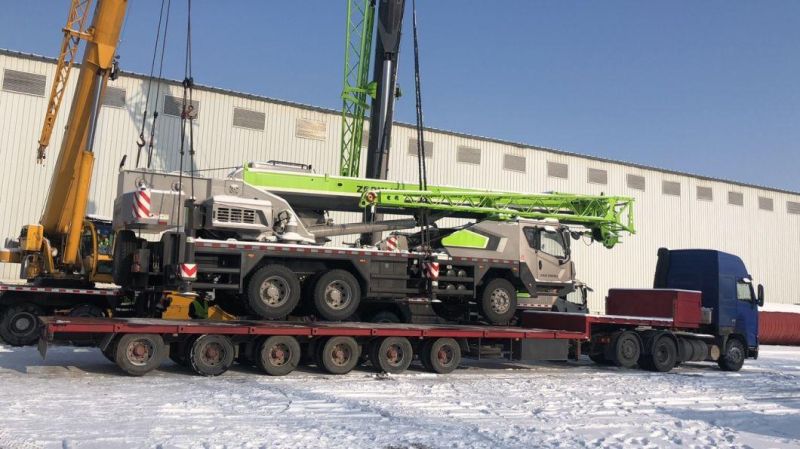

China Zoomlion 35 Ton Rt35 Rough Terrain Crane
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Four-Arm
Base Info
- Model NO.：RT35
- Type：Straight Arm
- Transport Package：Roro,Container
- Specification：Max Lifting Capacity: 30 t
- Trademark：sany
- Origin：China
- HS Code：87051091
- Production Capacity：500,Month
Description
Type
Ser. No.
Item
Unit
Value
Working performance
1
Max. rated lifting weight × working radius
kg.m
35000×3.0
2
Max. lifting moment of basic boom
kN.m
1344
3
Max.lifting moment of longest boom
kN.m
870
4
Max. lifting height of longest boom
m
31
5
Max. lifting height of jib
m
46
Dimensions
6
Outline dimensions (L×W×H)
mm
11935×2980×3600
7
Distance between outriggers (Longitudinal × transversal)
mm
6810×6800
8
Main boom length (completely retracted - completely extended)
mm
9800~31000
9
Jib length (completely retracted - completely extended)
mm
9088~15028
10
Main boom angle of elevation
°
-3~78
11
Swing range
360°continuously
Working speed
12
Max.speed of single rope on the drum of main winch
m/min
150
13
Boom extension time
s
70
14
Boom retraction time
s
75
15
Boom derricking up time
s
46
16
Boom derricking down time
s
47
17
Swing speed
r/min
0~2.5
Hydraulic system
18
Rated working pressure
MPa
27
19
Rated working flow
L/min
400
20
Hydraulic oil tank capacity
L
600
Mass
21
Complete vehicle kerb mass
kg
32000
22
Front axle load
kg
15030
23
Rear axle load
kg
16970
Traveling
24
Max. traveling speed (forwards / backwards)
km/h
38/15
25
Wheelbase
mm
3820
26
Treads (front / rear)
mm
2444
27
Max. gradeability
%
57
28
Min. turning radius (outer edge of the vehicle body)
m
6.5
29
Min. turning radius (2 wheels)
m
11.25
