• Model NO.：ZCC1300
• Traveling Speed：0-1.3 R,Min
• Gradeability：30%
• Transport Package：Roro,Container,Nude
• Specification：9.55*6.5*3.2 m
• Trademark：Zoomlion
• Origin：China
• HS Code：8426491000
• Production Capacity：50units,Month

Overview Product Description

Excellent lifting performance

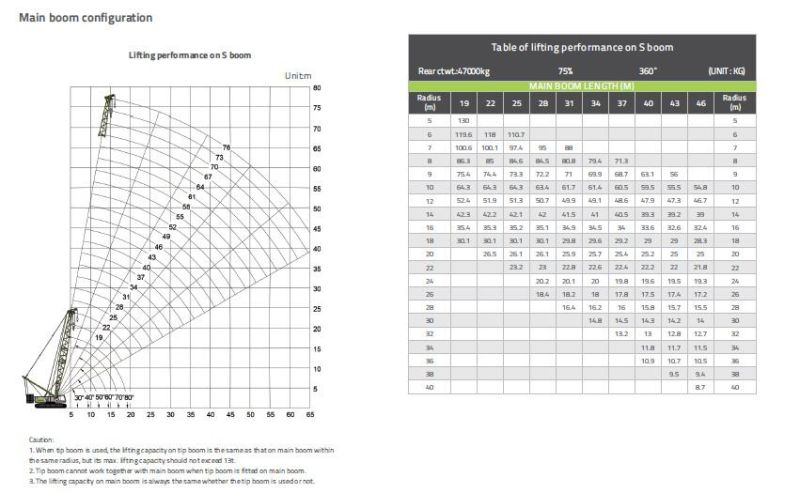

The main boom lifting capacity is full beyond main competitors in this tonnage.

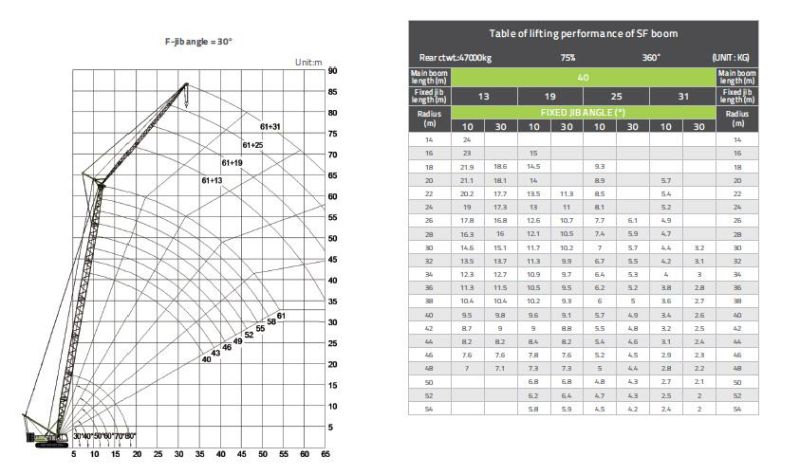

The Max. lifting capacity of fixed jib is 24t, higher than the main competing models.

Optimization of transportation, assembly and dismantling
Equipped with self-assembly cylinder, making the self-assembly function more efficient.
The max. transport weight of single part is 33.5t,and the max. width is 2.98m.
All the pendants can be transported along with the boom section ,the erecting time of whole crane will be less than 6 hours.

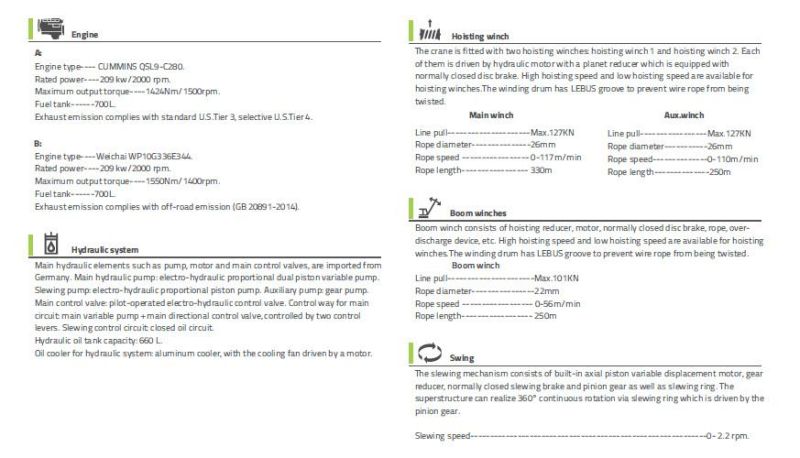

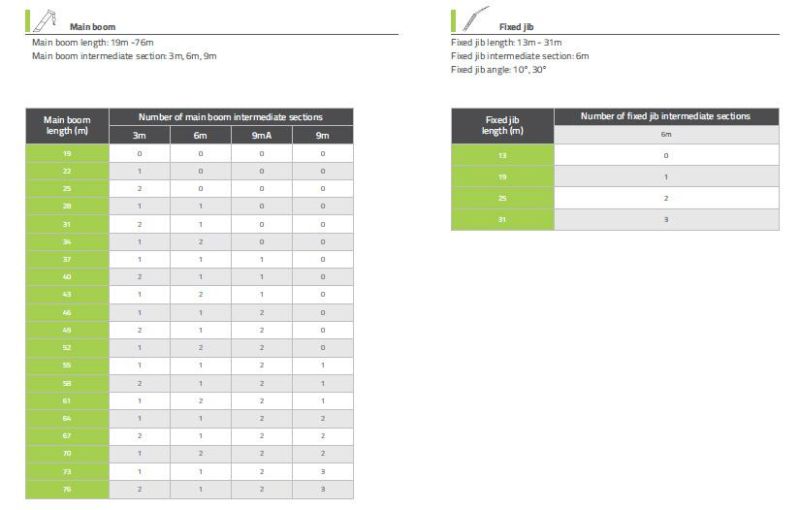

 Product ParametersItemUnitValueRemarksMaximum lifting capacity × radiust × m130 × 4.5 Maximum lifting momentt × m661.5 Deadweight of crane with basic boomt113.8 Length of main boomm19-73 Length of fixed jibm13-31 Maximum lifting capacity with fixed jibt13 Fixed jib angle.10,30 Maximum length of main boom + fixed jibm55+31,58+25,61+19 Single rope speed of winchesMain winch(hoisting winch 1)m/min105Outermost layer of drumAuxiliary Winch(hosting winch 2)) m/min93Outermost layer of drumderricking winchm/min52Outermost layer of drumSlewing speedr/min0-2.2 Traveling speedkm/h0~1.3 Gradeability%30 Ground pressureMPa0.1 Overall dimensions(L × W × H)m9.55×6.5×3.2Without A-frame and boom frameEngineRated power/rotational speedKw/rpm209/2000 Max. output torque/rotational speedNm/rpm1424/1400Exhaust emission standard U.S.EPA Tier 3Distance between track center × crawler contact length × crawler shoe widthmm5600×6850×900


Detailed Photos
