• Model NO.：ZTC700V552
• Type：Straight Arm
• Slewing  Speed：1.8r,Min
• Max. Driving  Speed：75km,H
• Max. Gradeability：37%
• Transport Package：Nude Package
• Specification：14100*2750*3750mm
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：87051091
• Production Capacity：1000pieces

Overview Product Description

Product Parameters



ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg70000 Max. load moment of basic boomkN.m2352 Max. load moment of main boom(fully extended)kN.m1098 Max. load moment of basic boomm12.2 Max. lifting height of main boomm44.2These parameters do not include deflection of main boom and jibMax. lifting height of jibm60.2Working speeds    Max. hoist rope speed(Main winch)m/min≥135Drum 4th layerMax. hoist rope speed(Auxiliary winch)m/min≥110Drum 2nd layerBoom demrricking up times57 Boom demrricking up times107 Slewing  speedr/min1.8 Driving
parametersMax. driving  speedkm/h75 Max. gradeability%37 Min. Turning diameterm24 Min.  ground clearancemm280 Oil consumption per hundred kilometersL46 MassDeadweight in driving conditionkg45000 Complete vehicle kerb masskg44870 Front axle loadkg19000 Rear axle loadkg26000 DimensionsOverall dimensions(L×W×H)mm14100×2750×3750 The longitudinal distance between outriggersm6.00 The transversal distance between outriggersmFully extended:7.6,

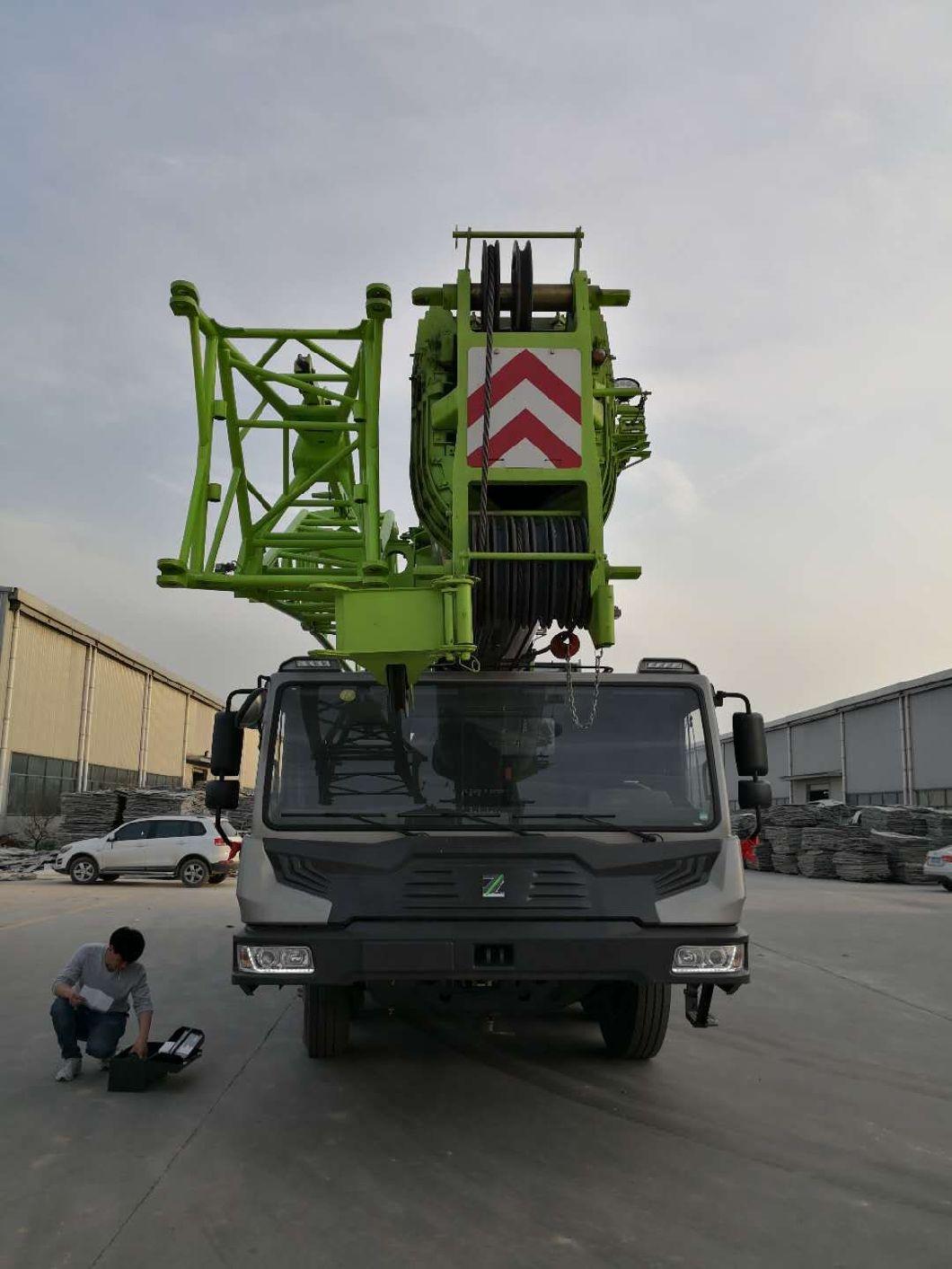

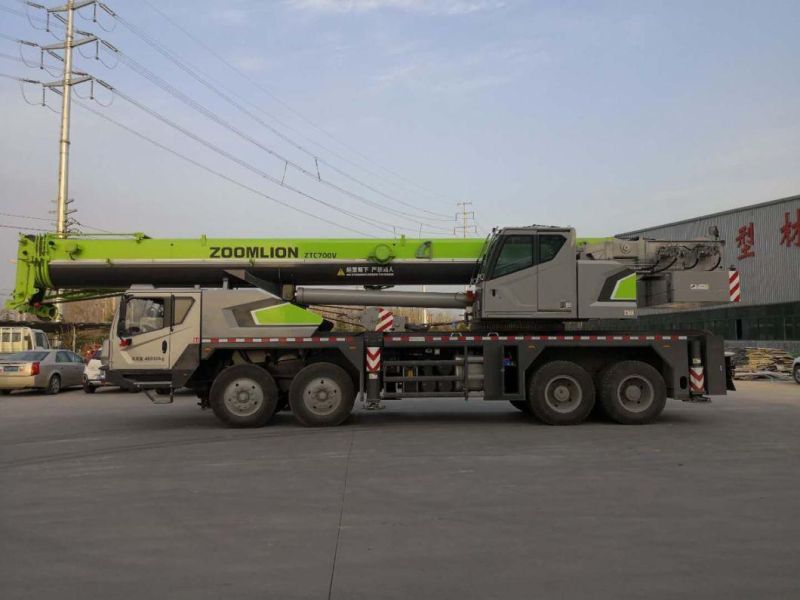

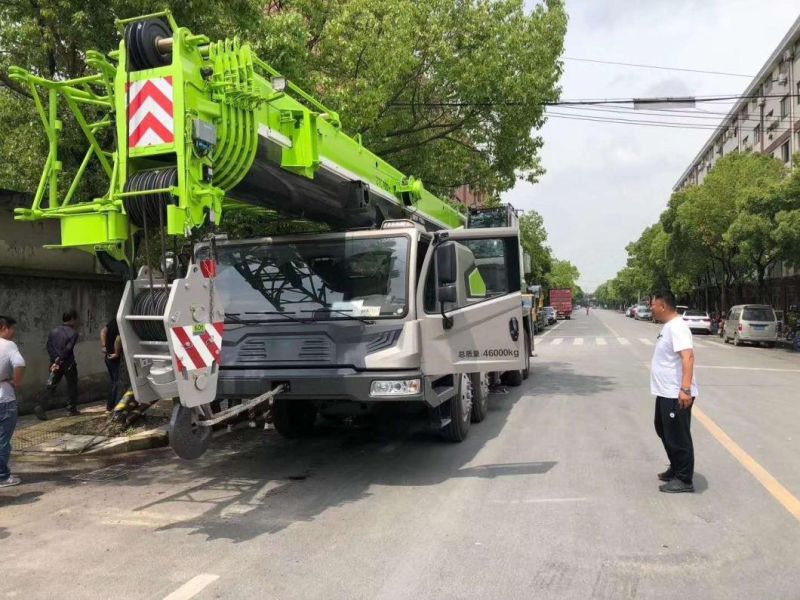

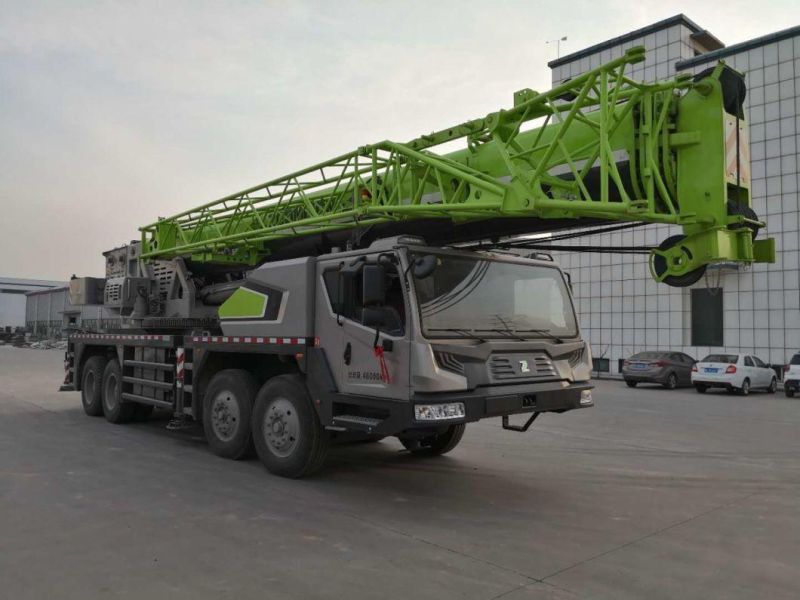

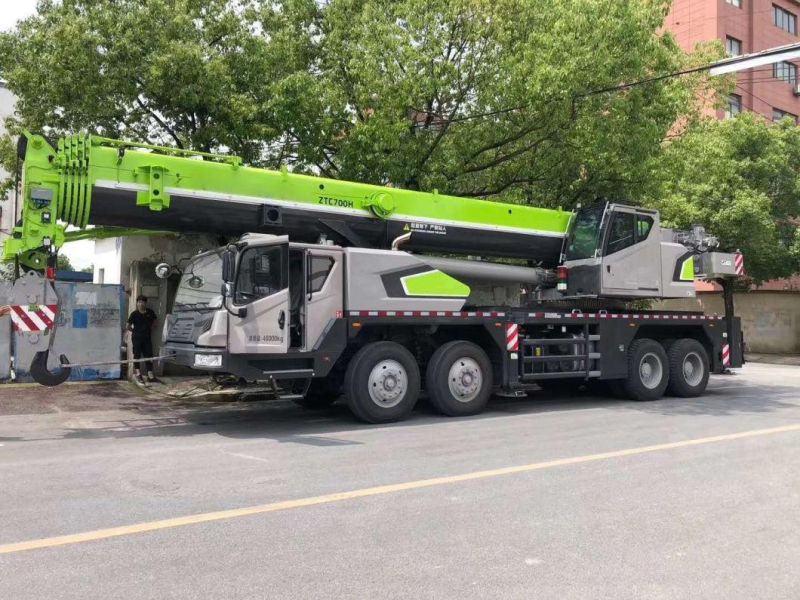

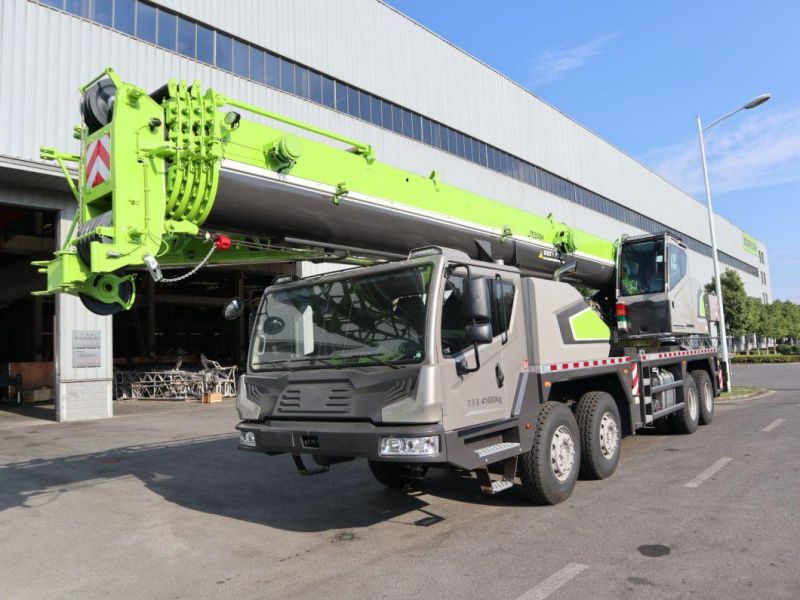

Half- extended:5.04 Tail slewing radiusmm4020 Boom lengthm11.4 - 43.0 Boom angle°-2 - 80 Jib lengthm9.5,16.0 Offset°0,30 Detailed Photos
