• Model NO.：ZTC550E552
• Type：Folding
• Product Type：Truck Crane
• Transport Package：Roro,Container,Nude
• Specification：55ton
• Trademark：Zoomlion
• Origin：China
• HS Code：8705109200
• Production Capacity：50units,Month

Overview Product Description

Product Parameters

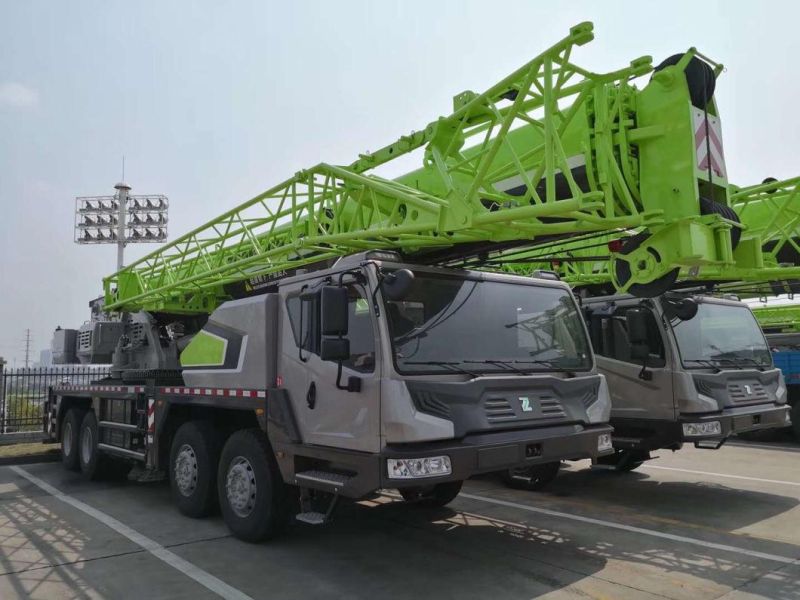

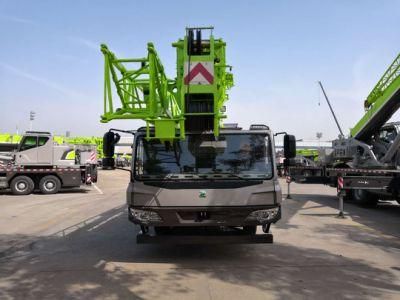

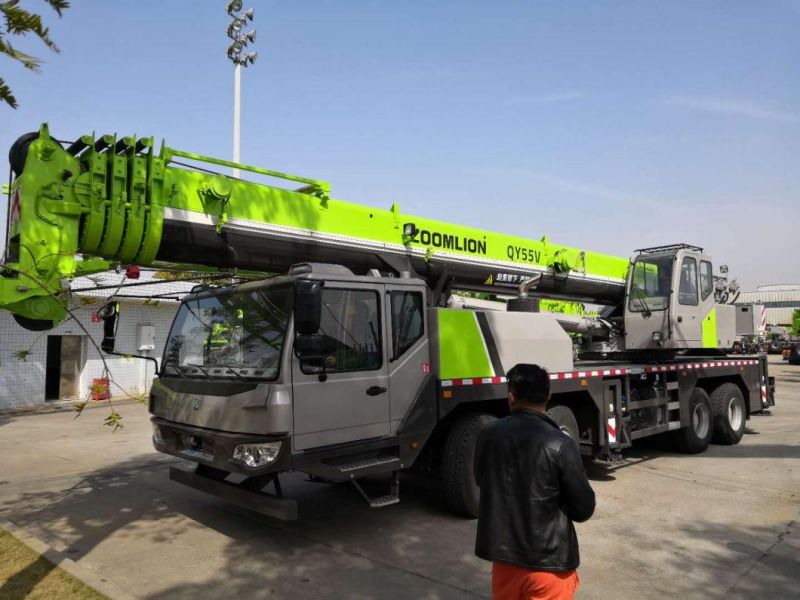

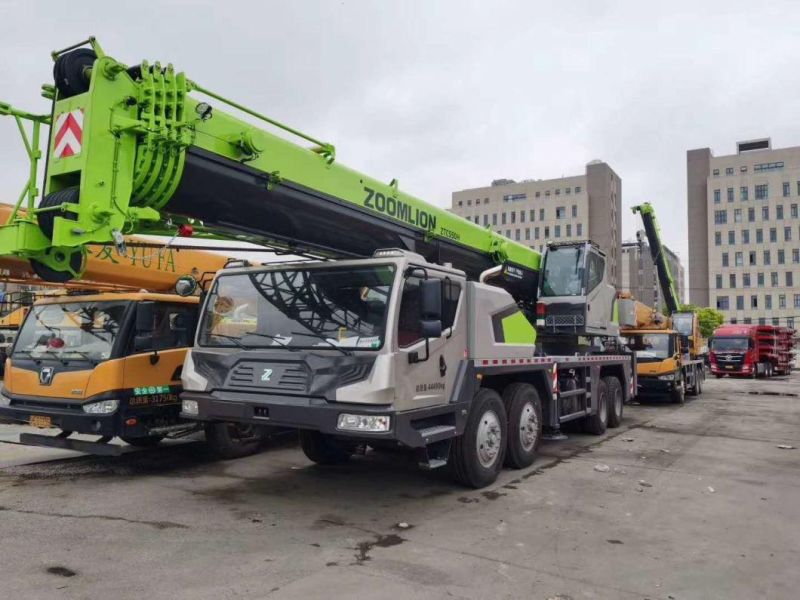

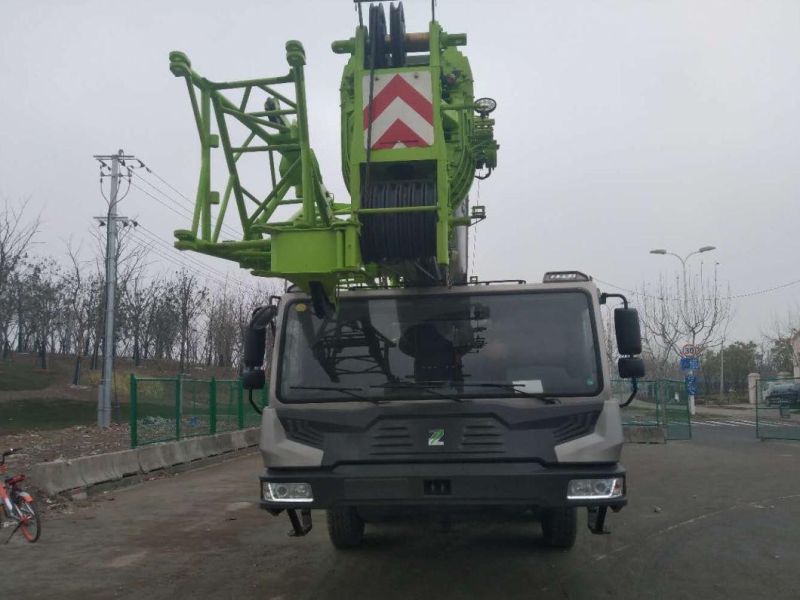

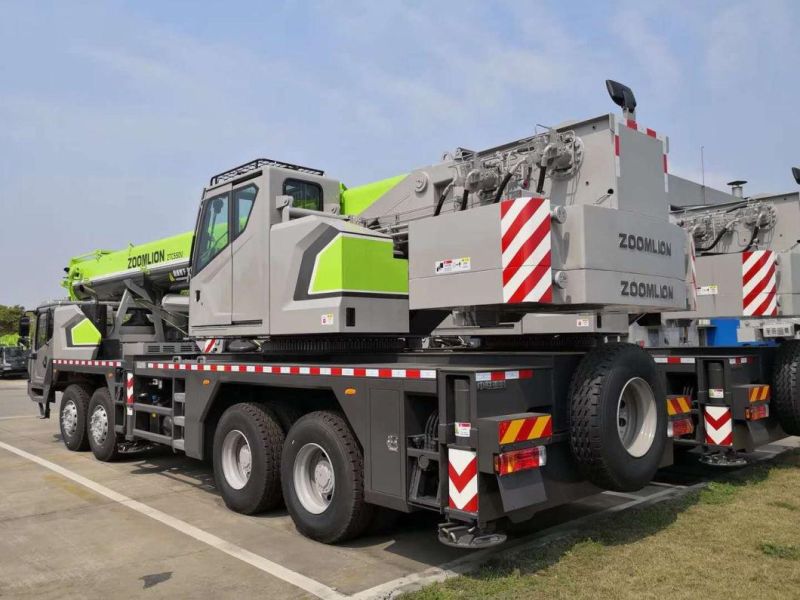

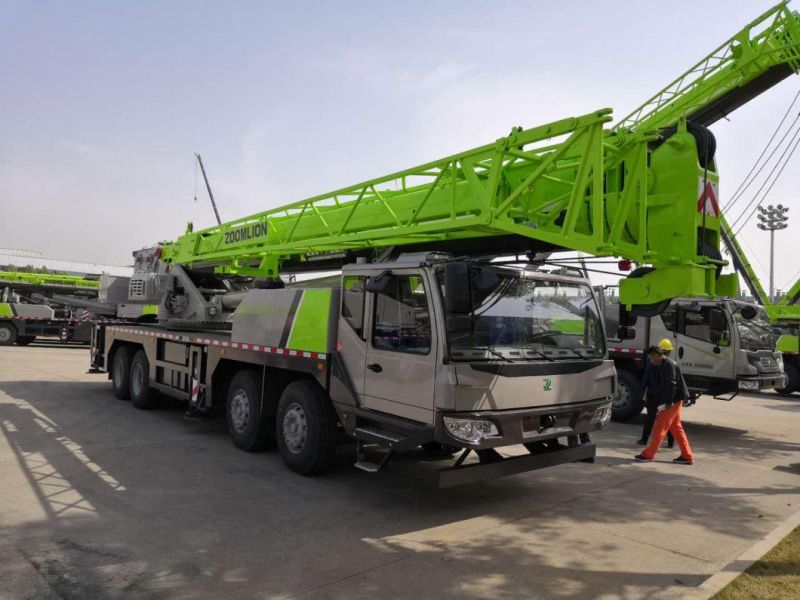

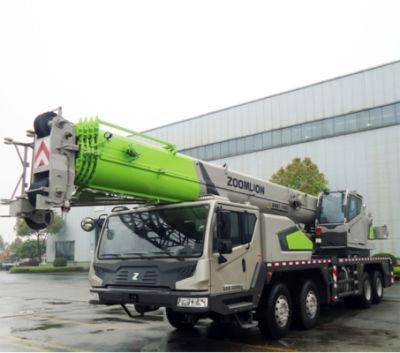

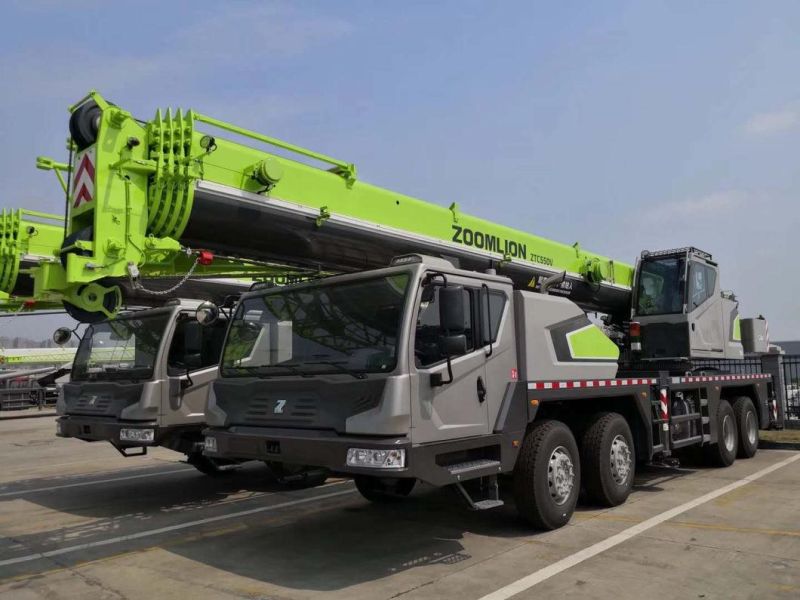

orking performanceMax. rated lifting capacitykg55000 Max. load moment of basic boomkN.m2009 Max. load moment of main boom (fully extended)kN.m1050 Max. load moment of basic boomm12.6 Max. lifting height of main boomm43.6These parameters do not include deflection of main boom and jibMax. lifting height of jibm58Working speeds    Max. hoist rope speed (Main winch)m/min120 Max. hoist rope speed (Auxiliary winch)m/min120 Boom demrricking up times50 Boom demrricking up times95 Slewing speedr/min0-2.2 Driving parametersMax. height above sea levelm2000 Max. driving  speedkm/h76 Max. gradeability%40 Min. turning diameterm≤24 Min.  ground clearancemm260 Oil consumption per hundred kilometersL43 MassDeadweight in driving conditionkg42000 Complete vehicle kerb masskg41870 Front axle loadkg16000 Rear axle loadkg26000 DimensionsOverall dimensions (L×W×H)mm13700×2800×3800 Outrigger spread (L)m5.92 Outrigger spread (W)mFully extended: 7.1, intermediately extended: 4.8 Tail slewing radiusmm3900 Main boom lengthm11.4 - 43.0 Boom angle°-2 - 80 jib lengthm9.2,14.6Low-mounted, open-typeOffset°5,25,45  Detailed Photos
