Zoomlion 100 Ton Telescopic Boom Truck Crane (ZTC1000)
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification:GS, RoHS, CE, ISO9001
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
- Shaft Number:4
- Crane Jib:Six-Arm
Base Info
- Model NO.:ZTC1000
- Type:Straight Arm
- Max. Gradeability:40%
- Max. Driving Speed:75km,H
- Min. Ground Clearance:300mm
- Transport Package:Roro,Container,Nude
- Specification:15400*3000*3950 mm
- Trademark:Zoomlion
- Origin:China
- HS Code:87051092
- Production Capacity:50units,Month
Description
Overview
Product DescriptionItem Value Remarks Work performance Max. rated lifting capacity kg 10000 At 3 m radius Max. load moment of basic boom kN.m 4000 At 5 m radius Max. load moment of main boom (fully extended) kN.m 1860 At 30 m radius Max. lifting height of basic boom m 14.0 Max. lifting height of main boom m 64.0 The parameters do not include deflection
of main boom and jib.
The value in the brackets is the value
with the extension installed. Max. lifting height of jib m 82.5 / (90.5) Work
speeds Max. hoist rope speed (Main winch) m/min. 110 At the 5th layer Max. hoist rope speed (Auxiliary winch) m/min. 75 At the 3rd layer Boom derricking up time s 70 Boom extending time s 13 Max. slewing speed r/min. 1.5 Driving Max. height above sea level m 2000 Max. driving speed km/h 75 Max. gradeability % 40 Min. turning diameter m ≤23 Min. ground clearance mm 300 Limits for exhaust pollutants and smoke Conform to related standards GB3847-2005 GB17691-2005 (National Stage ) Fuel consumption per hundred kilometers L 70 Mass Deadweight in driving condition kg 58400 Complete vehicle kerb mass kg 58205 Load on axles 1 and 2 kg 10800/10800 Load on axles 4 and 5 kg 26000(dual-axle)/10800 Dimensions Overall dimensions (L × W × H) mm 15400×3000×3950 Outrigger spread (L) m 8.05 Outrigger spread (W) m 7.6 (fully extended),

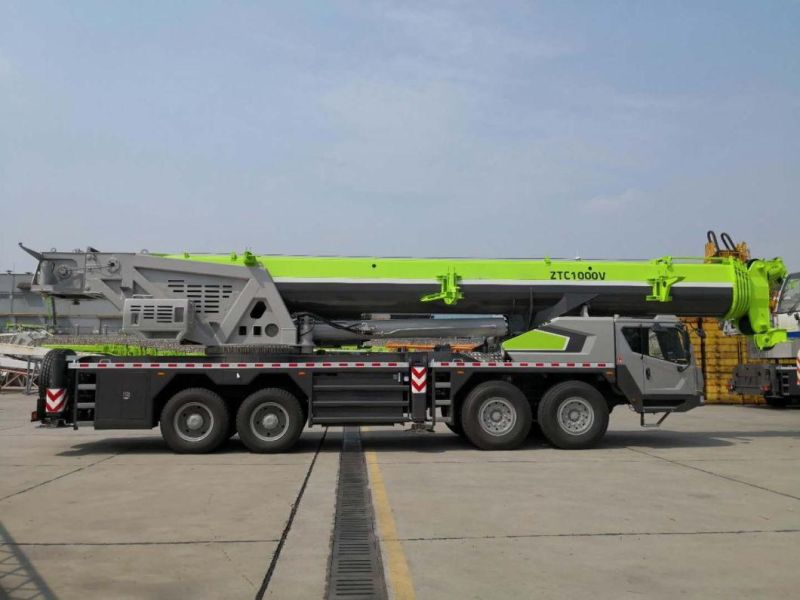

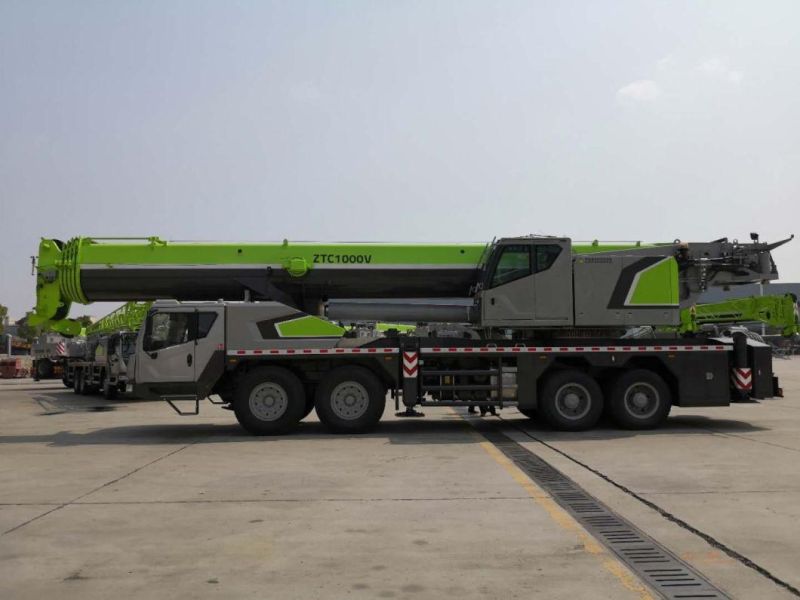

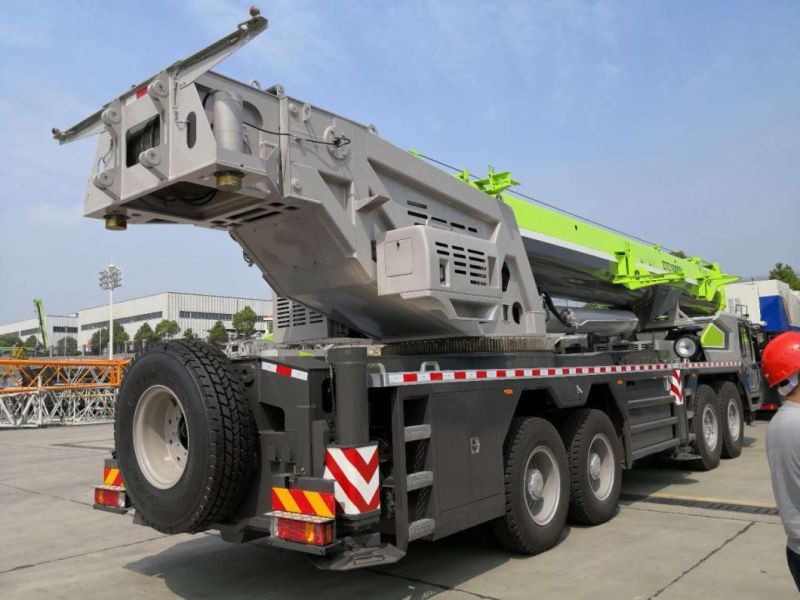

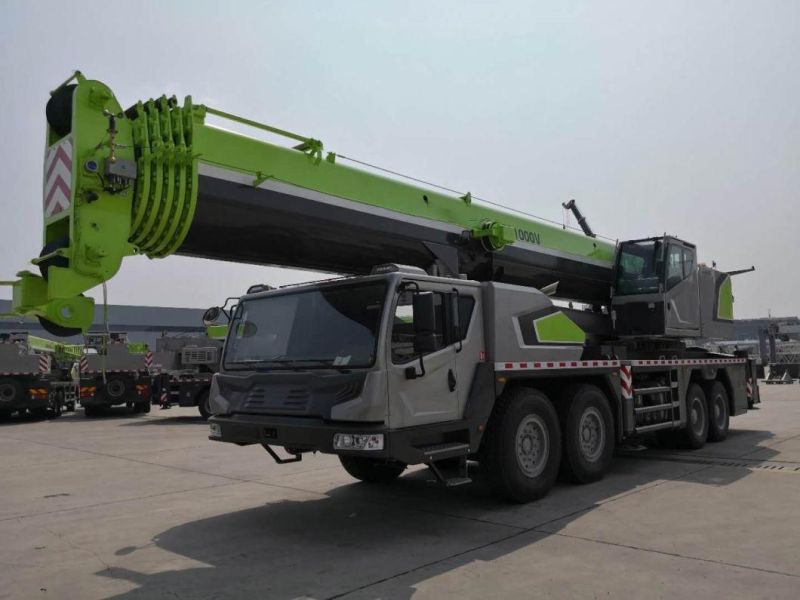

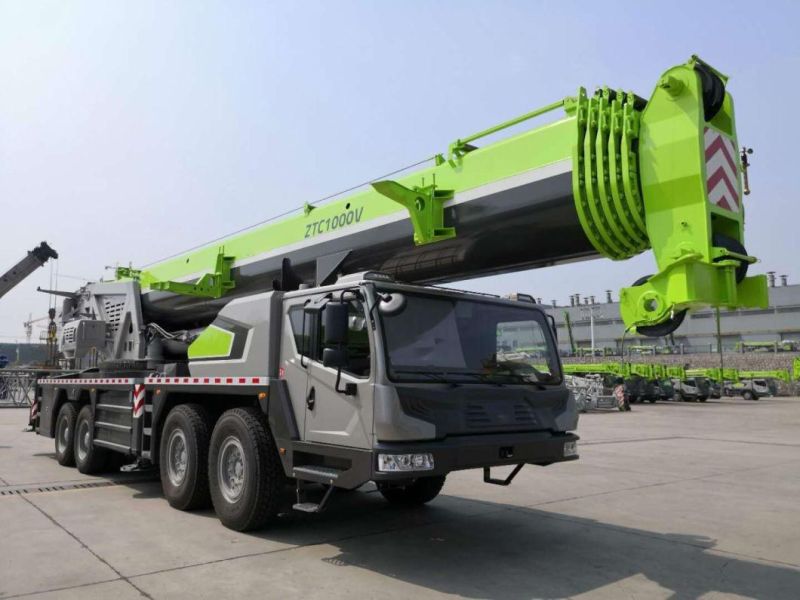

5.4 (intermediately extended) Main boom length m 13.5~63.0 Boom angle ° -0.5~82 Jib length m 11 ,18.6 Jib + extension length m 26.6 Offset ° 0 ,30 Detailed PhotosCompany Profile
