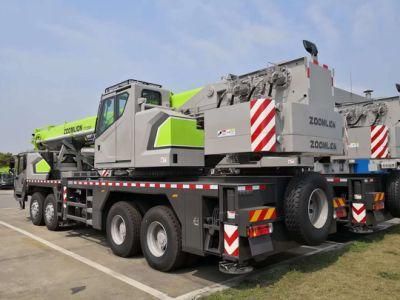

Zoomlion Rough Terrain Crane Zrt600 Wheel Crane 60ton Outstanding Performance
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：After Service,Online Contact , Spare Parts for Fre
- Warranty：One Year Warranty
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：60 Ton
Base Info
- Model NO.：ZRT600
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Max. Hoist Rope Speed (Main Winch)：150m,Min
- Complete Vehicle Kerb Mass：44260kg
- Hydraulic Oil Tank Capacity：730L
- Max. Gradeability：75%
- Front Axle Load：25220kg
- Key Word：Crane for Sale
- Transport Package：Roro,Container
- Specification：13662× 3300× 3750mm
- Trademark：Zoomlion
- Origin：Hunan, China
- Production Capacity：1000 Pieces,Per Month
Description
Item
Unit
Parameter
Max. rated lifting capacity * working radius
kg.m
6000*2.8
Max. load moment of basic jib
kN.m
1991
Max. load moment of max. length main boom
kN.m
1166
Max. lifting height of max. length main boom
m
45.4
Max. lifting height of jib
m
62.2

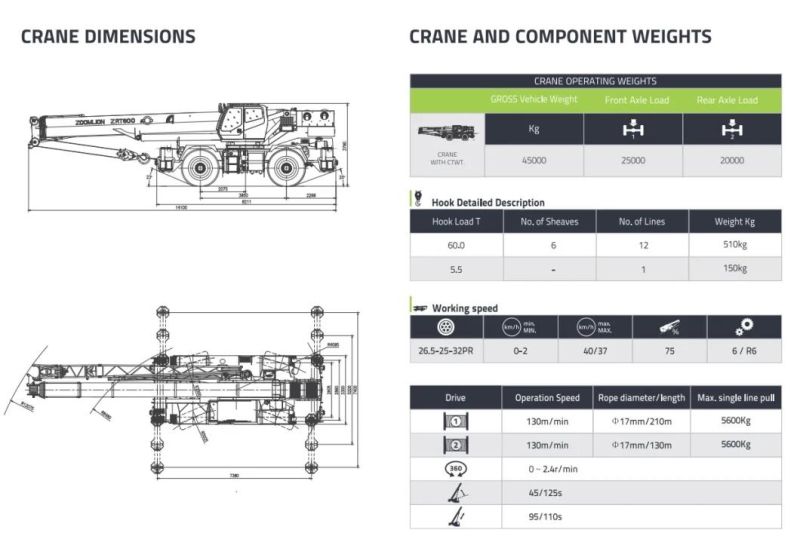

Overall dimensions
mm
13662*3300*3750
Distance between outriggers (Longitudinal* transversal)
mm
6900*6900
Main boom length (Completely retracted - completely extended)
mm
11400~43000
Jib length(Jib section 1 - jib section 1 + jib section 2)
mm
10000~17000
Boom angle
°
-3~78
Swing range
360°unlimited swing(Full range)
Max. hoist rope speed (Main winch)
m/min
150
Min. boom telescoping out time
s
140
Min. boom telescoping in time
s
120
Min.boom derricking up time
s
60
Min.boom derricking down time
s
65
Swing speed
r/min
0~2
Rated working pressure
MPa
28
Rated working flow
L/min
400
Hydraulic oil tank capacity
L
730
Complete vehicle kerb mass
kg
44260
Front axle load
kg
25220
Rear axle load
kg
19040
Max. driving speed (Forwards / backwards)
km/h
39
Wheelbase
mm
3950
Treads(Front / Rear)
mm
2605
Max. gradeability
%
75
