Zoomlion 30 Ton Truck Crane (ZTC300) with Euro VI Pick-up Crane for Sale

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：After Service,Online Contact , Spare Parts for Fre
  • Warranty：One Year Warranty
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t

Base Info

  • Model NO.：ZTC300H562
  • Shaft Number：4
  • Crane Jib：Five-Arm
  • Type：Folding
  • Product Type：Truck Crane
  • Main Boom：42 M
  • Jib Boom Section：10.5 M
  • Lifting Height：52 M
  • Transport Package：Roro,Container,Nude
  • Specification：30t
  • Trademark：Zoomlion
  • Origin：China
  • HS Code：8705109200
  • Production Capacity：50units,Month

Description

Overview Product Description

Product Parameters  ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg30000 Max. load moment of basic boomkN.m990 Max. load moment of main boom(fully extended)kN.m624 Max. lifting height of main boomm42.1The parameters do not include deflection of main boom and jibMax. lifting height of jibm50Working speeds              Max. hoist rope speed(Main winch)m/min120At the 4th layerMax. hoist rope speed(Auxiliary winch)m/min120At the 4th layerBoom d-e-r-r-i-c-k-i-n-g up times25 Boom telescoping out times84 Slewing speedr/min

0 - 2.7

 Driving    parametersMax. driving speedkm/h90 Max. gradeability%42 Min turning diameterm≤20 Min. ground clearancemm260 Oil consumption per hundred kilometersL28 MassDeadweight in driving conditionkg32510 Complete vehicle kerb masskg32389 Front axle loadkg6610 Rear axle loadkg25900 DimensionsOverall dimensions(L×W×H)mm13150×2500×3450 Longitudinal distance between outriggersm5.4 Transversal distance between outriggersmFully extended: 6.20m  Intermediately extended: 4.25m Tail slewing radiusmm3265 Main boom lengthm10.7 - 42.0 Boom angle°-2 - 80 jib lengthm8.0 Offset°0/15/30

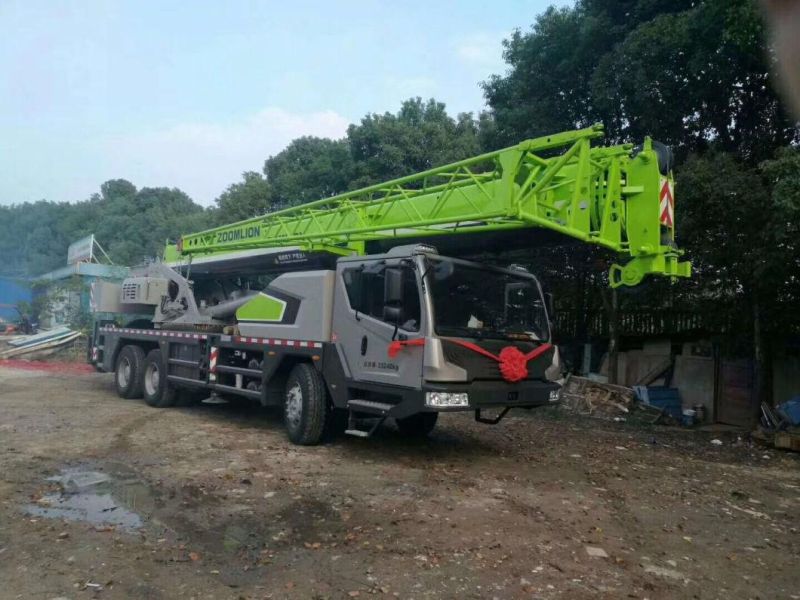

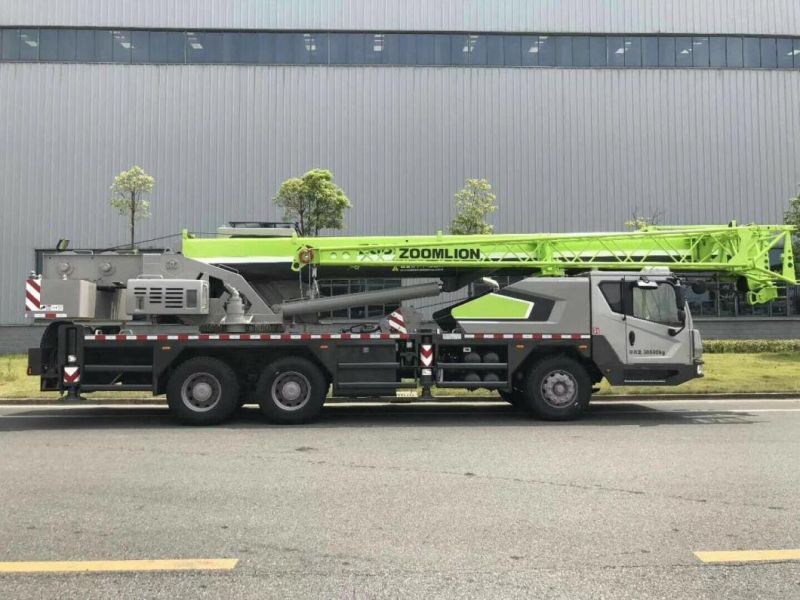

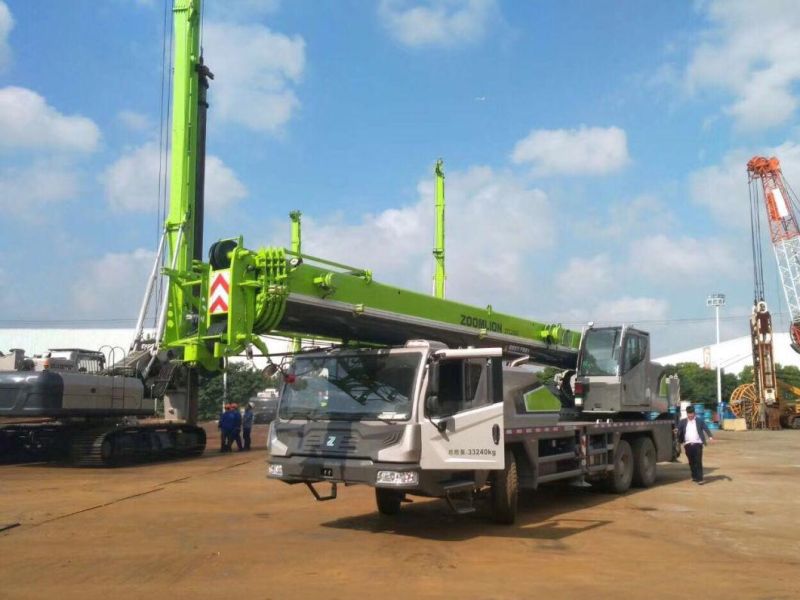

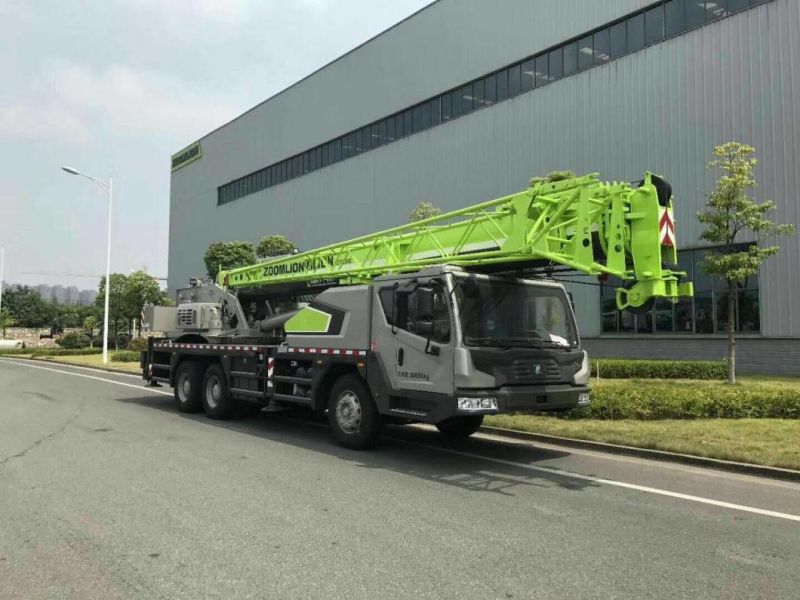

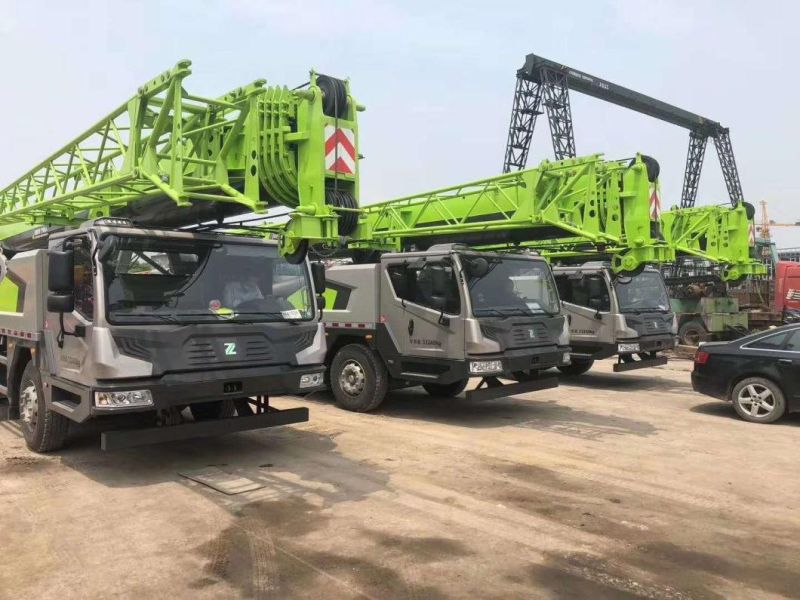

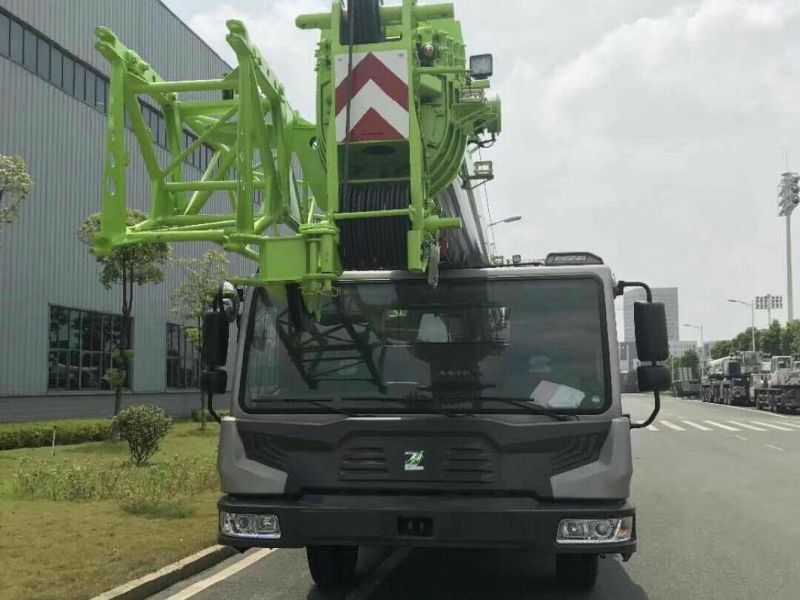

Detailed Photos
