• Model NO.：SATMC5
• Anchor：Removable
• Structure：5 Ton
• Material：Steel
• Type：Cantilever
• Max Lifting Moment：12.5 TM
• Boom Length：4.09~11.2
• Max Lifting Height：12.6 M
• Derrick Range：0~75
• Outrigger Span：2280~5100 mm
• Max Lifting Capacity：5000kg
• Transport Package：Roro Ship
• Specification：5000kg
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8426910000
• Production Capacity：800PCS , Year

Basic Info.

Model NO. SATMC5 Anchor Removable Structure 5 Ton Material Steel Type Cantilever Max Lifting Moment 12.5 TM Boom Length 4.09~11.2 Max Lifting Height 12.6 M Derrick Range 0~75 Outrigger Span 2280~5100 mm Max Lifting Capacity 5000kg Transport Package Roro Ship Specification 5000kg Trademark Super-above Origin Jiangsu, China HS Code 8426910000 Production Capacity 800PCS / Year

Product Description

Product Descriptions

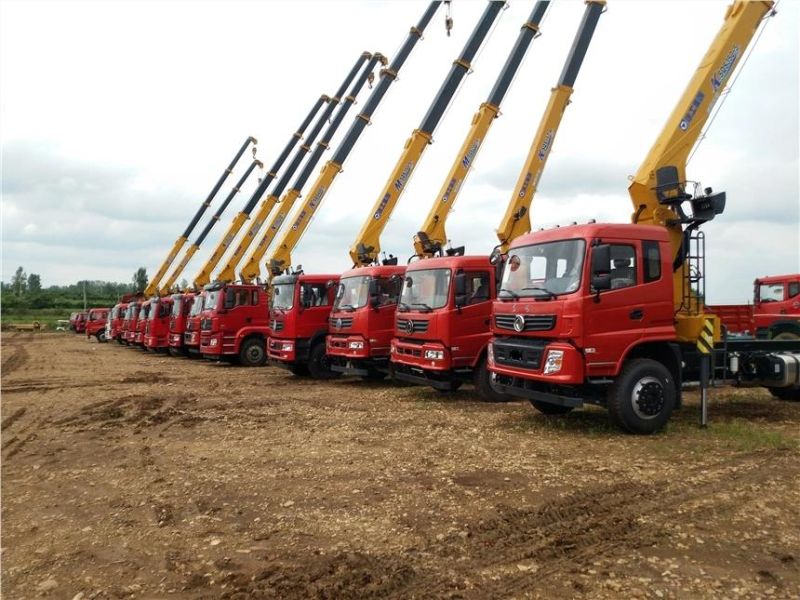

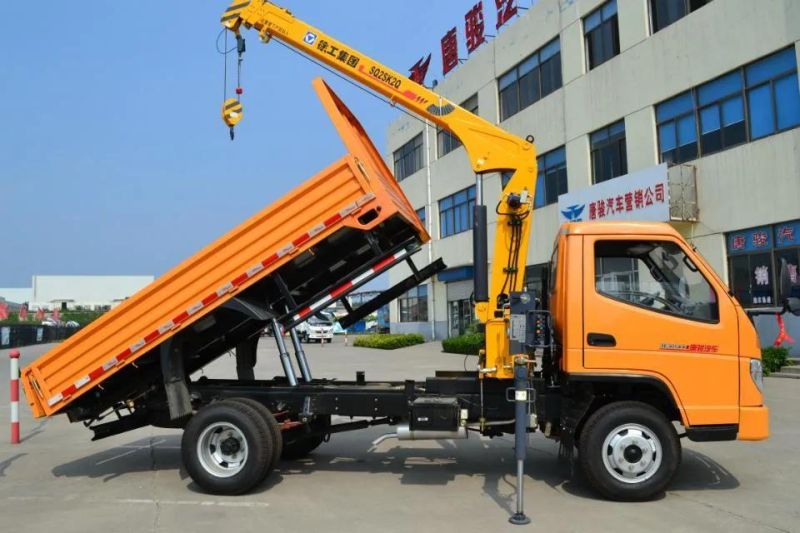

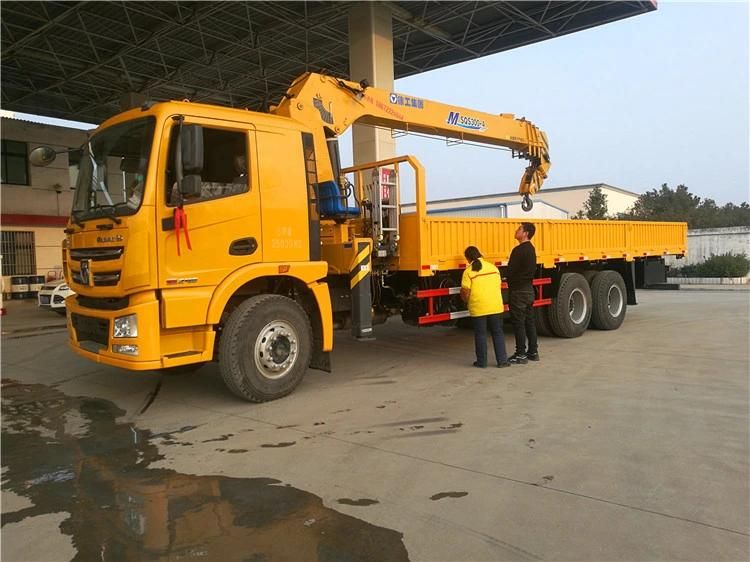

5-ton Truck Mounted Crane
A truck-mounted crane is grouped together as a means of transport. By the boom, lifting torque, frame, legs
and other parts. Crane left and right operation can be both positive and negative.

360-degree rotation can also be full rotation. Compared special crane trucks with crane, with a high speed,
climbing ability characteristics. Enables fast movements, efficiency, energy-saving.With a flexible, easy to
operate, efficient, safe, and reliable.




Parameters

Ltem	Unit	References
Max Lifting Moment	t*m	12.5
Max Lifting Capacity	kg	5000
Boom Length	m	4.09~11.2
Max Lifting Height	m	12.6
Derricking range	°	0~75°
Outrigger span	mm	2280~5100
Size(length×width×height)	mm	4365×2430×3017

Features

1.Throttle Control System

        Changing the form of the previous manipulation and throttle operation individually, the Realization of the bilateral
handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,
it can easily carry out the lifting work.

2.End position automatic hook device

        Maximum savings in preparation time before and after the operation, to ensure that the customer's vehicle
could be in a driving state in the shortest time and prevent crane damage accident caused by hoist swing to
enhance the safety of driving.

3. Hoisting overwinter device

        If a user is negligent or unfamiliar with the operation of lifting hooks, the hoisting overwinter device will stop
hook-raise in time, to prevent the safety of personnel and property caused by the fracture of wire rope.

4.Slewing locking device

        Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during
the driving and steering process of the vehicle, to avoid all kinds of accidents caused by swaying.

5.Torque limiter

        It can select a torque limit overload protection device to prevent users because of  negligence or unfamiliar
with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage
accidents.
