New 3 Ton 8m Mini Micro Telescopic Boom Crawler Crane Spider Crane Kb3.0
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service:,
- Max. Lifting Height:12m
- Rated Loading Capacity:3t
- Certification:ISO9001, CE
- Condition:New
- Warranty:12months
Base Info
- Model NO.:KB3.0
- Capacity:2.95tx1.3m
- Working Radius:8.3m
- Lifting Height:9.2m
- Hook Speed:0-6.5m,Min Times
- Rope Type:7.7mm×45m
- Boom Form:Full Automatic 5 Section
- Boom Length:8.92 M
- Boom Angle:0°-75°
- Slew Angle:360°continuous,1.0rpm
- Maximum Extended Dimensions:3900mm×3750mm
- Walking Speed:0-2.9km, H 0-2km,H
- Ground Length×width:1010mm×200mm×2
- Grade Ability:20°
- Ground Pressure:51kpa
- Weight:2050kg
- Transport Package:Nude
- Specification:2900*800*145 mm
- Trademark:,
- Origin:China
- HS Code:8425429000
- Production Capacity:500pices,Year
Description
IP-67

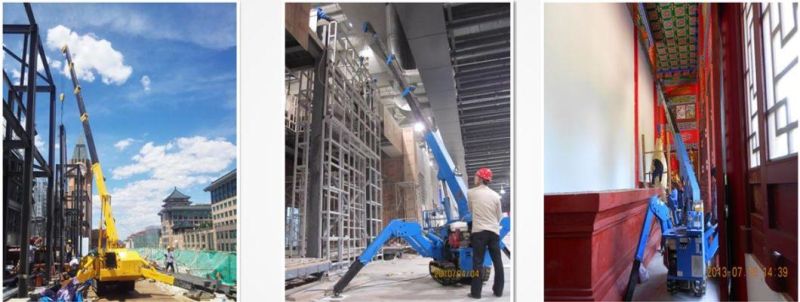

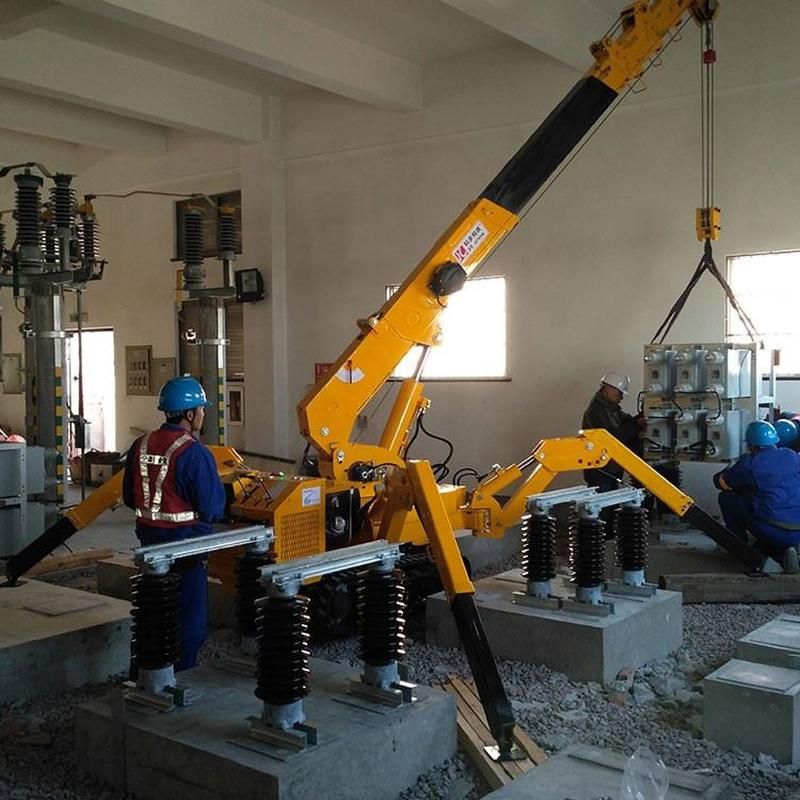

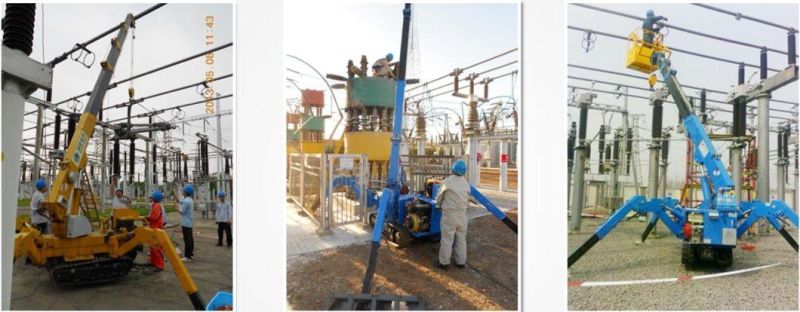

Details Images

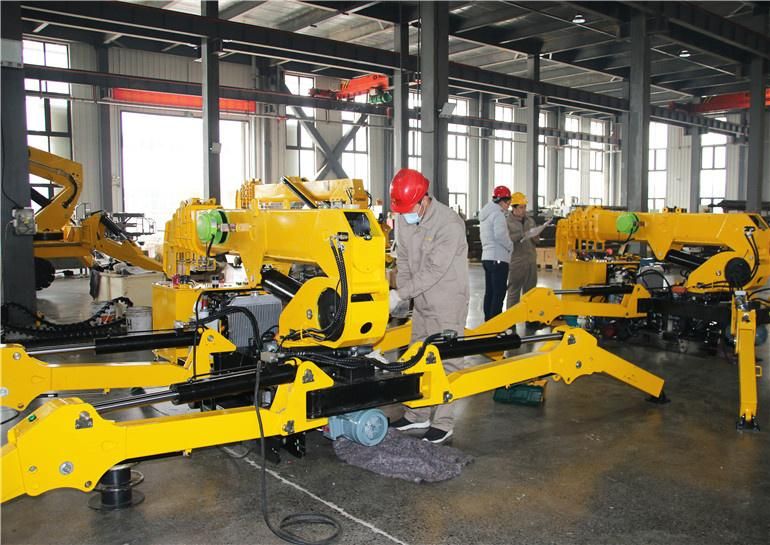

Company Profile
