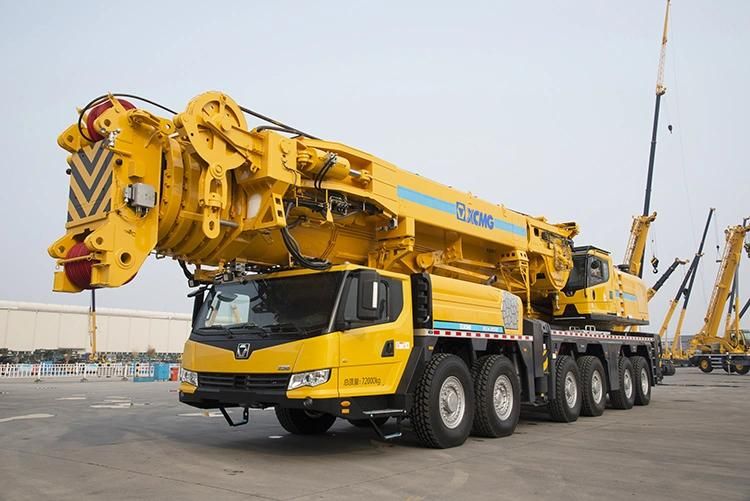

• Model NO.：XCA350
• Type：Straight Arm
• Dead Weight in Travel Configuration：72000 Kg
• Superstructure Engine：Om906la.E3a,1
• Rated Power：205,2200 Kw,(R,Min)
• Max. Torque：1100,1200~1600 N.M,(R,Min)
• Travel Speed：80 Km,H
• Min. Turning Diameter：23m
• Min. Ground Clearance：280 mm
• Max. Grade Ability：57 %
• Transport Package：Nude Package
• Specification：17654*3000*4000 mm
• Origin：China
• HS Code：87051023
• Production Capacity：10000

CategoryItemUnitParameter



Outline DimensionsOverall lengthmm17654Overall widthmm3000Overall heightmm4000

Wheel baseAxles 1 and 2mm1650Axles 2 and 3mm3100Axles 3 and 4mm1650Axles 4 and 5mm2440Axles 5 and 6mm1650Trackmm2590

WeightDead weight in travel configurationkg72000
Axle loadAxles 1 and 2kg12000Axles 3 and 4kg12000Axles 5 and 6kg12000


Power
Superstructure engineModel--OM906LA.E3A/1Rated powerkw/(r/min)205/2200Max. torqueN.m/(r/min)1100/1200~1600
Chassis engineModel--OM502LA.E3B/2Rated powerkw/(r/min)442.6/1800Max. torqueN.m/(r/min)2800/1300





Travel
Travel speedMax. travel speedkm/h≥80Min. stable travel speedkm/h≤2Min. turning diameterm≤23Min. ground clearancemm280Approach angle°16Departure angle°15Braking distance (at 30 km/h)m≤10Max. grade ability%≥57Oil consumption per 100 kml89.2Contact Me:
