• Model NO.：BZD
• Type：Cantilever
• Lifting Speed：8 M,Min
• Hoist Running Speed：20 M,Min
• Rotating Speed：0.7 R,Min
• Working Radius：3~8 M
• Lifting Height：5~10 M
• Industrial Voltage：3AC 220V~480V 50,60Hz
• Warranty：1 Year
• Color：Customized
• Working Class：A3,1bm
• Sling Type：Wire Rope, Chain
• Transport Package：Special Waterproof Plastic Close for Expor, 40hc
• Specification：5 ton
• Trademark：NYBON
• Origin：Henan, China
• HS Code：84263000
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. BZD Type Cantilever Lifting Speed 8 M/Min Hoist Running Speed 20 M/Min Rotating Speed 0.7 R/Min Working Radius 3~8 M Lifting Height 5~10 M Industrial Voltage 3AC 220V~480V 50/60Hz Warranty 1 Year Color Customized Working Class A3/1bm Sling Type Wire Rope/ Chain Transport Package Special Waterproof Plastic Close for Expor, 40hc Specification 5 ton Trademark NYBON Origin Henan, China HS Code 84263000 Production Capacity 200 Sets/Year

Product Description

Fixed pillar electric hoist cantilever crane 5 ton

Description:

Fixed pillar electric hoist cantilever crane 5 ton is a crane which is used with PK type electric chain hoist or CD, MD type electric hoist. It consists of column, swing jib, electric hoist, drive device and electrical control system.

The bottom of column is fixed on the concrete foundation by the anchor bolts, driving device is driven by the motor to rotate swing jib, and the electric hoist reciprocates and runs on swing jib.

Jib crane has the advantages of simple structure, convenient operation, small occupation space and large working range. And was widely used in machinery manufacturing, automotive, shipbuilding and other modern industrial production lines, assembly lines and warehouses, docks, laboratories and other materials handling operations. It Is an ideal lifting equipment for improving work efficiency and working conditions for the enterprise.

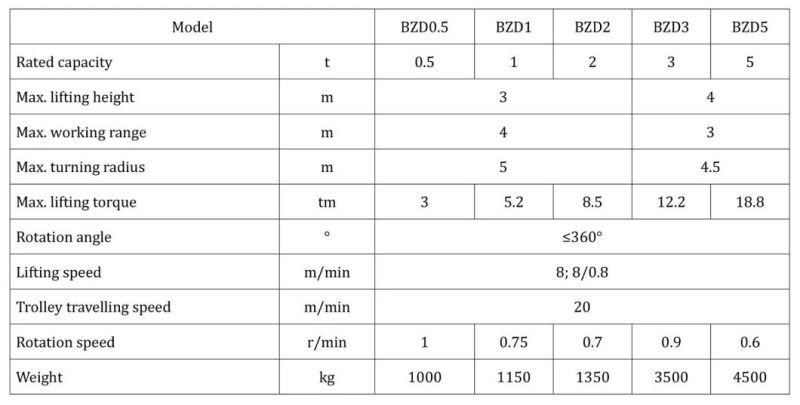

Main technical parameter
Jib crane is a light duty lifting equipment, and its rated capacity have six specifications of 0.5t, 1t, 2t, 3t, 5t and 10t . According to  different working requirements, we can choose different models of cranes. This kind of machine has two types of manipulation: electric and manual operation. Rotary arm rotation angle can be chosen from 180 °, 270 °, 345 °, 360 ° according to your usage.

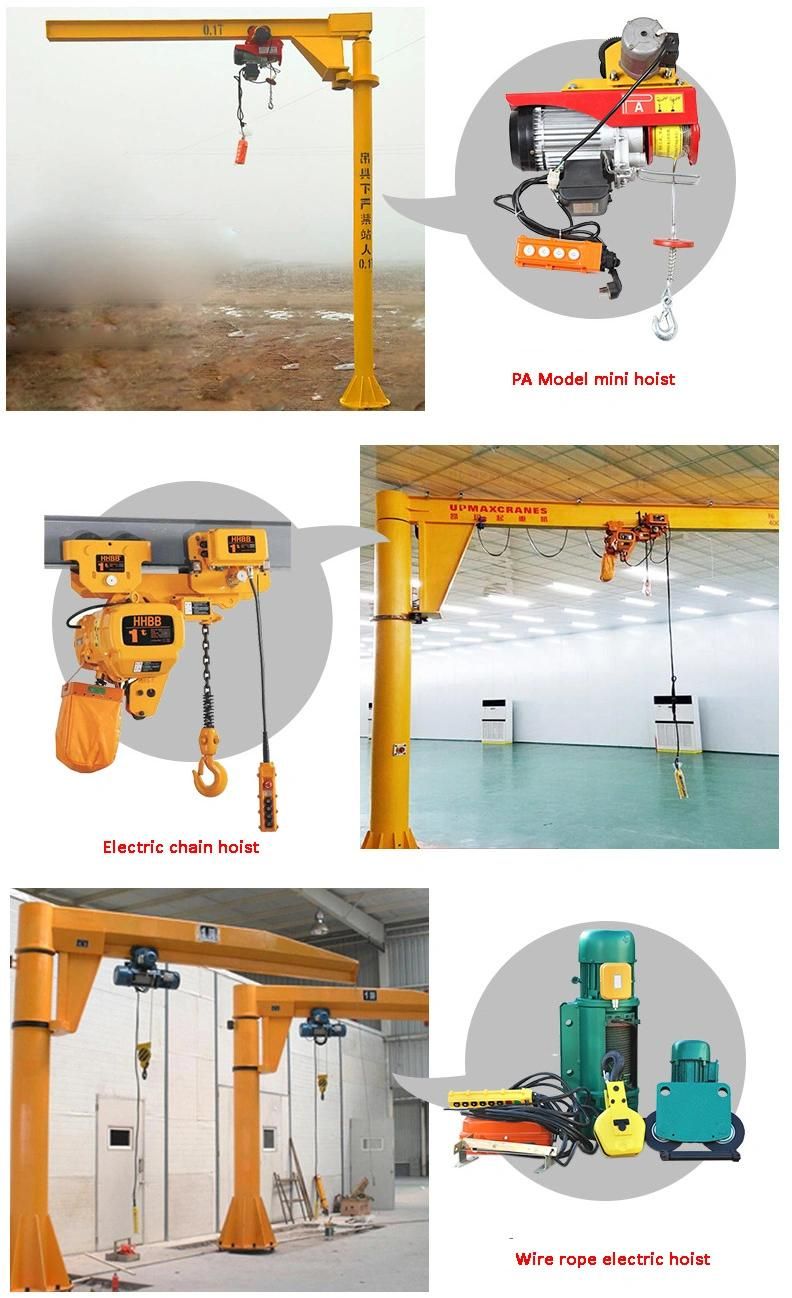

Used with various electric hoist:

Jib crane can be used with mini hoist, wire rope electric hoist and electric chain hoist.

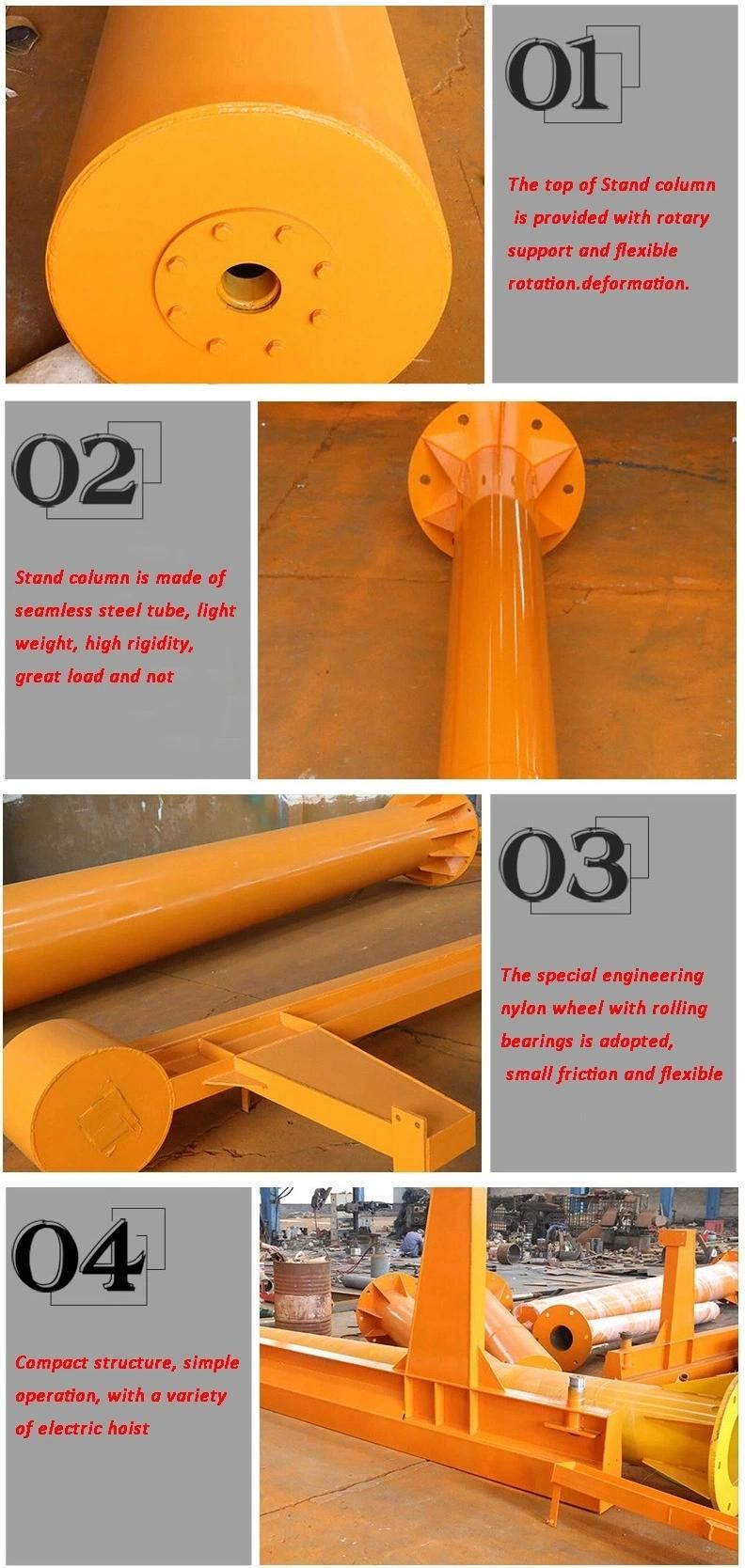

Product feature:

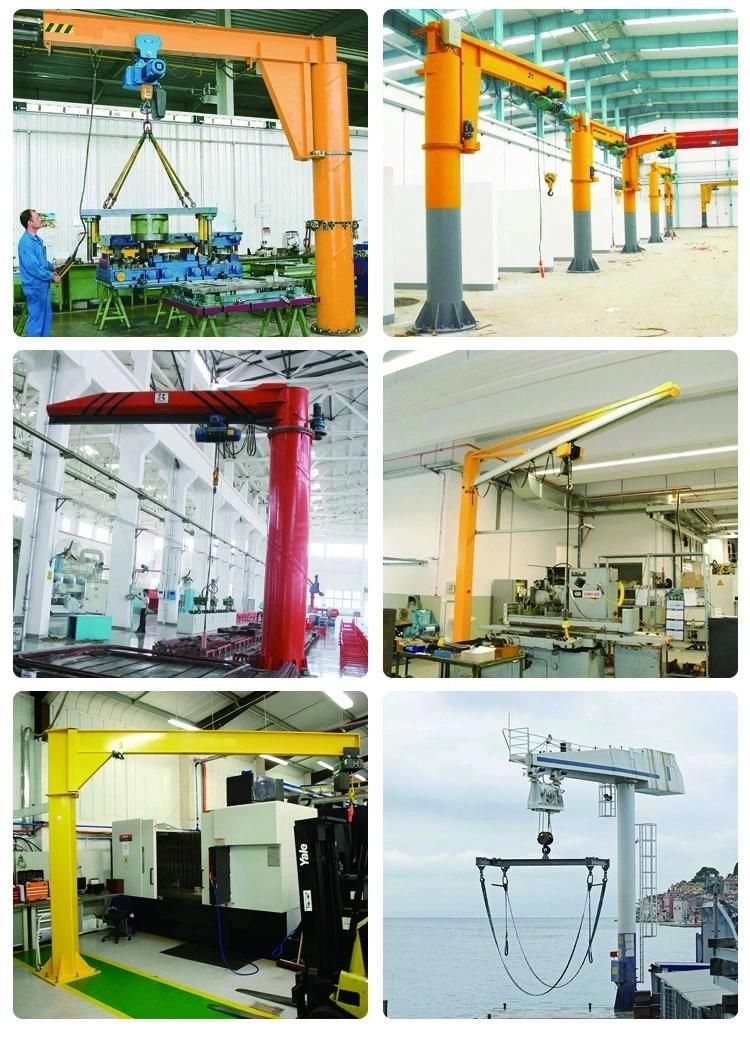

Application:

1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?

A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: What's your warranty period?

A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

A: Yes; We have;

6. Q: What kinds of products do you have?

A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty,
we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch,
wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
