8 Ton Truck Mounted Crane Sqs200-4

Maxizm Construction Machinery (Qingdao) Co., Ltd.
  • Certification：GS, RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：>16t
  • Shaft Number：3
  • Crane Jib：Two-Arm

Base Info

  • Model NO.：SQS200-4
  • Type：Straight Arm
  • Front Axle Load：7000kg
  • Rear Axle Load：13000kg
  • Model：D10.28-40
  • Rated Power：204kw
  • Transport Package：Nude Packing
  • Specification：7990*2496*3311 mm
  • Trademark：XCM_G
  • Origin：Xuzhou
  • HS Code：84295100
  • Production Capacity：1000units,Month

Description

Item

Parameters

Unit

Capacity

Max. lifting capacity

10

t

Dimensions

Overall length

7990

mm

Overall width

2496

mm

Overall height

3311

mm

Axles

2



Axle distance-1,2

4600

mm

Axle distance-2,3

--

mm

Weight

Overall weight

20000

kg

Front axle load

7000

kg

Rear axle load

13000

kg

Engine

Model

D10.28-40



Rated power

204

kW

Rated torque

1190

Nm

Emissions

EURO IV



Traveling

Max. traveling speed

102

km/h

Approach angle

16

°

Departure angle

26

°

Max. gradeability

30

%

Main Performance

Rated lifting moment

75.0

kN.m

Max.outreach

9.6

m

Slewing torque

9.0(0.9)

kN.m(mt)

Slewing angle(continuous)

400

°

Operating pressure

31.5(315)

Mpa(bar)

Pump capacity

25-35

l/min

Air conditioner

HVAC in low cab

Cooling / Heating

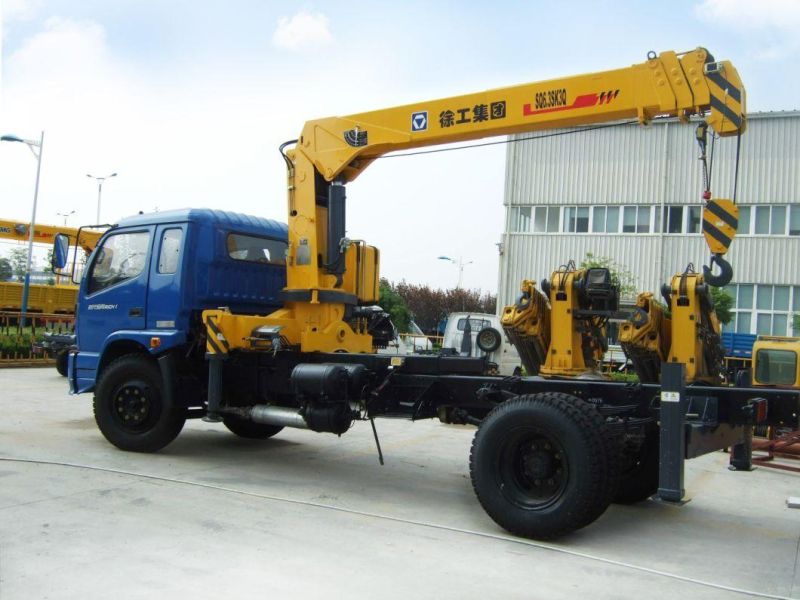

8 Ton Truck Mounted Crane Sqs200-4

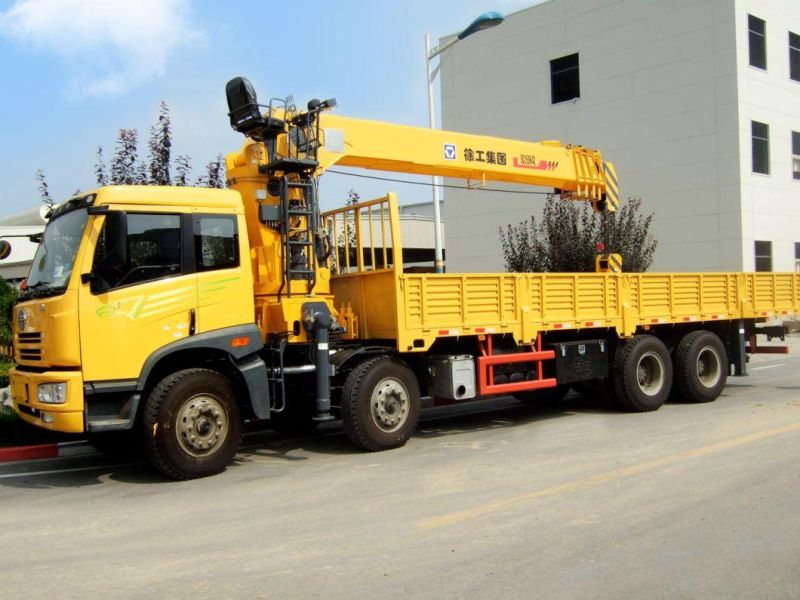

8 Ton Truck Mounted Crane Sqs200-4
