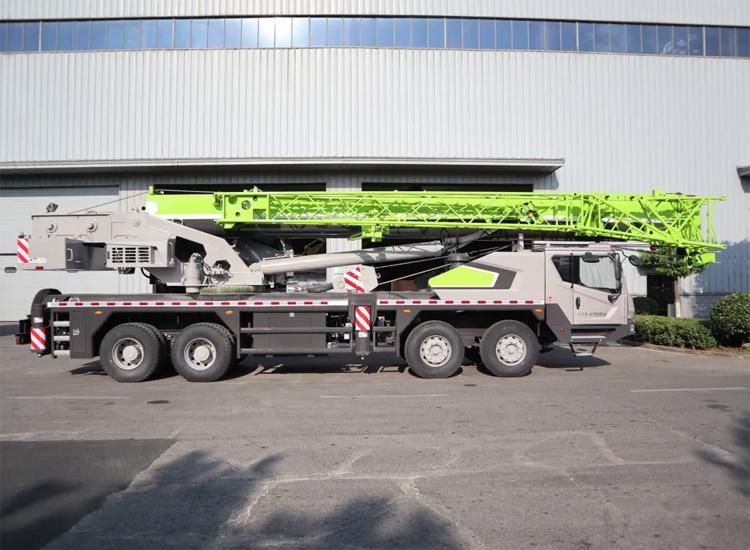

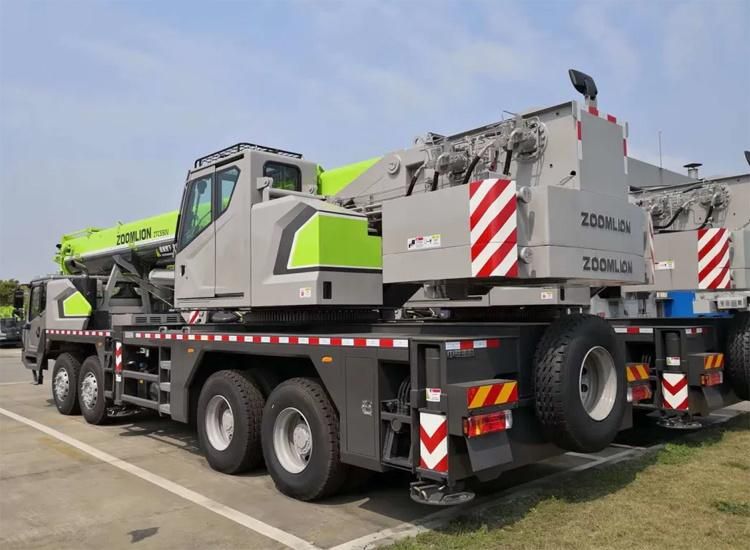

Zoomlion 16t Hydraulic Mobile Qy16V431r Truck Crane
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：14-16t
- Shaft Number：4
- Crane Jib：Five-Arm
Base Info
- Model NO.：QY16V431R
- Type：Folding
- Max. Hoist Rope Speed (Main Winch)：120m,Min
- Max. Driving Speed：75km,H
- Min. Ground Clearance：250mm
- Oil Consumption Per Hundred Kilometer：30L
- Deadweight in Driving Condition：23000kg
- Front Axle Load：6200kg
- Rear Axle Load：12800kg
- Transport Package：Nude Package
- Specification：12050*2500*3400mm
- Trademark：zoomlion
- Origin：Hunan, China
- HS Code：8426990000
- Production Capacity：1000units,Year
Description
Working performanceMax. rated lifting capacity 16000 kg Max. load moment of basic boom 710 kN.m Max. load moment of main boom (fully extended) 408 kN.m Max. lifting height of basic boom - m Max. lifting height of main boom 31.08 m Max. lifting height of jib 38.5 m Work speeds Max. hoist rope speed (Main winch) 120 m/min Max. hoist rope speed (Auxiliary winch) 108 m/min Boom derricking up time 38 s Boom telescoping out time 55 s Max. slewing speed 3 r/min Driving Max. driving speed 75 km/h Max. gradeability 35 % Min. turning diameter ≤20 m Min. ground clearance 250 mm Oil consumption per hundred kilometer 30 L Mass Deadweight in driving condition 23000 kg Complete vehicle kerb mass 22870 kg Front axle load 6200 kg Rear axle load 12800 kg Dimensions Overall dimensions (L × W × H) 12050×2500×3400 mm Outrigger spread (L) 4.95 m Outrigger spread (W) 5.6 m Tail slewing radius -- mm Main boom length 9.8~30.8 m Boom angle -2 - 80 . Jib length 7.5 m Offset 0, 30 . Engine Model -- Rated power -- kw/r/min Max. output torque -- n.m/r/min
