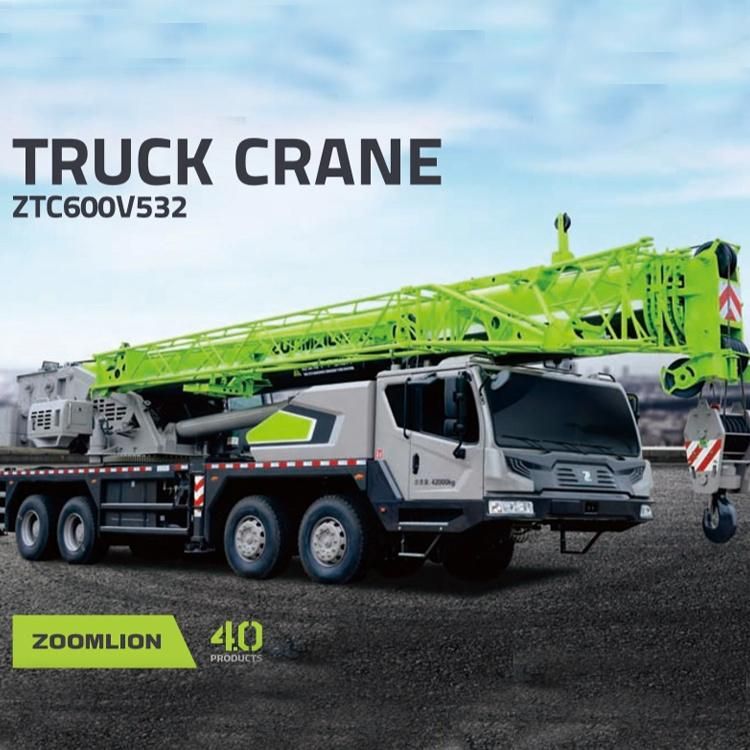

• Model NO.：ZTC600V532
• Type：Folding
• Max. Lifting Height of Main Boom：45.7m
• Max. Hoist Rope Speed (Main Winch)：125m,Min
• Max. Driving Speed：85km,H
• Min. Ground Clearance：285mm
• Min. Turning Diameter：<23m
• Deadweight in Driving Condition：42000kg
• Front Axle Load：16000kg
• Rear Axle Load：26000kg
• Transport Package：Nude Package
• Specification：13950*2800*3750mm
• Trademark：zoomlion
• Origin：Hunan, China
• HS Code：8426990000
• Production Capacity：1000units,Year

Working    performanceMax.    rated lifting capacitykg60000 Max.    load moment of basic boomkN.m2033 Max.    load moment of main boom(fully extended)kN.m1192 Max.    load moment of basic boomm12.8 Max.    lifting height of main boomm45.7These    parameters do not include deflection of main boom and jibMax.    lifting height of jibm61.5Working    speeds              Max.    hoist rope speed(Main winch)m/min125Drum    4th    layerMax.    hoist rope speed(Auxiliary winch)m/min125Drum    2nd    layerBoom    demrricking up times45 Boom    demrricking up times95 Slewing  speedr/min0-2.2 Driving
     parametersMax.    driving  speedkm/h85 Max.    gradeability%47 Min.    Turning diameterm23 Min.  ground clearancemm285 Oil    consumption per hundred kilometersL43 MassDeadweight    in driving conditionkg42000 Complete    vehicle kerb masskg41805 Front    axle loadkg19000 Rear    axle loadkg16000 DimensionsOverall    dimensions(L×W×H)mm13950×2800×3750 Longitudinal    distance between outriggersm5.92 Transversal    distance between outriggersmFully    extended:7.1
    Tail    slewing radiusmm3930 Boom    lengthm11.6   - 45.0 Boom    angle°-2    - 80 Jib    lengthm9.5,16.0 Offset°0,15,30
