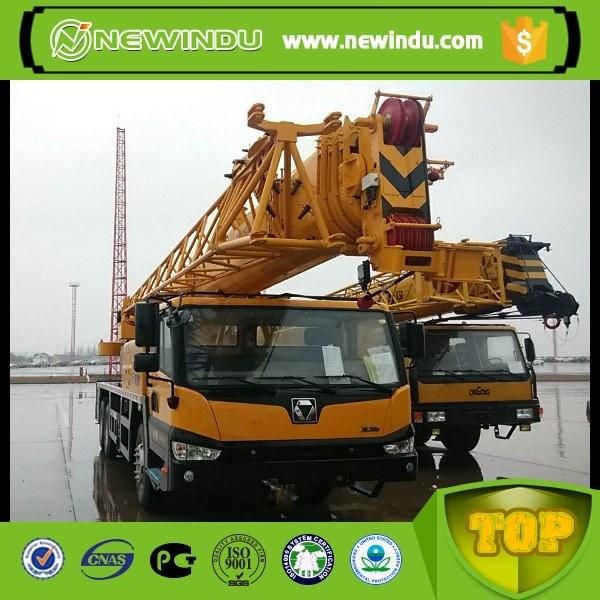

Heavy Duty New Qy70K-I Cheap 70t Truck Crane in Stock
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Online Service
- Warranty：One-Year Warranty
- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：QY70K-I
- Shaft Number：3
- Crane Jib：Three-Arm
- Type：Straight Arm
- Max. Lifting Height：11.8m
- Rated Lifting Moment：2676kn.M
- Span：7.3m
- Transport Package：Nude Packing by Roro Shipment
- Specification：70ton
- Trademark：Newindu
- Origin：China
- HS Code：8705109100
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. QY70K-I Shaft Number 3 Crane Jib Three-Arm Type Straight Arm Max. Lifting Height 11.8m Rated Lifting Moment 2676kn.M Span 7.3m Transport Package Nude Packing by Roro Shipment Specification 70ton Trademark Newindu Origin China HS Code 8705109100 Production Capacity 100sets/MonthProduct Description
Heavy duty New Qy70K-I Cheap 70t Truck Crane in StockProduct Description
Powerful Lifting Capacity
Truck crane has four-section boom of high strength steel structure and optimized U-shaped cross section with max.lifting capacity of 70t, full-extended boom length of 33.5m, max.lifting height including jib of 42m, reduce weight and improve safety significantly.
Jib mounting angles are 0°, 15°, and 30°, which ensure fast and convenient change-over between different operating conditions so as to improve working efficiency of the machine.
Efficient & Unique Hydraulic System
Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micro-mobility. Unique steering buffer design guarantees smooth braking operation.
Intelligent Electronic Control
Self-developed controller SYMC special for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness, and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in real time.
The Load Moment Limiter
Equipped with the comprehensive intelligent protection system is used with accuracy within 3%. The adoption of comprehensive logic and interlock control system ensures more safe and reliable operation.
More Safe Devices
Main and auxiliary winches are equipped with over roll-out limiter to prevent over rolling-out of wire rope.
Boom and jib ends are equipped with height limiters respectively to prevent over-hoisting of wire rope.
Hydraulic system is configured with the balance valve, overflow valve and two-way hydraulic lock etc., to ensure stable and reliable operation.
| Dimensions | Unit | |
|---|---|---|
| Overall length | Mm | 14155 |
| Overall width | Mm | 2800 |
| Overall height | Mm | 3675 |
| Weight | ||
| Dead weight in travel state | Kg | 44490 |
| 1st.2nd axle load | Kg | 9245 |
| 3rd.4th axle load | Kg | 26000 |
| Power | ||
| Carrier engine | WD615.338 | |
| Engine rated output | Kw(r/min) | 276/2200 |
| Travel | ||
| Max.travel speed | Km/h | 80 |
| Min. turning diameter | M | 24 |
| Min. ground clearance | Mm | 324 |
| Approach angle | . | 21 |
| Departure angle | . | 14 |
| Max. gradeability | % | 40 |
| Fuel consumption of per 100km | L | 45 |
| Lifting performance | ||
| Max. total rated lifting capacity | T | 70 |
| Min. rated working radius | M | 3 |
| Turning radius at swing table tail | Mm | 3857 |
| Base boom max. load moment | Kn.m | 2676 |
| Base boom | M | 11.8 |
| Full-extend boom | M | 45 |
| Full-extend boom+Jib | m | 61 |
| Outrigger longitudinal distance span | M | 6.1 |
| Outrigger lateral distance span | M | 7.3 |
| Working speed | ||
| Boom elevating time | S | 60 |
| Boom telescoping time | S | 150 |
| Max. slewing speed | r/min | 2 |
| Main winch max. speed(single line) | m/min | 130 |
| Auxiliary winch max.speed(single line) | m/min | 108 |
