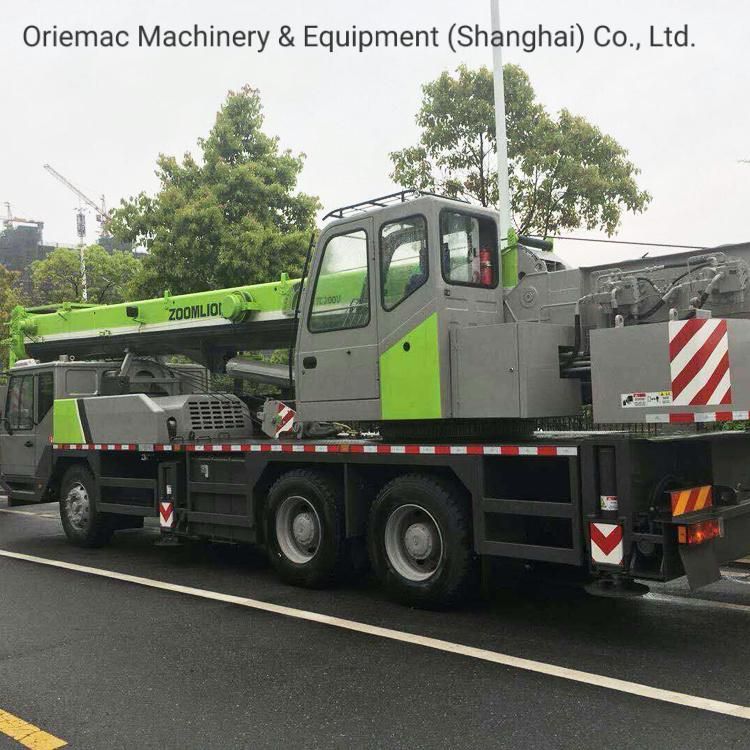

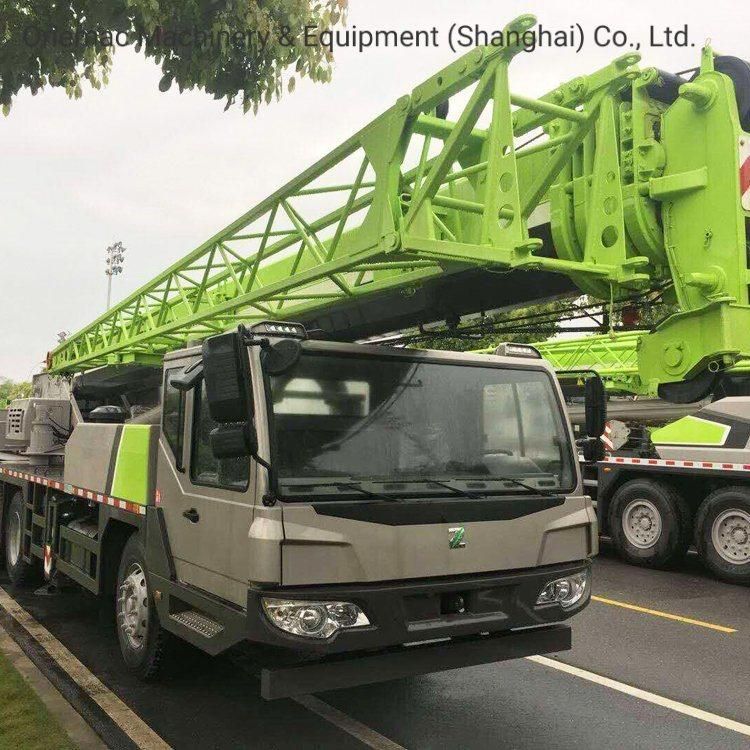

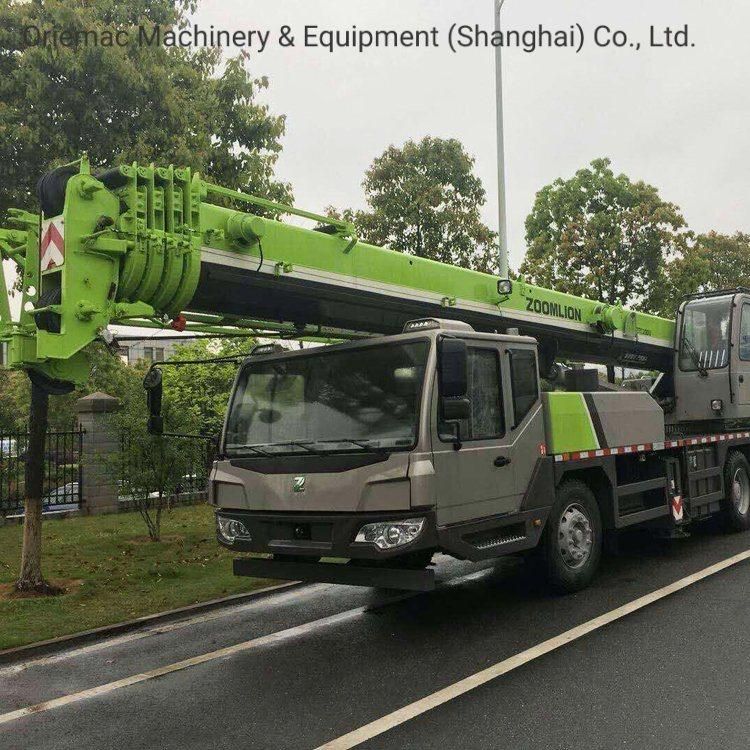

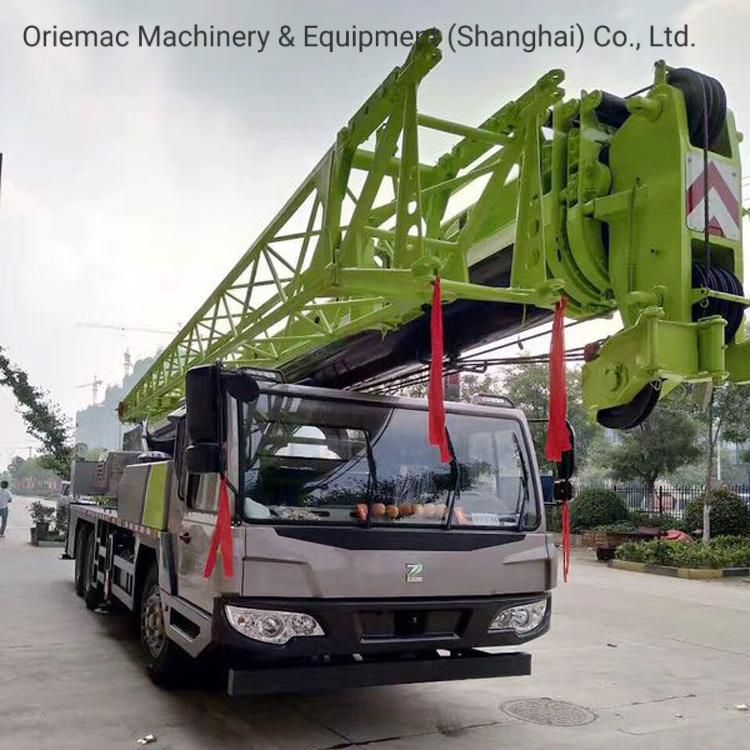

Zoomlion 25ton 4boom Mobile Crane Ztv200V451 Zoomlion Mobile Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Four-Arm
Base Info
- Model NO.：ZTV200V451
- Type：Straight Arm
- Color：Green Gray
- Capacity：20t
- Front Axle Load：6280kg
- Rear Axle Load：19700kg
- Outrigger Spread：5.36m
- Transport Package：Nude
- Specification：12320*2500*3400mm
- Trademark：zoomlion
- Origin：Hunan
- Production Capacity：100unit,Month
Description
Item
Value
Remarks
Working performance specification
Max. rated total lifting capacity kg
20000
Max. load moment of basic boomkN.m
850
Max. load moment with max. main boom lengthkN.m
458.6
Max. lifting height of main boom m
32.60
Deformation of boom is not taken into consideration.
Max. lifting height of fly jibm
40.4
Working speed
Max. speed of single rope on main winchm/min
120
The 4th layer of drum
Derricking time of booms
60
Telescopic time of booms
70
Slewing speedr/min
0~1.8
Traveling specification
Max. traveling speedkm/h
70
Max. gradeability%
27
Min. turning circle diameterm
20
Min. ground clearance
250
Limits for exhaust pollutants and smoke
Comply with related standards
GB3847-2005
GB17691-2005
(Stage III)
Oil consumption per hundred kilometersL
40
Mass specification
Deadweight of crane in traveling conditionkg
26080
Complete vehicle kerb masskg
25885
Front axle loadkg
6380
Rear axle loadkg
19700
