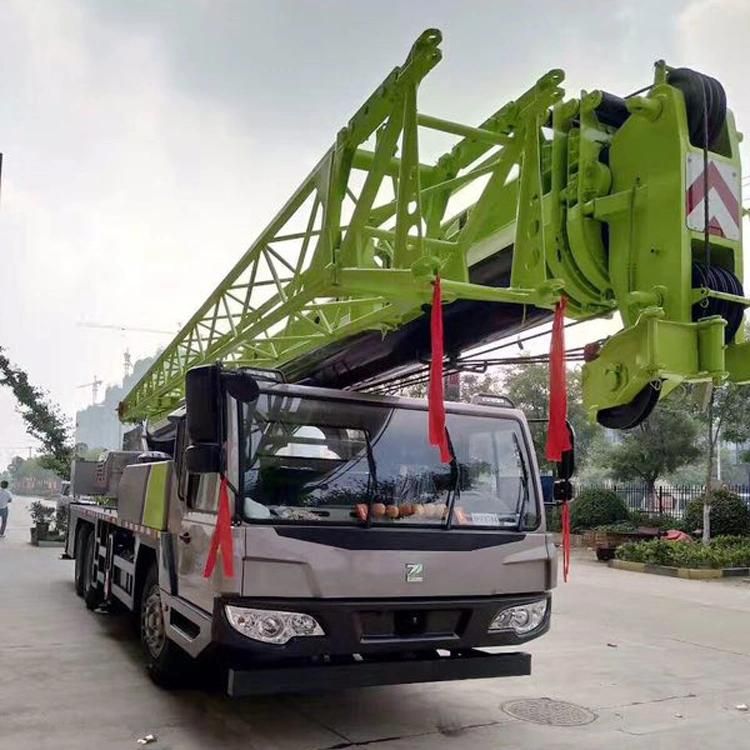

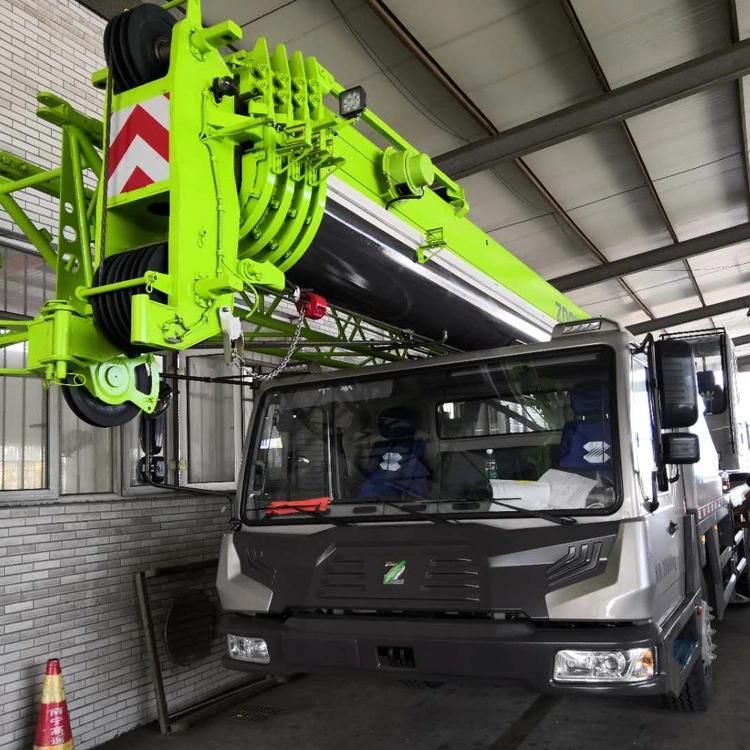

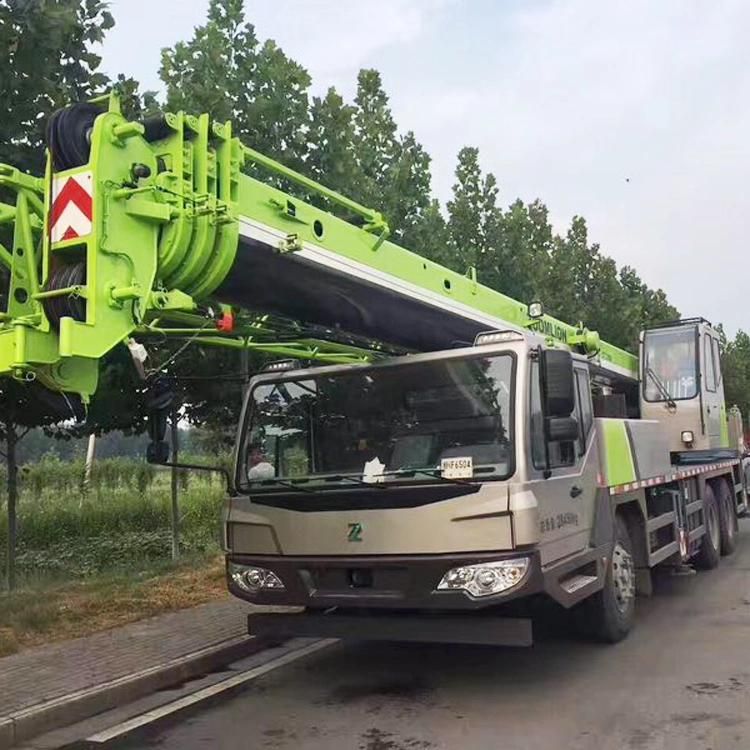

• Model NO.：QY25V432
• Type：Straight Arm
• Max. Rated Total Lifting Capacity Kg：25000kg
• Max. Load Moment of Basic Boom Kn.M：1764 Kn.M
• Max. Lifting Height of Basic Boom M：11.6m
• Max. Lifting Height of Fly Jib M：58.3m
• Base on Outriggers M：5.92m
• Transport Package：Nude
• Specification：13300× 2750× 3650mm
• Trademark：zoomlion
• Origin：Hunan
• Production Capacity：100unit,Month

Item

Value

Remarks

Working performance specification

Max. rated total lifting capacity kg

25000

Max. load moment of basic boom kN.m

1764

1470(Outrigger beam half extended)

Max. load moment with max. main boom length kN.m

940.8

793.8(Outrigger beam half extended)

Max. lifting height of basic boom m

11.6

Max. lifting height of main boom m

42.1

Deformation of boom is not taken into consideration

Max. lifting height of fly jib m

58.3

Working speed

Max. speed of single rope on main winch m/min

130

The 4th layer of drum

Max. speed of single rope onauxiliary winch m/min

72

The 2nd layer of drum

Derricking time of boom s

50

Telescopic time of boom s

95

Slewing speed r/min

0~2

Traveling specification

Max. traveling speed km/h

76

Max. gradeability %

32

Min. turning circle diameter m

24

Min. ground clearance mm

260

Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005

GB17691-2005

(Stage3)

Oil consumption per hundred kilometers L

48

Mass specification

Deadweight of crane in traveling condition kg

41000

Complete vehicle kerb mass kg

40470

Front axle load kg

17200

Rear axle load kg

23800

Dimension specification

Overall dimensions(L×W×H)mm

mm

13300×2750×3650

Base on outriggers m

5.92

Distance between outriggers m

6.90

Main boom length m

11.1~42.0

Main boom angle°

-2~80

Fly jib length m

9.5, 16

Offset angle of fly jib °

0 , 30

Chassis

Model

ZLJ5414

Class

2

Engine

Model

WP10.336

QSL 325

Rated power KW/r/min

247/2200

242/2200

Max. output torque N.m/r/min

1250/1200~1600

1424/1500
