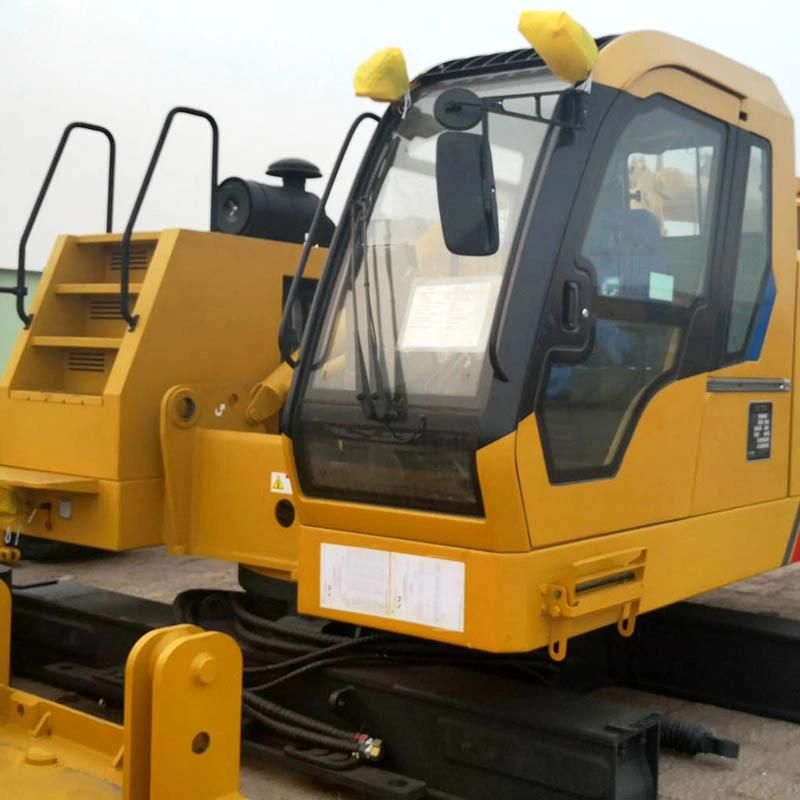

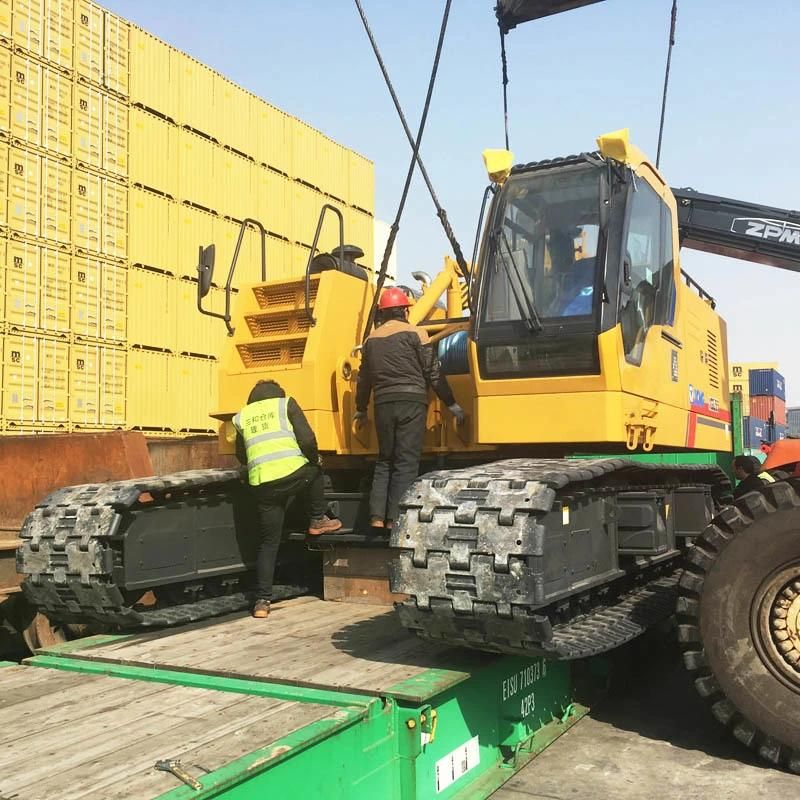

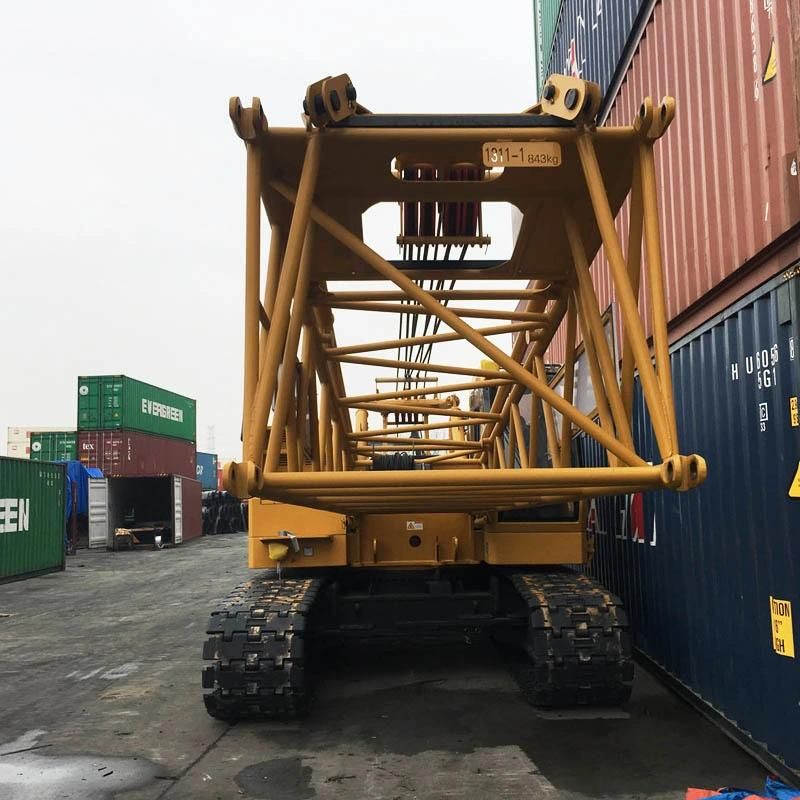

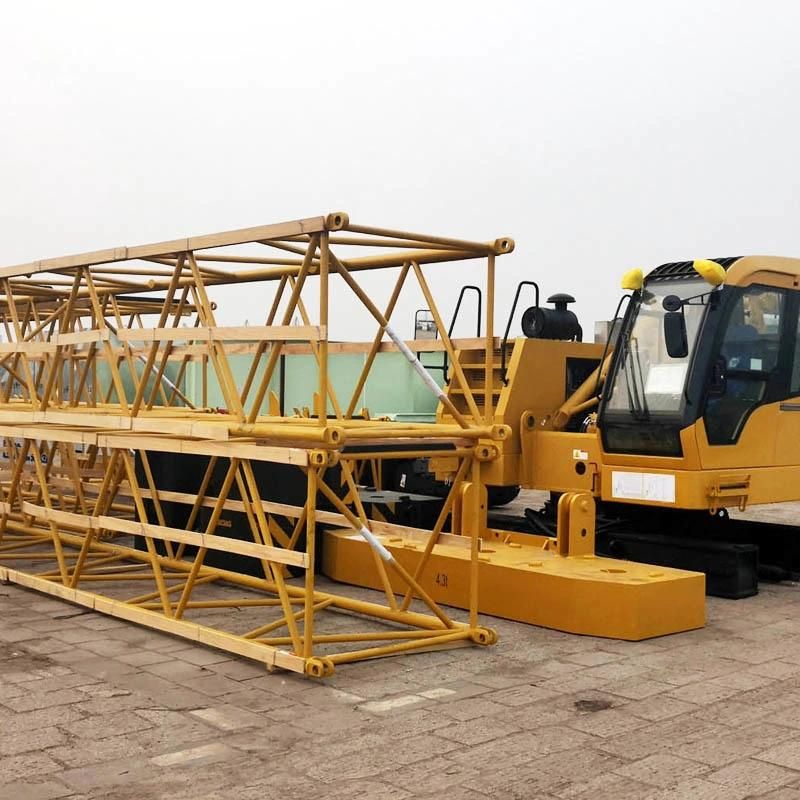

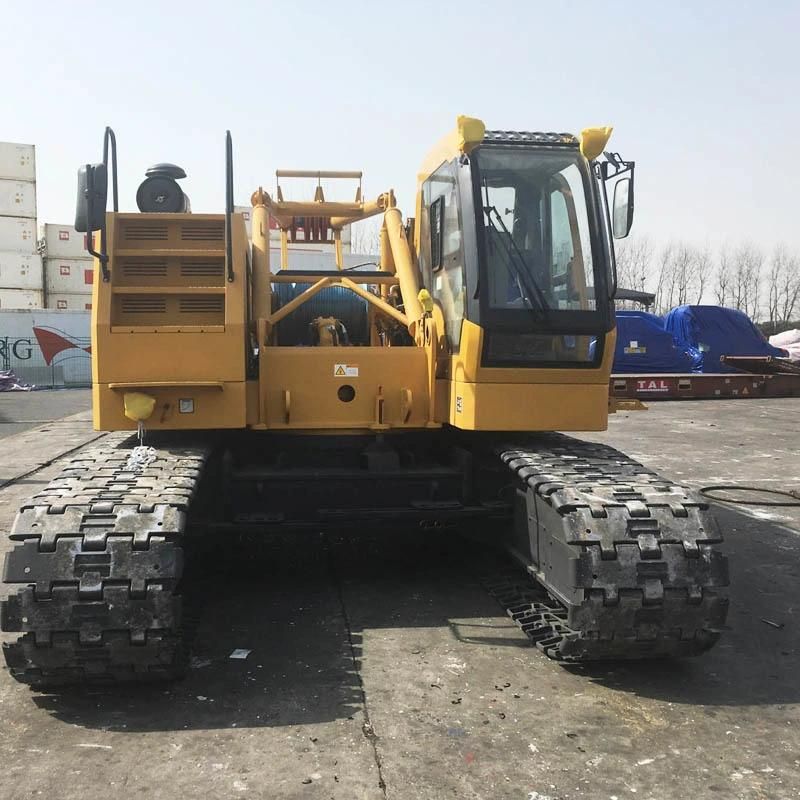

Oriemac 75t Crawler Crane Xgc75 Overhead Crane Price
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Provided
- Max. Lifting Height：90m
- Rated Loading Capacity：75t
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year
Base Info
- Model NO.：XGC75
- Parameter Item：Xgc75
- Max. Rated Lifting Capacity for Boom：75t
- Max. Load Moment：286t.M
- Boom Length：13~58m
- Fixed Jib Length：7~19m
- Engine Power：155,153kw
- Emission：National III,EU III
- Transport Package：Nude
- Specification：12.7× 3.4× 3.4m
- Trademark：Oriemac
- Origin：Xuzhou
- Production Capacity：100unit,Month
Description
Item
Unit
Parameter value
Parameter Item
-
XGC75
Operation performance parameter
*
Max. rated lifting capacity for boom
(t)
75
Max. rated lifting capacity for fixed jib
(t)
12
Max. rated lifting capacity for luffing jib
(t)
-
Max. load moment
(t.m)
286
Max. rated lifting capacity for tower jib
(t)
-
Max. rated lifting capacity for boom single top
(t)
6.5
Max. rated lifting capacity for special jib
(t)
-
Dimension parameter
*
Boom length
(m)
13~58
Boom luffing angle
(°)
-3~80
Fixed jib length
(m)
7~19
Tower jib length
(m)
-
Max. dimension of single unit in transport state(L×W×H)
(m)
12.7×3.4×3.4
Fixed jib offset angle
(°)
10,30
Special jib length
(m)
-
Speed parameter
*
Max. single line speed for hoist mechanism
(m/min)
128
Max. single line speed for boom luffing mechanism
(m/min)
70
Max. single line speed for jib luffing mechanism
(m/min)
-
Max. slewing speed
(r/min)
3
Max. travel speed
(km/h)
1.4
Grade ability
(%)
30
Mean ground pressure
(MPa)
0.08
Max. single line speed for tower jib luffing mechanism
(m/min)
-
Max. single line speed for superlift luffing
(m/min)
-
Engine
*
Model
-
SC7H210/QSB6.7
Engine power
(kW)
155/153
Emission
-
National III/EU III
