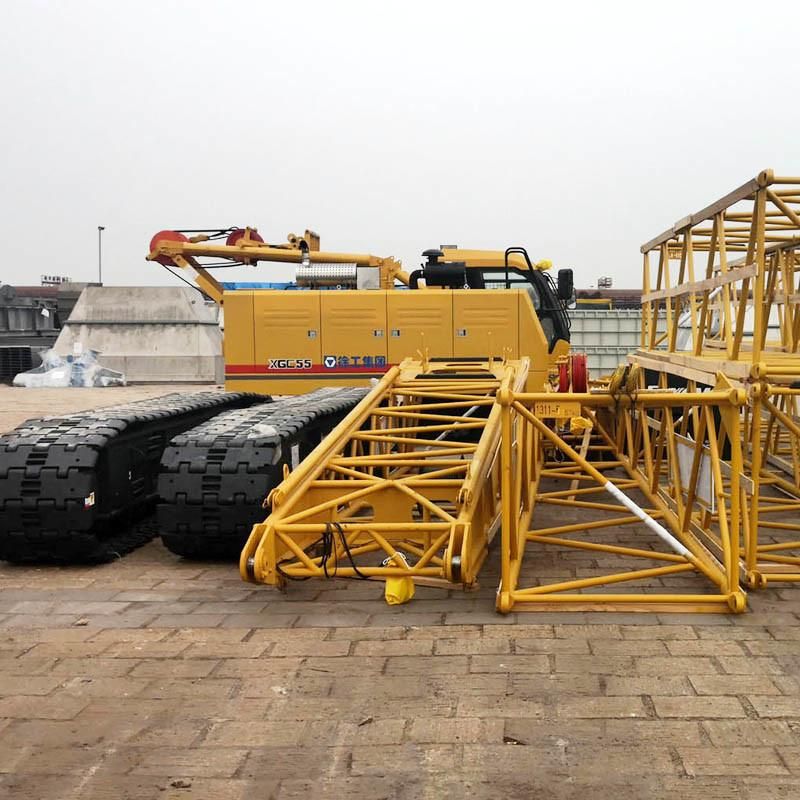

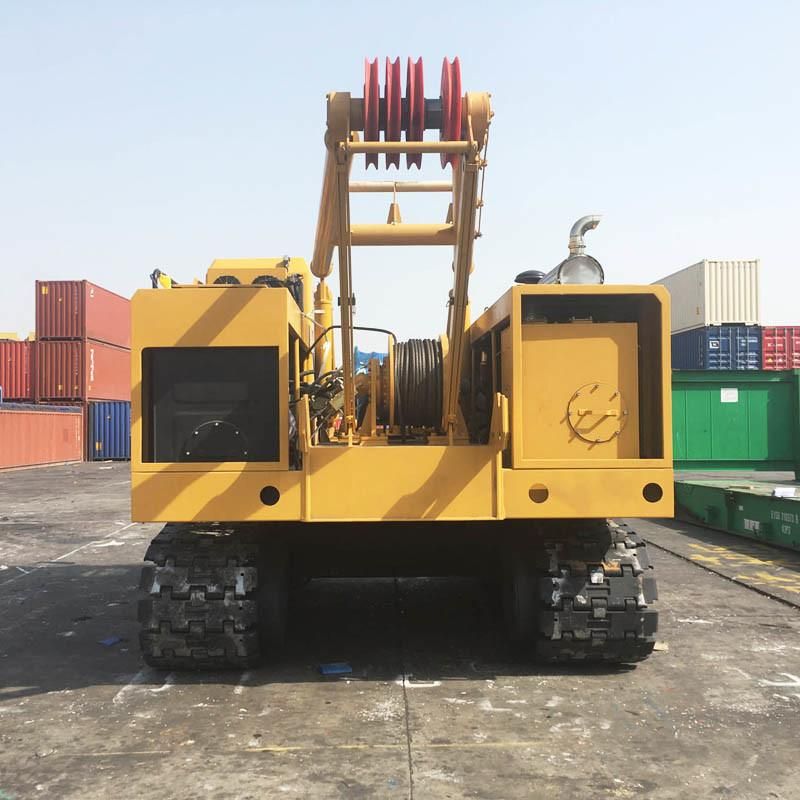

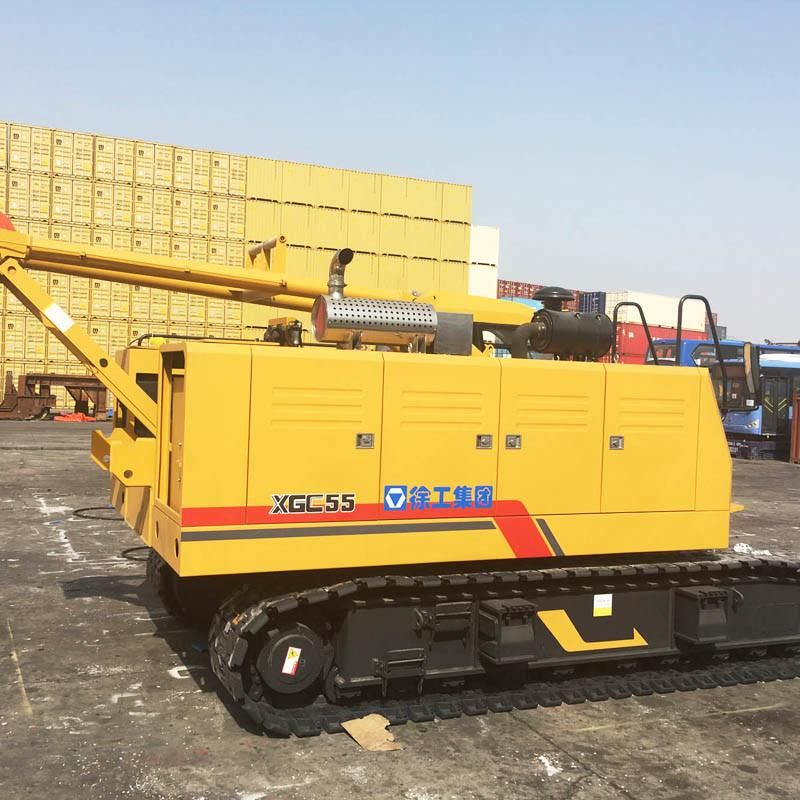

China 55 Tons Lifting Machinery Xgc55 Oriemac Hydraulic Crawler Crane
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Provided
- Max. Lifting Height：52m
- Rated Loading Capacity：55t
- Certification：ISO9001, CE, RoHS, BV
- Condition：New
- Warranty：1 Year
Base Info
- Model NO.：XGC55
- Rated Lifting Moment：203.5t.M
- Rated Power of Engine：155kw
- Max. Rated Lifting Load of Main Boom：55t
- Main Boom Length：13~52m
- Fixed Jib Length：7~16m

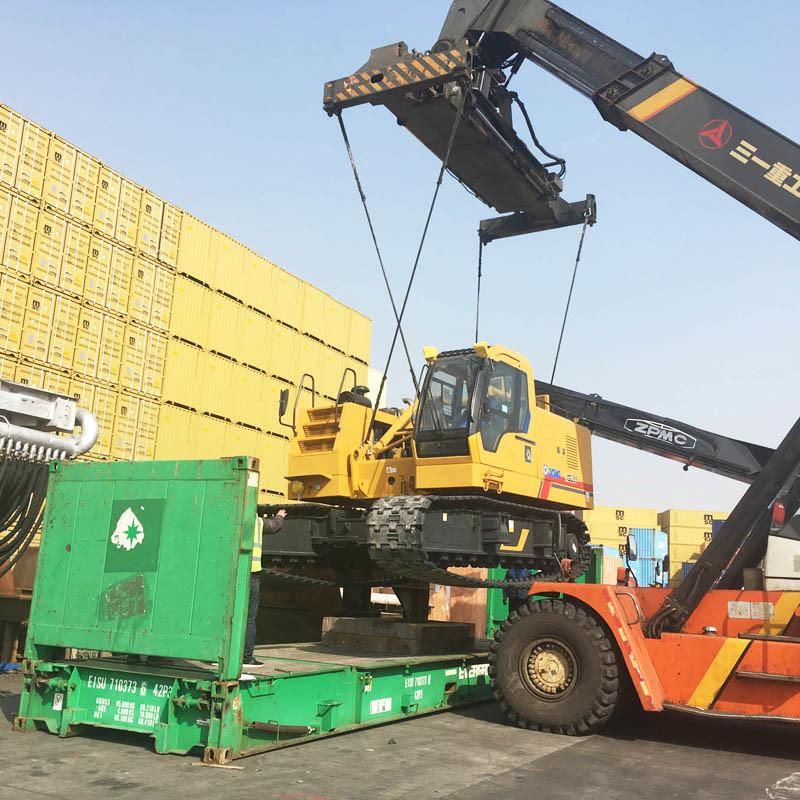

- Transport Package：Nude
- Specification：12.04× 3.45× 3.36m
- Trademark：Oriemac
- Origin：Xuzhou
- Production Capacity：100unit,Month
Description
Items
Unit
Parameter value
Performance parameters
*
Max. rated lifting load of main boom
(t)
55
Max. rated lifting load of fixed jib
(t)
11.4
Max. rated lifting load of luffing jib
(t)
-
Max. lifting load moment
(t.m)
203.5
Max. lifting load of tower jib
(t)
-
Max. rated lifting load of boom single pulley
(t)
6
Max. rated lifting load of special jib
(t)
-
Size
*
Main boom length
(m)
13~52
Main boom luffing angle
(°)
-3~80
Fixed jib length
(m)
7~16
Tower jib length
(m)
-
Max. size of single unit for transport (L×W×H)
(m)
12.04×3.45×3.36
Installation angle of fixed jib
(°)
10,30
Special jib length
(m)
-
Speed
*
Max. single line speed of hoist system
(m/min)
125
Max. single line speed of main luffing system
(m/min)
87/78
Max. single line speed of jib luffing system
(m/min)
-
Max. slewing speed
(r/min)
2.45/2.2
Max. travel speed
(km/h)
1.37/1.22
Gradeability
(%)
30
Average ground pressure
(MPa)
0.06
Max. single line speed of tower jib luffing system
(m/min)
-
Max. single line speed of SL luffing system
(m/min)
-
Engine
*
Model
-
SC7H210.1G3/QSB6.7
Engine power
(kW)
155/153
Emission
-
National III stage/Europe III
