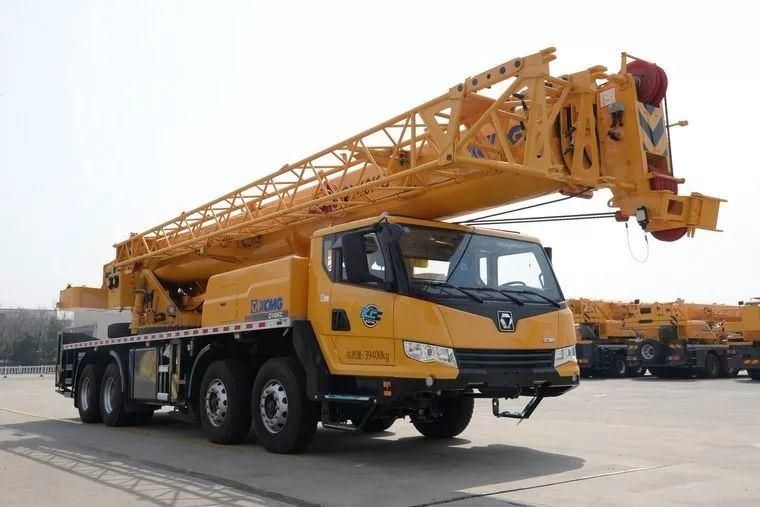

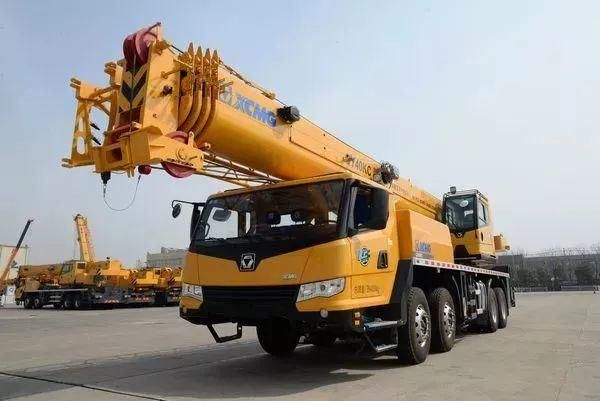

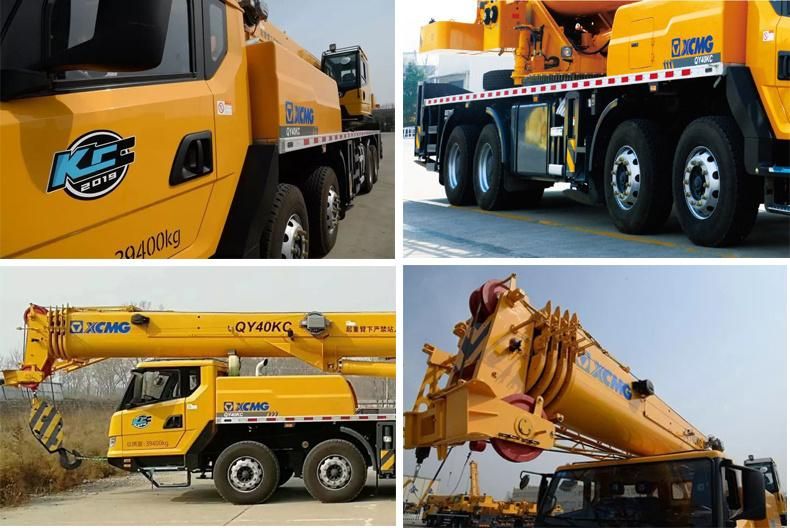

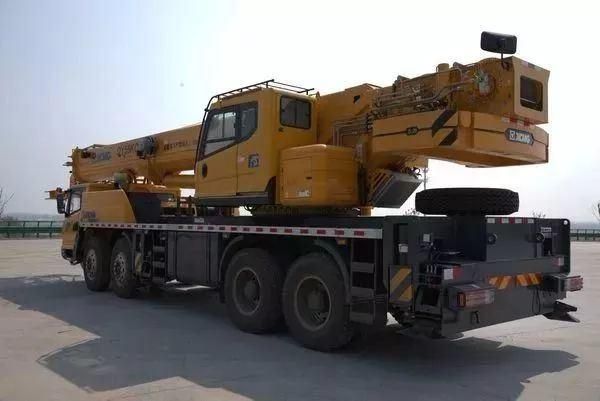

• Model NO.：QY40KC
• Type：Straight Arm
• Max. Grade Ability：45%
• Max. Lifting Height of Boom：11.3m
• Max. Lifting Height of Boom + Jib：60.3m
• Transport Package：Comply with Export Packaging Requirements
• Specification：13745*2800*3560mm
• Trademark：XCMG
• Origin：China
• HS Code：87051091
• Production Capacity：10000 Units,Year

DescriptionUnitParameter valueOverall lengthmm13745Overall widthmm2800Overall Heightmm3560Wheel Basemm1470+4050+1350Trackmm2322/2059Total vehicle mass in travel configurationkg39400Axle load1st axlekg68902nd axle68903rd axle128104th axle12810Engine Model SC9DF340Q5Engine rated powerkw/(r/min)251/1900Max. output torqueN.m/(r/min)1450/1100-1400Max. travel speedkm/h≥90Min. turning diameterm≤24Min. ground clearancemm293Max. grade ability%≥45Approach angle°19Departure angle°15Braking distance (at 30 km/h, full load )m≤10
