• Model NO.：MG
• Main Girder Form：Double Girder
• Working Duty：A5, A6, A7, A8
• Weight Overload Protection Device：Include
• Voltage Lower Protection Function：Include
• GB/T 24001-2004 Idt ISO14001: 2004：Pass
• Sandblast：Could Supply
• GB/T 19001-2000 Idt ISO 9001: 2000：Pass
• Limited Switch：Include
• Painting Color：According to Your Demand
• Current Overload Protection System：Include
• GB/T 28001-2001, OHSAS18001: 1999：Pass
• Tower Crane Type：Gantry Crane
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Transport Package：Packed by Plywood Crate and Plastic Woven Cloth.
• Specification：China National standard
• Trademark：KUANGYUAN
• Origin：Xinxiang, Henan Province
• HS Code：84261930
• Production Capacity：18, 000 Sets,Year

Basic Info.

Model NO. MG Main Girder Form Double Girder Working Duty A5, A6, A7, A8 Weight Overload Protection Device Include Voltage Lower Protection Function Include GB/T 24001-2004 Idt ISO14001: 2004 Pass Sandblast Could Supply GB/T 19001-2000 Idt ISO 9001: 2000 Pass Limited Switch Include Painting Color According to Your Demand Current Overload Protection System Include GB/T 28001-2001, OHSAS18001: 1999 Pass Tower Crane Type Gantry Crane Sling Type Wire Rope Power Source Electric Moving Type Wheel Transport Package Packed by Plywood Crate and Plastic Woven Cloth. Specification China National standard Trademark KUANGYUAN Origin Xinxiang, Henan Province HS Code 84261930 Production Capacity 18, 000 Sets/Year

Product Description

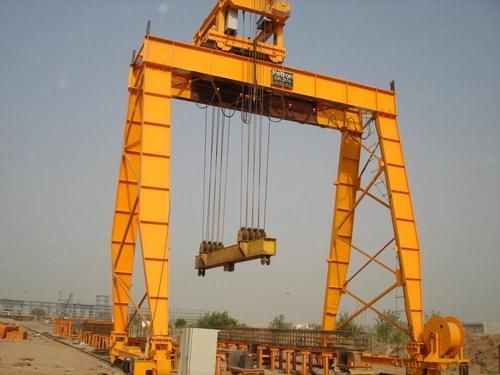

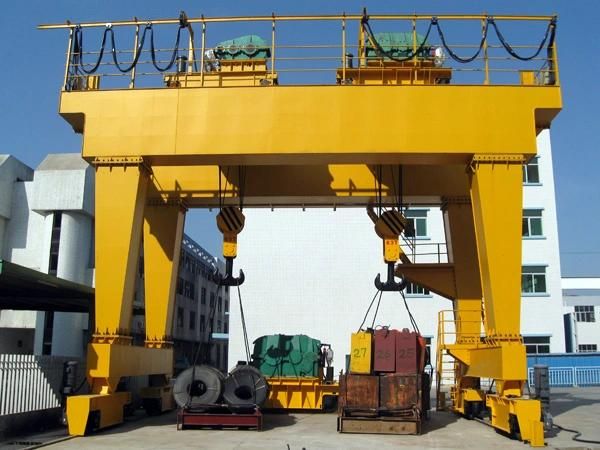

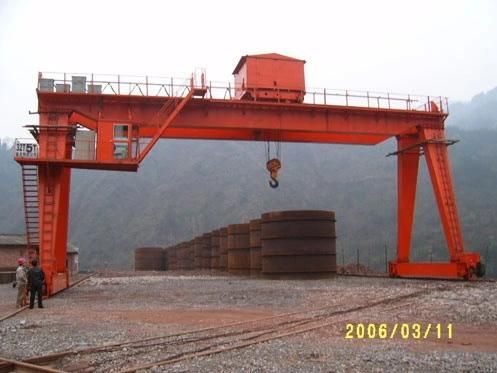

Heavy duty container Gantry Crane


Heavy duty double beam gantry crane is applied to open air warehouse or railways for loading and unloading as well as lifting work. Accompanied with particular lifting tools, it could be used for container. It has features of beautiful appearance, perfect performance, low cost, easy maintenance, durability and so on.
It is widely used in open warehouses, material stocks area, cement plant, granite industry, construction industry, engineering industry, railway station to lifting and loading unloading goods. It also can be used together with other lifting appliance for special purpose. The lifting capacity is 5-100tons; Span is of 18-30meters.
This machine uses AC frequency converter, PLC control and equipped with intelligent all Chinese "state monitoring control system". It is composed of beams; Crane traveling mechanism adopts separate drive. All mechanism is operated in the operation cabin; Crane power supplies are divided into cable and sliding wire, please choose one of them when you make an order with us.

Working condition:
1. Working temperature: -25-40
2. Working duty: A5- A6.
A)A5: Used in places of medium service, such as machine and assembly shops.
B)A6: Used in places of frequent working such as metallurgy and casting shops.
3. Power source: 380V 50Hz 3Phase. And we can design as your demands.
4. The altitude height of site is ought to be less than 2000M.
5. Flammable, explosive and corrosive gas is forbidden in the work environment.
6. The crane is forbidden to lift fuse and blend deleterious article and flammable explosive article.

Feature:
1)Reasonable structure
2)Favorable performance.
3)Smooth starting and stopping
4)Safe and reliable traveling.
5)Low noise, commodious cabin and good view.
6)Convenient maintenance, excellent exchangeability for parts and computers.
7)Saves electricity specifications.
