XCMG Official Xca60_E All Terrain Crane Price for Sale
XCMG E-Commerce Inc.- Certification：CE,ISO9001
- Condition：New
- Maximum Lifting Height：64m
- Maximum Lifting Weight：60t
- Rated Lifting Moment：1858kn.M

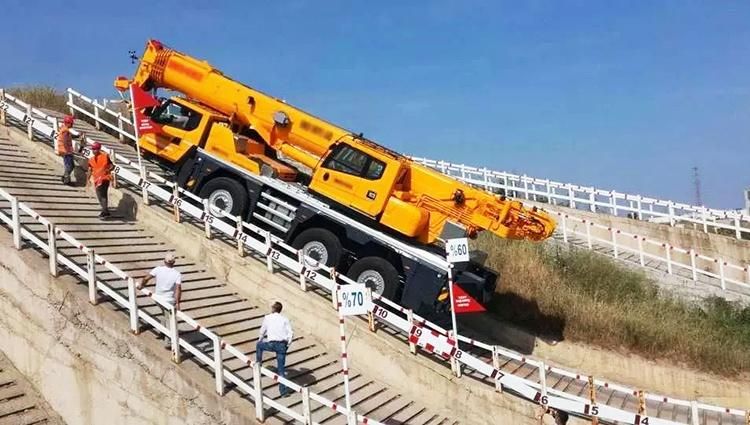

- Max. Grade Ability：65%
Base Info
- Model NO.：XCA60_E
- Min. Turning Diameter：14.2m
- Transport Package：Comply with Export Packaging Requirements
- Trademark：xcmg
- Origin：Jiangsu, China
- Production Capacity：10000 Unit,Units Per Year
Description
CategoryItem Unit Parameter Outline Dimensions Overall length mm 11880 Overall width mm 2550 Overall height mm 3755 Wheel base 1st and 2nd Axles mm 2950 2nd and 3rd Axles mm 1650 Track mm 2150 Weight Dead weight in travel configuration kg 36000 Axle load 1st axle kg 12000 2nd axle kg 12000 3rd axle kg 12000 Power Engine model / OM470 MC11.36-50 Rated power of engine kW/(r/min) 280/1900 268/1900 Travel Travel speed Max. travel speed km/h 85 Min. stable travel speed km/h 3 Min. turning diameter m 14.2/(three axles steering) Min. ground clearance mm 330 Approach angle ° 19 Departure angle ° 21 Braking distance (at 30 km/h ) m ≤10 Max. grade ability % 65 Oil consumption per 100 km L 55

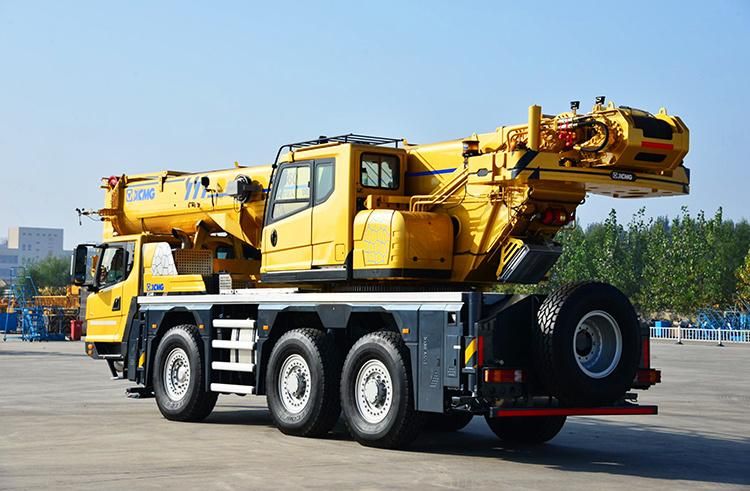

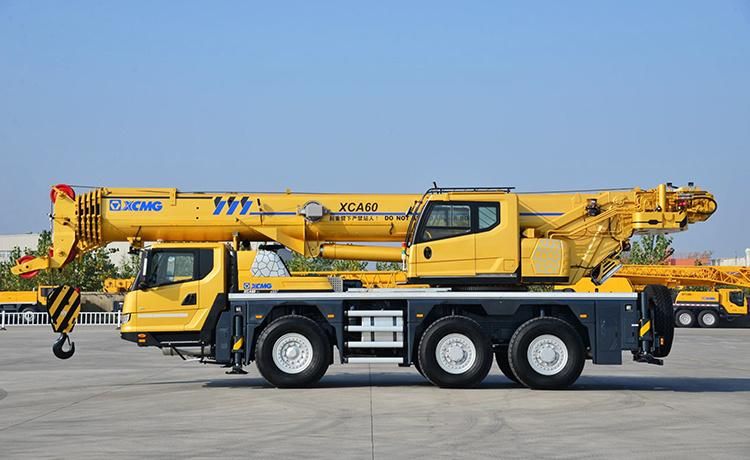

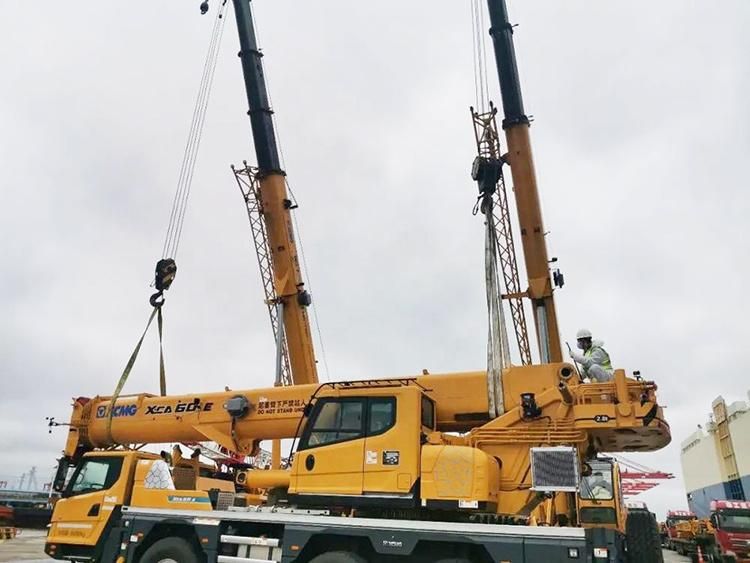

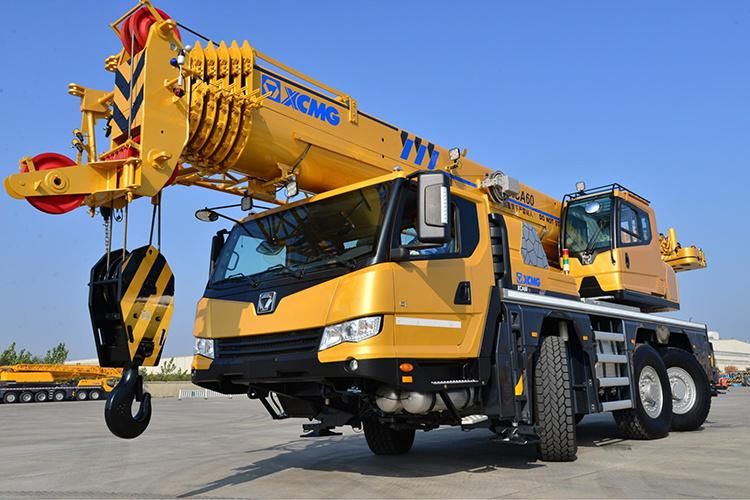

product show
