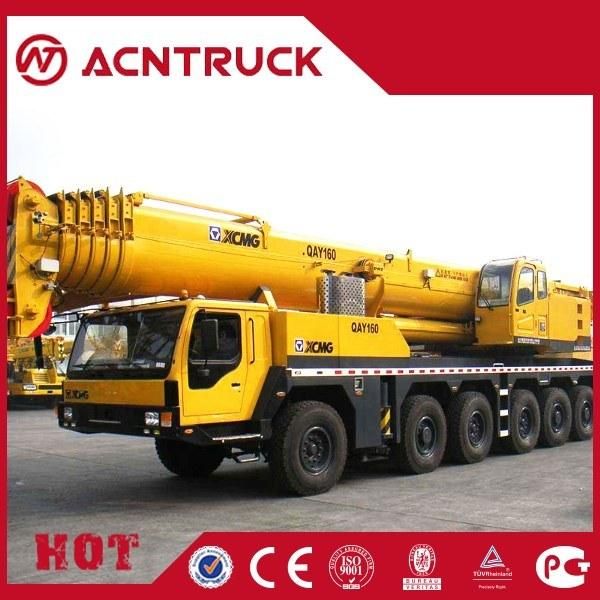

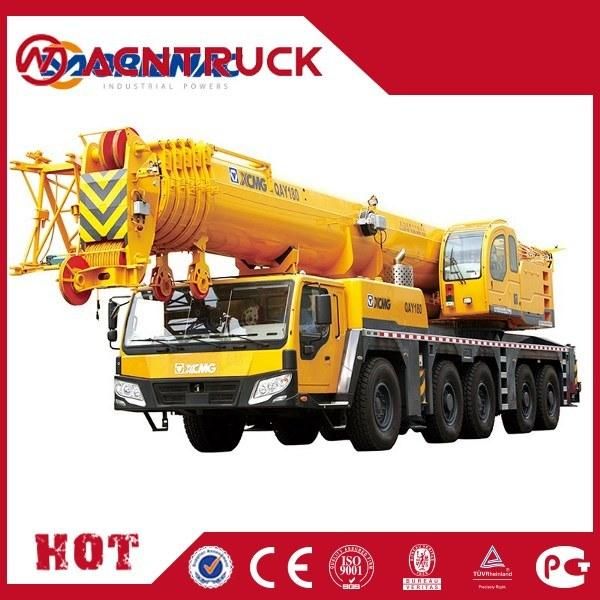

• Model NO.：QAY160
• Type：Straight Arm
• Max.Toal Rated Lifting Load：160t
• Min. Turning Diameter：21.5m
• Max. Travel Speed：75km,H
• Engine Power：310kw
• Total Mass in Travel State：70900kg
• Max.Rated Lifting Capacity：160 Tons
• Fully-Extended Boom：56.3 M
• Fully-Extended Boom + 11.55mjib：60+11.55 M
• Hoisting Speed：120 M,Min
• Transport Package：Nude
• Specification：12650*2500*3380mm
• Trademark：China
• Origin：Jiangsu, China
• HS Code：8501101000
• Production Capacity：100units,Week

Category

Item

Unit

Parameter

Main    Lifting  Performance

Max. total rated lifting capacity

t

160

Min. rated working radius

m

3

Turning radius at turntable tail (counterweight)

mm

4850

Max. load moment

Base boom

KN.m

5282

Fully-extended boom

KN.m

2140

Outrigger span

Longitudinal

m

9.625

Lateral

m

8.7/6.5

Hoist height

Base boom

m

14.3

Fully-extended boom

m

56.3

Fully-extended boom + 20m Jib

m

79

Boom length

Base boom

m

13.6

Fully-extended boom

m

60

Fully-extended boom + 11.55mJib

m

60+11.55

Fully-extended boom + 20m Jib

m

60+20

Fully-extended boom + 28m Jib

m

60+28 (a optional 8m extension)

Jib offset angle

°

0, 15, 30

Working

Speed

Parameter

Elevating time

Boom raising

s

90

Telescoping time

Extend fully

s

550

Retract fully

s

550

Max. slewing speed

r/min

2

Outrigger extending and retracting time

Outrigger

beam

Extending

Simultaneously

s

50

Retracting

Simultaneously

s

40

Outrigger

jack

Extending

Simultaneously

s

50

Retracting

Simultaneously

s

45

Hoisting speed

(single line, 4th layer)

Main winch

No load

m/min

120

Auxiliary  winch

No load

m/min

110

Noise

Exterior noise level

dB (A)

≤120

Noise level at seated position

dB (A)

≤90
