• Model NO.：RT100
• Type：Straight Arm
• Max.Toal Rated Lifting Load：100t
• Fully Extended Boom：37.9m
• Extended Boom：53m
• Engine：Cum=Mins Qsb6.7-C190 (149kw)
• Min.Ground Clearance：568 mm
• Max.Travel Speed：33 Km,H
• Engine Rated Torque：1369,1500 N.M,(R,Min) Max.Travel Speed 33 Km,H Min
• Outrigger Lateral Distance Span：8.2,6.0 M
• Dead Weight in Travel State：76830 Kg
• Transport Package：Nude
• Specification：12032*2980*3530mm
• Trademark：China
• Origin：Jiangsu, China
• HS Code：8501101000
• Production Capacity：100units,Week

Item UnitDimensionsOverall length14900mmOverall width3500mmOverall height3990mmWeighetDead weight in travel state76830kg1st axle41710kg2nd axle35120kgPowerengine modelQSL8.9 engine rated output224/2100KW/(r/min)engine rated torque1369/1500N.m/(r/min)TravelMax.travel speed≥33km/hMin.turning diameter≤7.5mMin.ground clearance568mmApproch angle21.1°Departure angle17.3°Max.gradeability≥60%Lifting PerformanceMax.total rated lifting load100tMin.rated working radius3mTurning radius at swing table tail4930mmBase boom amx.load moment3500kn.mBase boom12.4mFull-extended boom48mFull-extended boom+Jib68.6mOutrigger longitudinal distance span8.4mOutrigger lateral distance span8.2/6.0mWorking speedBoom elevating time≤95sBoom telescoping time≤150sMax.swing speed≥2.0r/minMain winch max. speed(on load)≥125m/minAuxiliary winch max. speed(on load)≥125m/min

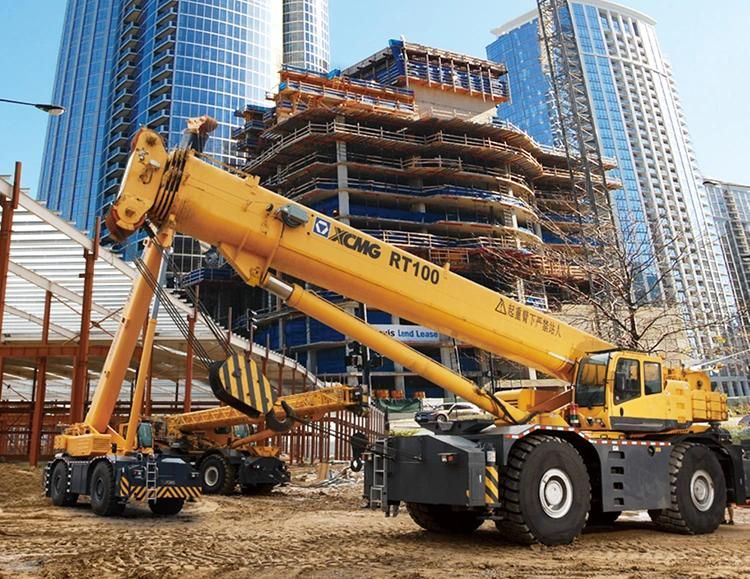

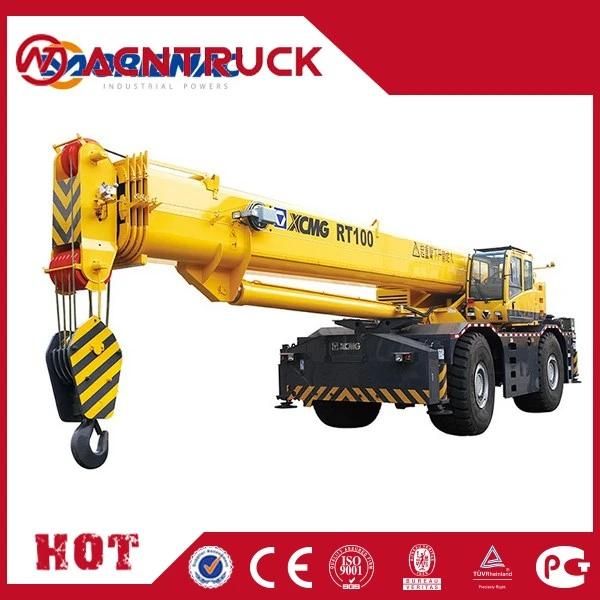

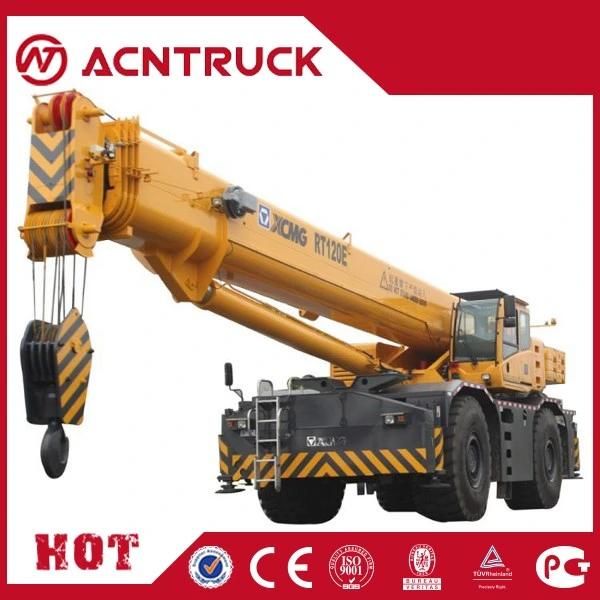

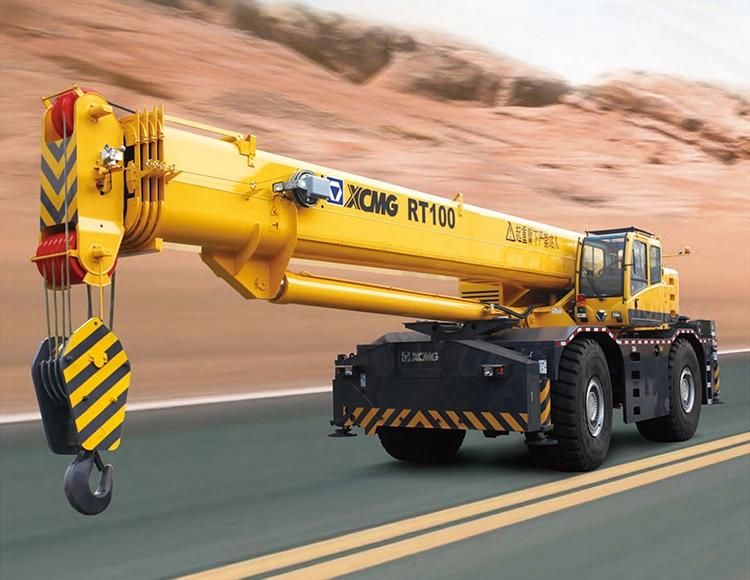

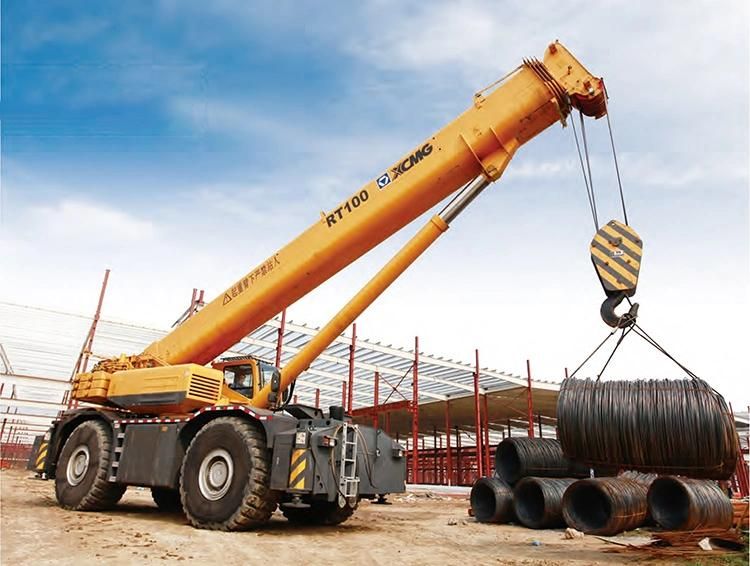

[Product Picture]
