• Model NO.：RT50
• Type：Straight Arm
• Max.Toal Rated Lifting Load：50t
• Min.Working Radius：3m
• Engine Power：169kw
• Max.Travel Speed：40 Km,H
• Base Boom Length：10.25-32TM
• Jib Length：15 M
• Max.Lifting Height：47.6 M
• Max.Working Radius：30 M
• Transport Package：Nude
• Specification：11952*2980*3450mm
• Trademark：China
• Origin：Jiangsu, China
• HS Code：8501101000
• Production Capacity：100units,Week

CategoryItemParameterAllowance







Main performanceMax. rated lifting capacityt50±5%Min. rated working radiusm3±1%Slewing radius at turntable tail (at counterweight)mm4090±1%Max. load momentBase boomkN·m1690±5%Fully-extended boomkN·m1029±5%Outrigger spanLongitudinalm7.0±1%Lateral(fully/half extended)m7.0/5.6±1%
Lifting heightBase boomm9.9±1%Fully-extended boomm37.9±1%Fully-extended boom + Jib
m
53
±1%
Boom lengthBase boomm10.3±1%Fully-extended boomm38.2±1%  Fully-extended boom + Jibm55.2±1%Jib offset angle°0°,20°,4
0°±1°







Working speedTime for boom raisings70≤Time for boom extending fullys140≤Max. slewing speedr/min2.0≥



Outrigger extending/ retracting time
Outrigger beamSimultaneousl y extending
s
40
≤Simultaneousl y retracting
s
30
≤

Outrigger jackSimultaneousl y extending
s
55
≤Simultaneousl y retracting
s
40
≤Hoisting speed (at 4th layer, no load)
Main winch
m/min
130
≥Auxiliary winchm/min130≥

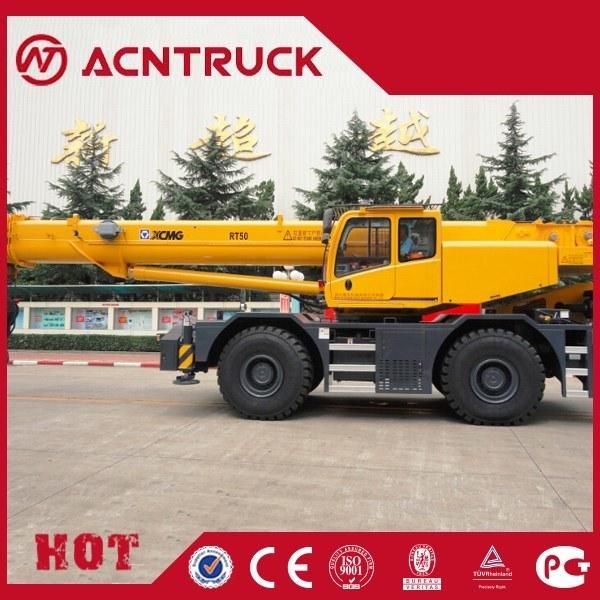

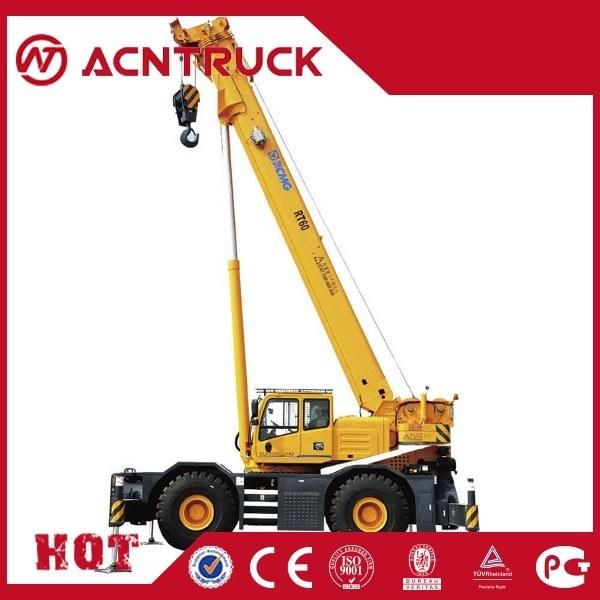

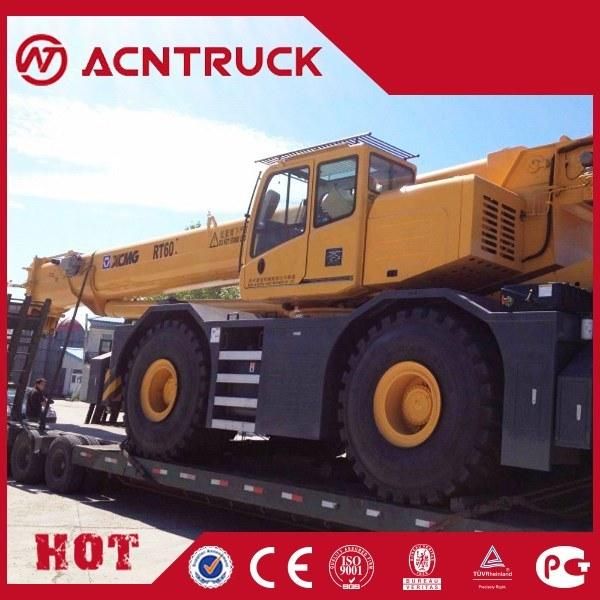

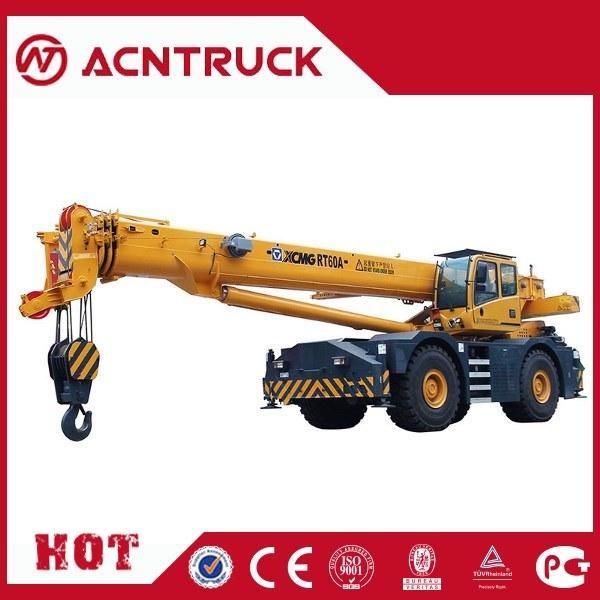

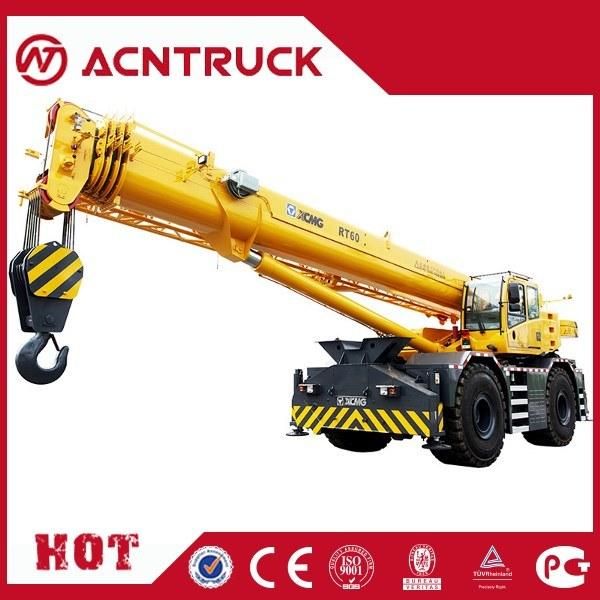

[Product Picture]
