Zoomlion 50ton Mobile Truck Crane Ztc500h552
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：2
- Crane Jib：Three-Arm
Base Info
- Model NO.：ZTC500H552
- Type：Folding
- Rated Loading Capacity：50000kg
- Max. Lifting Height：45.5m
- Span：6m, 6m
- Transport Package：Roro
- Trademark：Zoomlion
- Origin：China
- HS Code：8426120000
- Production Capacity：2000
Description
Item
Unit
Parameter
Max. lifting weight
ton
50
Max. lifting force in base arm
kN.m
1813
Max. lifting force in longest base arm
kN.m
1082
Max. lifting height in base arm
m
12.6
Max. lifting height in main arm
m
45.5
Max. lifting height in auxiliary boom
m
61
Max. speed in single-rope(primary winding)
m/min
135
Max. speed in single-rope(auxiliary winding)
m/min
125
Arm lifting time
s
50
Arm streching time
s
110
· Swing speed
r/min
0-22
Max. using altitude
m
2000
Max. traveling speed
Km/h
80
Gradeability
%
44
Min. turning diameter
m
24
· Min. Ground Clearance
mm
280
· Oil consumption per kilometre
L
41
Overall weight in traveling state
kg
41600
Overall weight
kg
41405
Front axle shaft load
kg
15600
Rear axle shaft load
kg
26000
Overall dimensions(length*width*height)
mm
14100*2650*3800
Cross leg distance
m
7.4
Length of legs lengthwise
m
6.05
Tail radius
mm
3890
Main boom length
m
11.6-45
Main boom elevation angle
m
-2-80
Auxiliary boom length
m
9.5 16
Auxiliary boom installation angle
°
0/15/30

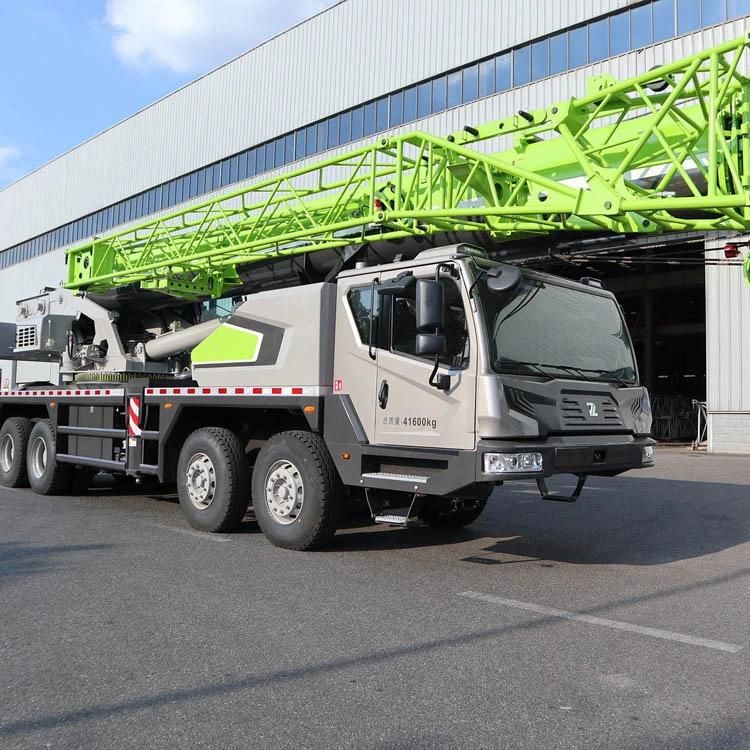

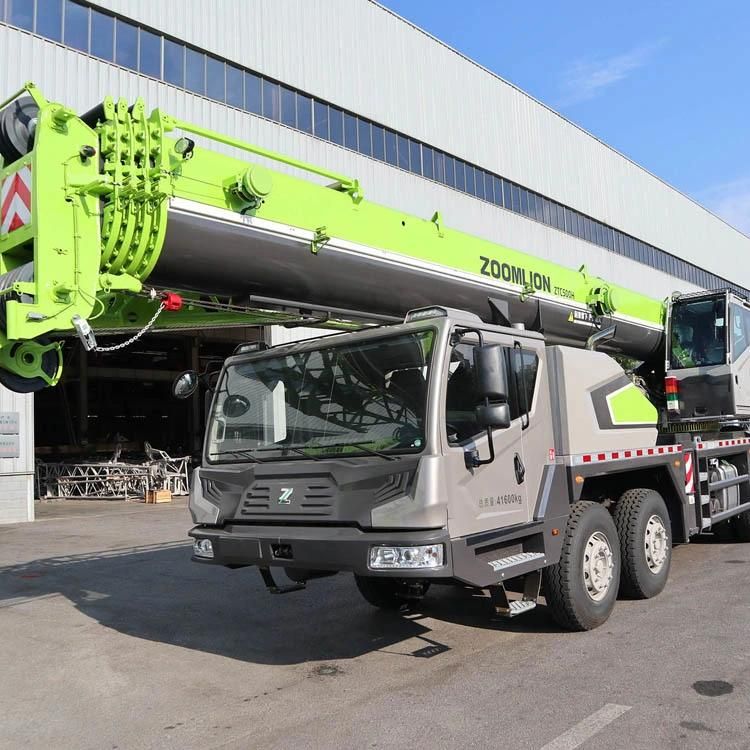

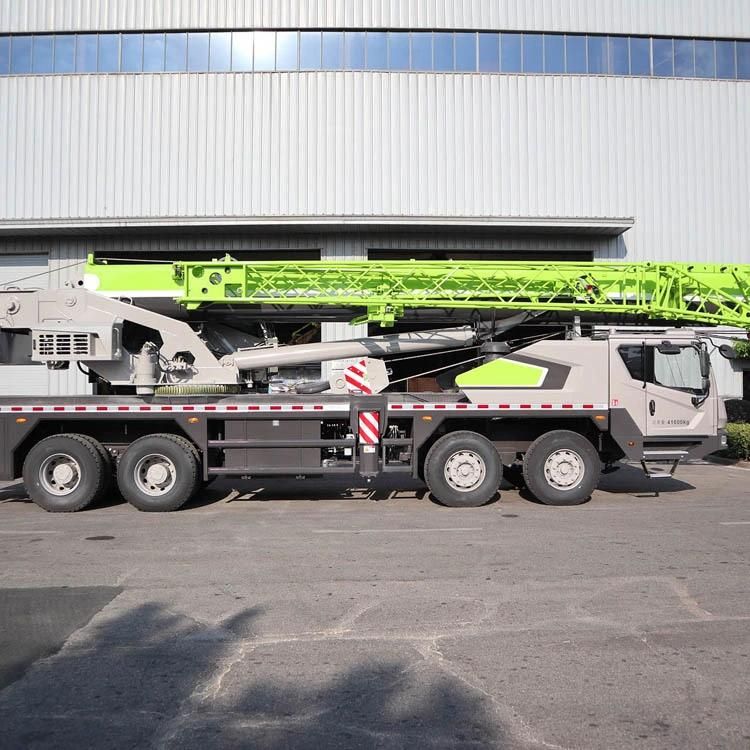

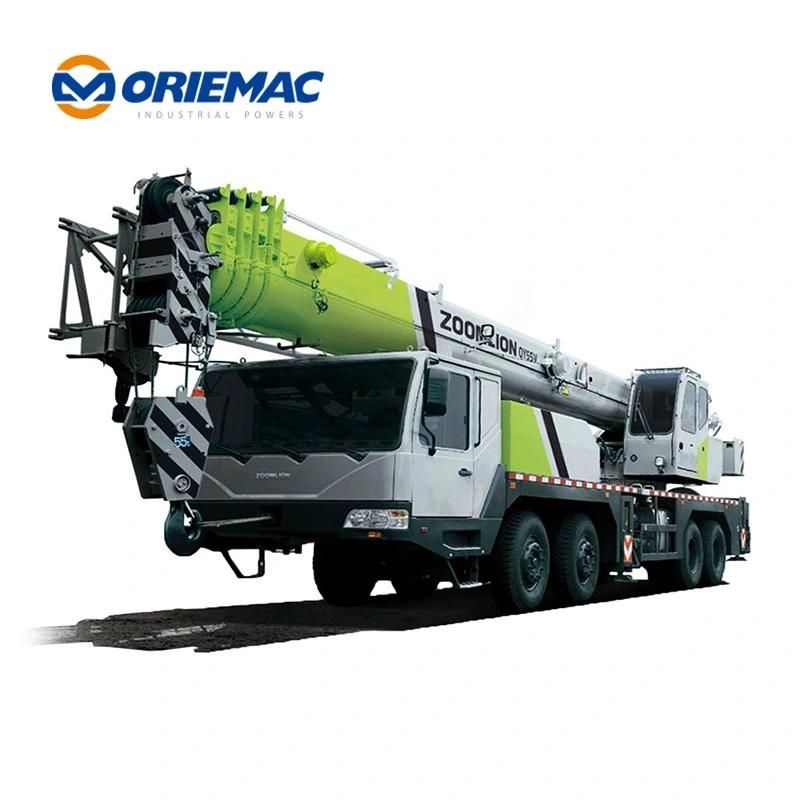

Picture show
