• Model NO.：TC300A
• Type：Straight Arm
• Max. Rated Lifting Capacity：30 T
• Max. Rated Lifting Torque of Basic Boom：1040 Kn,M
• Max. Rated Lifting Torque of Full Extend：596 Kn,M
• Max. Lifting Height of Main Boom：34 M
• Max. Lifting Height of Jib：34+8.7 M
• Overall Net Weight：30000 Kg
• Max. Single Rope Speed：130 M,Min
• Time of Telescoping Boom：55 S
• Time of Elevating Boom：35
• Max. Slewing Speed：2.4 Rpm
• Max. Travel Speed：80 Km,H
• Gradeability：40%
• Sections of Boom：4
• Transport Package：Nude, Container, Roro
• Specification：12790x2600x3400 mm
• Trademark：Liugong
• Origin：Guangxi, China
• HS Code：8705109200
• Production Capacity：500

Basic Info.

Model NO. TC300A Type Straight Arm Max. Rated Lifting Capacity 30 T Max. Rated Lifting Torque of Basic Boom 1040 Kn/M Max. Rated Lifting Torque of Full Extend 596 Kn/M Max. Lifting Height of Main Boom 34 M Max. Lifting Height of Jib 34+8.7 M Overall Net Weight 30000 Kg Max. Single Rope Speed 130 M/Min Time of Telescoping Boom 55 S Time of Elevating Boom 35 Max. Slewing Speed 2.4 Rpm Max. Travel Speed 80 Km/H Gradeability 40% Sections of Boom 4 Transport Package Nude, Container, Roro Specification 12790x2600x3400 mm Trademark Liugong Origin Guangxi, China HS Code 8705109200 Production Capacity 500

Product Description

30Ton Liugong Truck Crane 4 Sections TC300A 34M Lifting Height

Product Description

• High-strength U-shaped cross section boom.
• Luffing telescopic operation controlled independently by advanced post-compensate hydraulic technology.
• Ultra-long outrigger span ensures increasing stability.
• Effective mirror and rear view camera combinations improve overall visibility.

2.1 Frame

TC300A Truck Crane Technical Specification,crane,truck mounted crane

Self-designed and manufactured frame with all floors covered, optimized design of loaded structure, box-typed structure, made of high tension steel. Boxes in which outriggers are stowed lie between 2nd and 3rd axle and in the rear of the frame. Front and rear tow-hooks are available.


Specification

Model	TC300A
Max Lifting weight	30 t
Max. Lifting height	42.7 m
Max. Lifting moment	1040 kN.m
Engine model	D-Cum-mins ISDe 285 30
Engine power	210 kW
5-section boom	43 m
Min. turning diameter	24 m
Max. vehicle speed	80 km/h
Max. grade ability	40%
Max. rated torque	970 N.m
Dead weight in driving	30 t
Dimension	12790*2600*3400 mm

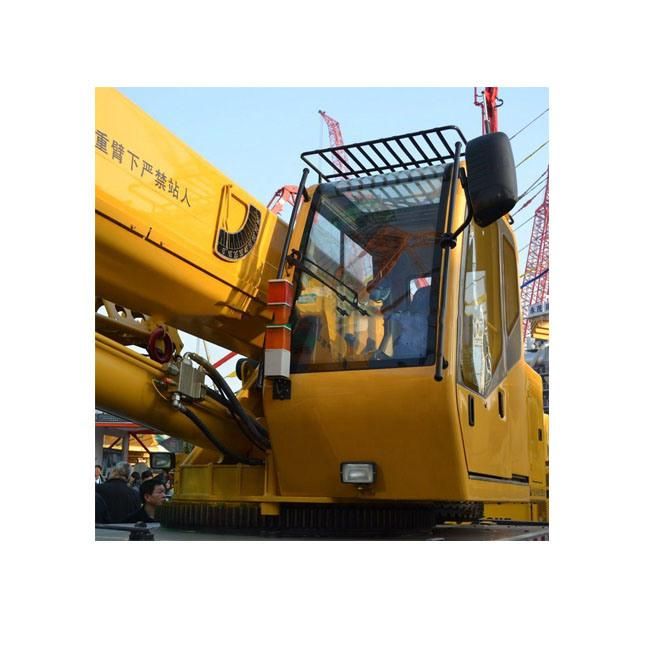

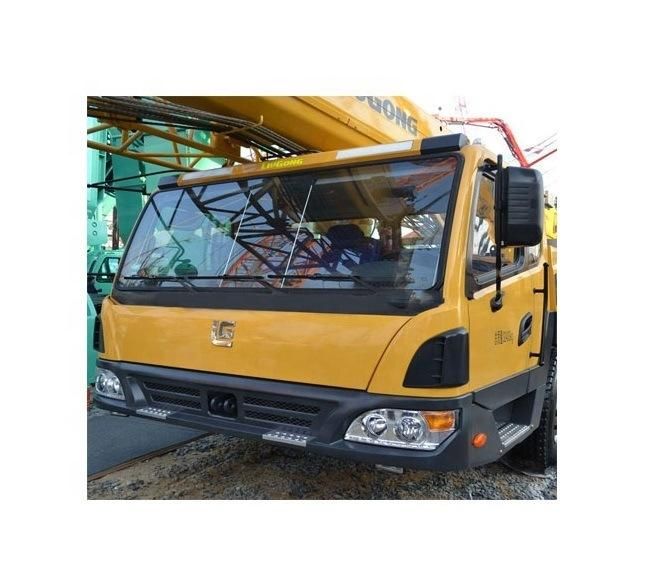

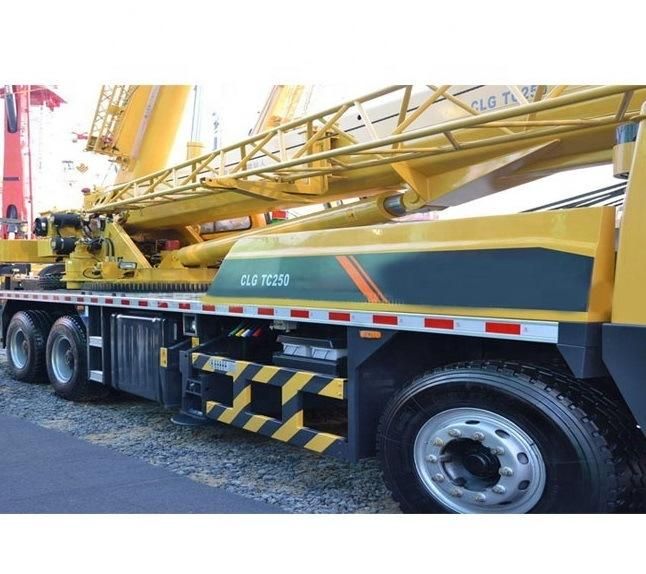

Product Photos
