Cheap Qy130K Truck Crane Basket Good Price
Newindu Construction Engineering (Shanghai) Co., Ltd.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：>16t
- Shaft Number：3
- Crane Jib：Three-Arm
Base Info
- Model NO.：QY130K
- Type：Straight Arm
- Max. Lifting Height：86m
- Rated Lifting Moment：4998kn.M
- Span：7.6m
- Transport Package：Nude Packing by Roro Shipment
- Specification：130ton
- Trademark：Newindu
- Origin：China
- HS Code：8705109100
- Production Capacity：100sets,Month
Description

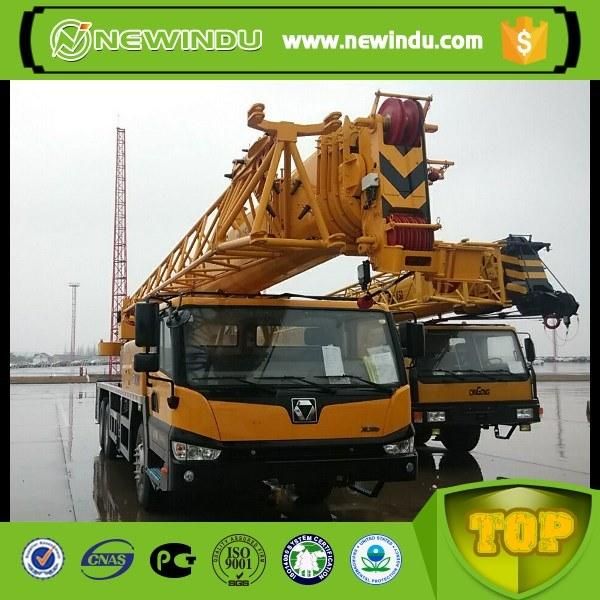

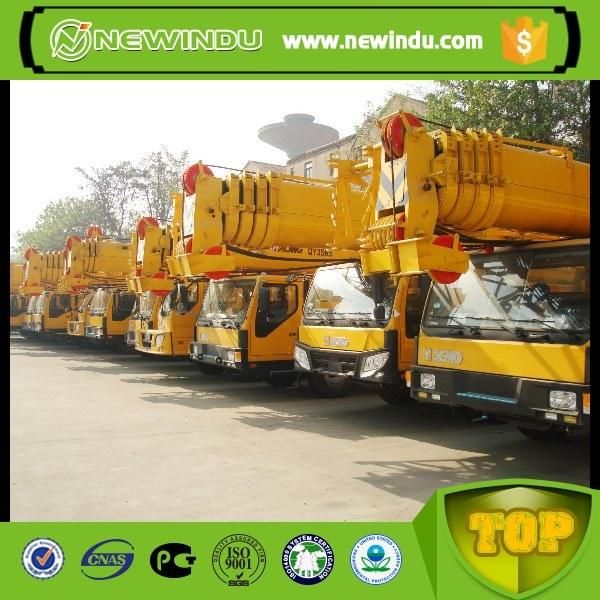

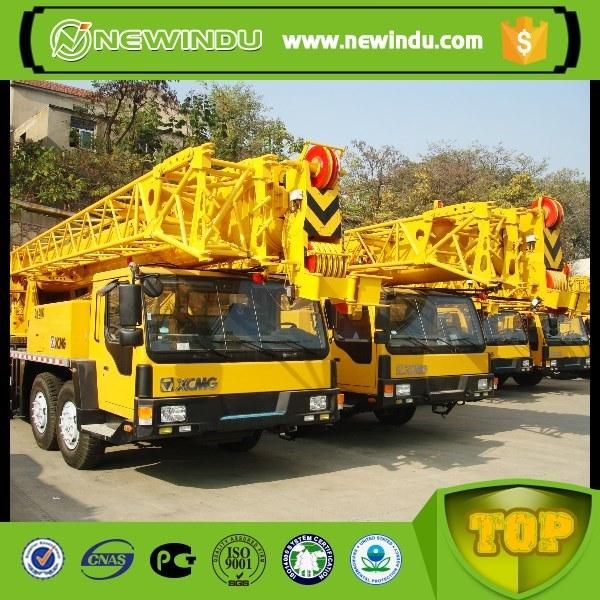

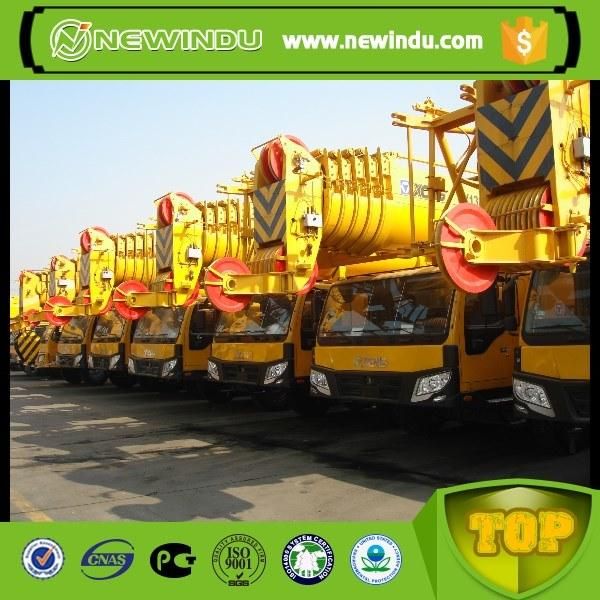

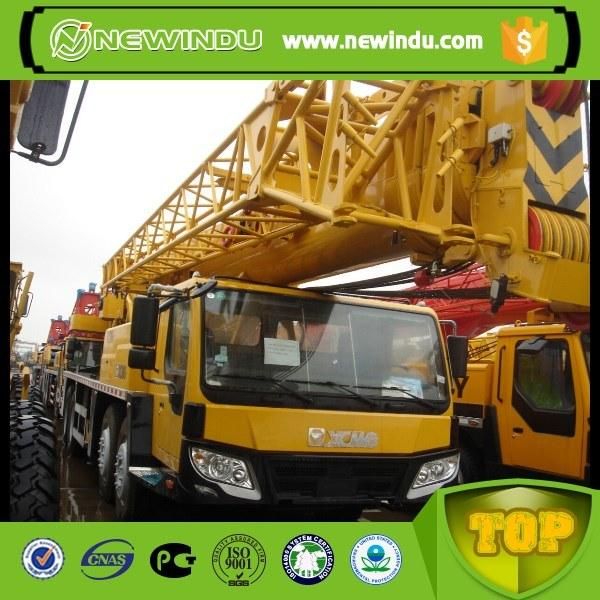

ClassificatoryItemUnitParameterOutline dimensionOverall lengthmm14950Overall widthmm3000Overall heightmm3950Axle baseAxle 1, Axle 2mm1420Axle 2, Axle 3mm2420Axle 3, Axle 4mm1875Axle 4, Axle 5mm1350Axle 5, Axle 6mm1400Wheel basemm2610/2307MassTotal mass in travel statekg62000Axle loadAxle 1, Axle 2kg8800/8800Axle 3, Axle 4kg9200/12700Axle 5, Axle 6kg12700/9800PowerCrane superstructure engineRated powerkw/(r/min)162/2100Rated torqueN.m/(r/min)854/1400Rated speedr/min2100Crane carrier engineRated powerkw/(r/min)390/1800Rated torqueN.m/(r/min)2400/1080Rated speedr/min2000Travel performanceTravel speedMax. travel speedkm/h70Min. stable travel speedkm/h2.1Min. turning diameterm24Min. ground clearancemm275Approach angle(°)23Departure angle(°)14Braking distance (at 30km/h)m≤ 10Max. grade-ability%40Fuel consumption for 100kmL80Product photos
