• Model NO.：SATC10
• Maximum Lifting Weight：>10t
• Installation：Overall Rapid Disassembly
• Moving Type：Fixed
• Type：Top-Slewing Crane
• Application：Construction Usage
• Tower Crane Type：Topless Tower Crane
• Sling Type：Chain
• Lifting Moment：130 T.M
• Fixed Form：70 M
• Transport Package：Naked in Container
• Specification：CE
• Trademark：Super-above
• Origin：Jiangsu, China
• HS Code：8426200000
• Production Capacity：1000PC,Year

TypeXGT8020-16Basic height60MMax height222MLength80/75/70/65/60/55/50/45/40Max load16tTip load2.0/3/3.6/4.3/4.95/5.7/6.7/8/9.3Section size2000×2000×3000Section materialAngle steel/FoldingXGT8020-16ItemsMechanismSpeed(m/min) Rope capacityMotor(Kw)Hoist mechanism75JLF402 multiplying power0-90804M               >804M*75  4 multiplying power0-45  Trolleying mechanism7.5JXF8C0-65m/min7,5Slewing mechanismJH12CT60-0.65r/min3×7.5TravellingRT0-25m/min4×5.2Main Supply380V(±10%)/50Hz*Gross Power(Excluding climbing and travelling):105Kw


Feature & advantage

1.suitable for all kinds of construction projects and can work under all kinds of work condition.
2.It has a high working speed, good speed-adjusting performance, steady operation, and high efficiency.
3.The crane has a complete set of safety devices, which can guarantee the safe and high-efficiency operation of the
equipment.
4. Three-speed motor and mono-speed ratio decelerators are applied in the lifting construction, which enables heavy load
low speed
and light load high speed.
5.Planet gear decelerator is applied in the circumgyrating structure, together with moment-limiting hydraulic coupler, which
can realize high load capacity, steady starting, and reliable operation.

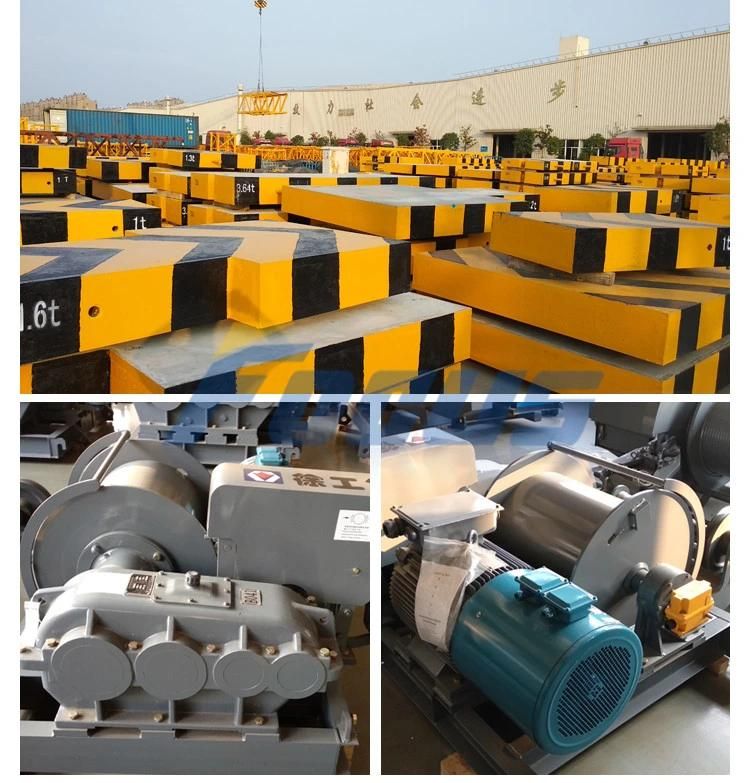

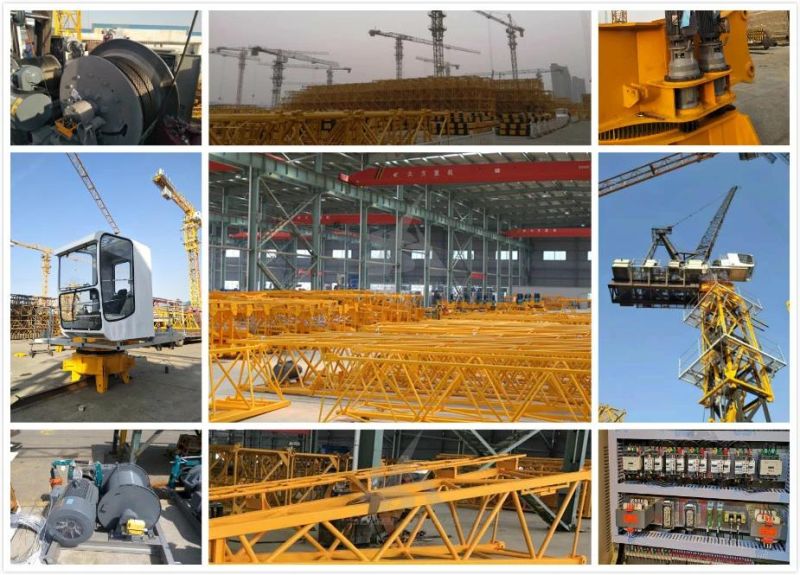

Our Factory

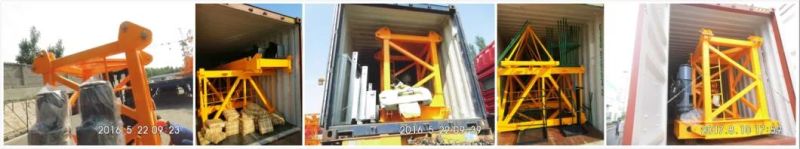

Packing & Delivery
