• Model NO.：QY20B. 5
• Dead Weight in Travel State：26020kg
• Transport Package：Comply with Export Packaging Requirements
• Specification：12400*2500*3300mm
• Trademark：XCMG
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：10000 Units,Year

Item  UnitDimensionsOverall length12400mmOverall width2500mmOverall height3300mmWeightDead weight in travel state26020KgFront axle load  6900KgRear axle load19120KgPowerEngine modelSC8DK260Q3/WD615.327/SC8DK260Q3 Engine rated output196/2200  198/2200  192/2200Kw(r/min)Engine rated torque1000/1400  1150/1100-1600  1000/1400N.m(r/min)TravelMax.travel diameter75Km/hMax. turning diameter20mMax. ground clearance272mmApproach angle21.Departure angle11.Max. grade ability35%Fuel consumption of 100km35LLifting  performanceMax. total rated lifting load20tMin. rated working radius3mTurning radius at swing table tail3.385mmMax. load moment of base boom860Kn.mLifting height of base boom10.06mLifting height of full-extended boom32.76mLifting height of full-extended boom+ Jib42.12mOutrigger longitudinal distance span4.97mOutrigger lateral distance span5.4m
 Working speedBoom  lifting  time75sBoom full lifting    time95sMax. slewing speed3r/minMax. speed of main hoist mechanism with full load/empty(single rope)65/100m/min Max. speed of auxiliary hoist mechanism with full load/empty(single rope)65/100m/min

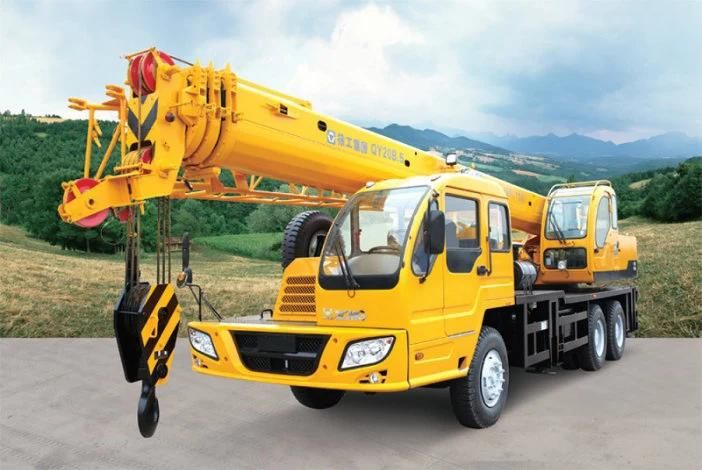

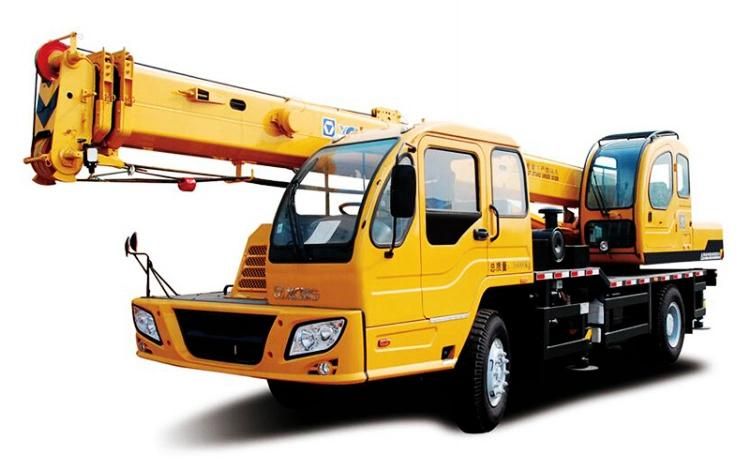

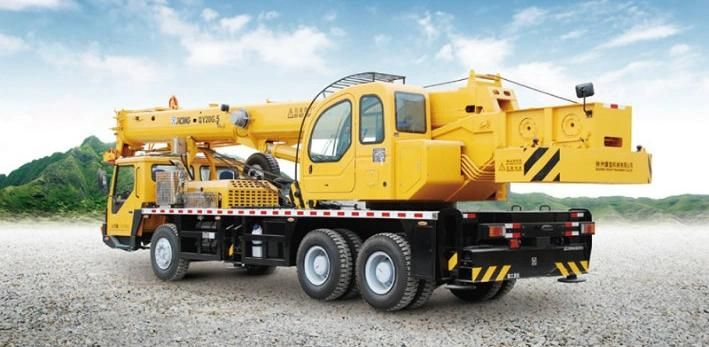

[Product Picture]





[Company Information]

[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
